Sungold 100 Watt Solar Panel TF-D-100W

The 100 watt solar panel features PERC tile cells with a high conversion efficiency of up to 22%, making it an ideal choice for RV living. With strong impact resistance, this panel can effectively protect the battery.

In addition, the SG-TF-D-100W panel is highly flexible, thanks to its ETFE surface material. This material provides excellent weather resistance, salt spray resistance, corrosion resistance, and aging resistance, making it durable and long-lasting.

– Polymer composite material
– 5 years warranty
– strong impact resistance

make the most of every sunlight

Edit Content

Exclusive Patented Material

Lighter And Thinner

Easy To Use

Shingled PERC technology

Exclusive Patented Material

The TF-D-100W flexible solar panel kit uses the exclusive patented material of Sungold. This material has great improvement in weather resistance, salt spray resistance, corrosion resistance and aging resistance. The absorption of impact force will be enhanced and the damage to the battery will be reduced.

Lightweight and flexible

Thickness is only 2mm, weight is 1.65kg,Adopt Sungold patented material, maximum bending arch height up to 45mm,very flexible and suitable for various application scenariopanels can be used, for example, they can be hung on the wall for a long time.

Easy To Use

TF-D-100W flexible solar module has excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With a Y-shaped connecting line, multiple panels can be easily connected in series and parallel.

Shingled PERC technology

Shingled-cell technology eliminates cell spacing by overlapping small cells. Therefore more cells can be packaged in the same module area, which directly leads to an increase in module power.Shingled modules can produce more electricity in the same amount of time.The heat spot effect was significantly reduced

Sungold flexible 100 watt solar panel ideal

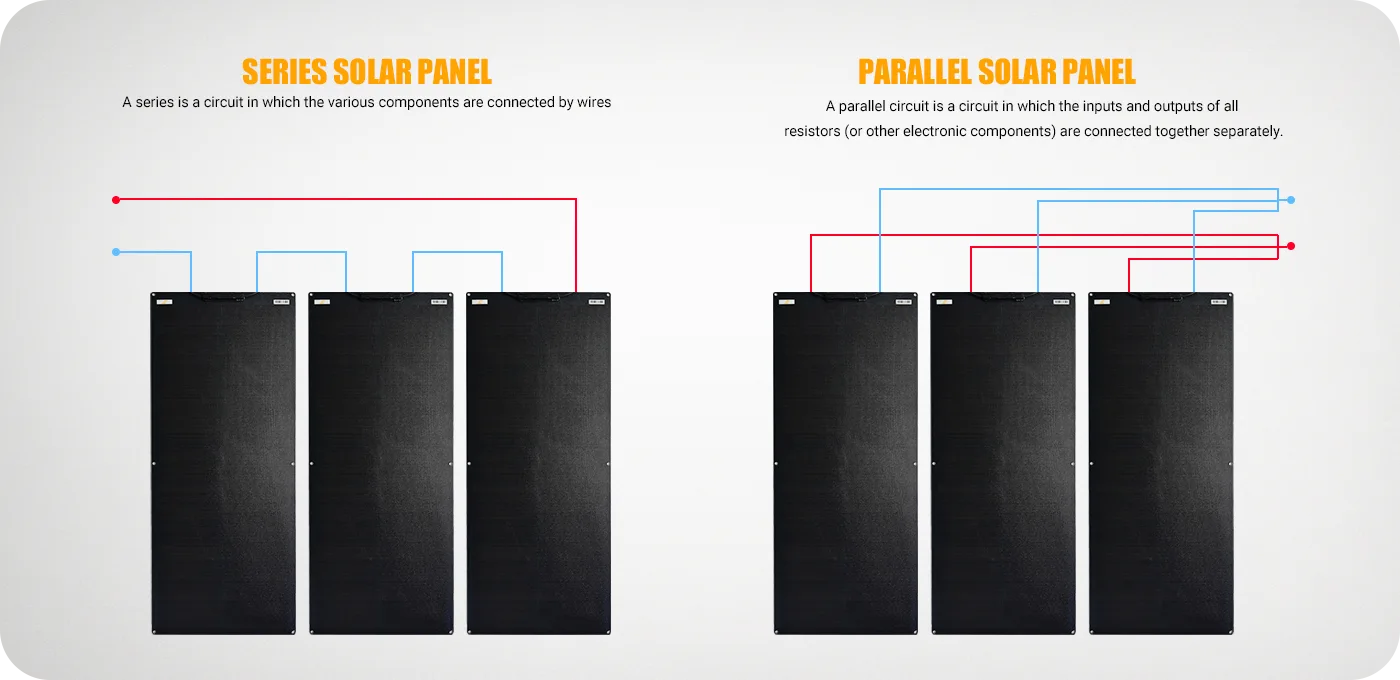

This flexible solar panel supports both series and parallel connections, so you can expand your solar panel system to meet a variety of needs.

The 100 watt solar panel is suitable for 12 volt battery charging. Multiple panels can be connected in series to charge 24/48 volt batteries.

100 watt solar panel is compatible with lead acid, lithium-ion ternary, and lithium iron phosphate batteries and needs to be used with a controller to protect the battery.

Sungold flexible 100 watt solar panel ideal

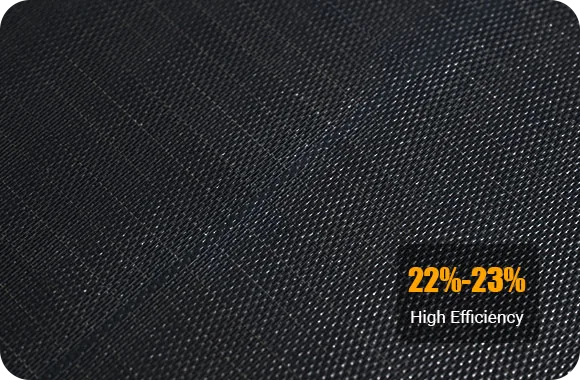

HIGH EFFICIENCY

Grade A monocrystalline silicon solar cells provide high conversion efficiencies of up to 22%-23%. 100 watt solar panel’s narrower busbar space and more cell receiving surface result in lower costs and increased PV module output. The 100 watt solar panel ensures a lower risk of microcracking and a longer lifespan.

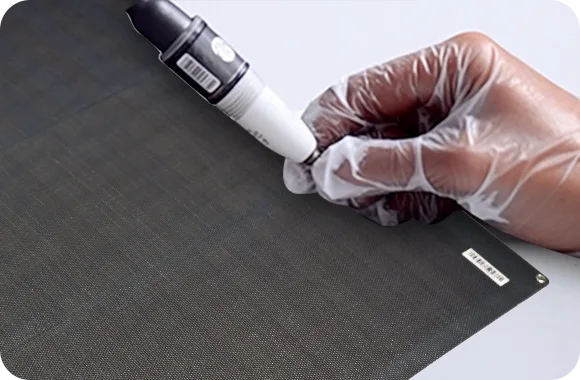

EASY TO INSTALL

The 100 watt solar panel is easy to transport, install, hang, and remove. Metal pre-drilled holes and PV solar connectors help you install them easily and quickly.

EXTREMELY FLEXIBLE

The 100 watt solar panel meets a wide range of applications where standard solar panels are inconvenient to install, and is suitable for off-grid applications including trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, RV’s, camper vans, oceans, residential rooftops, or any other irregular surfaces.

EXCELLENT QUALITY

The flexible 100 watt solar panel is made of ETFE material, which has higher light transmittance and longer service life than ordinary materials. The solar back panel dissipates heat well, is waterproof, high temperature resistant and easy to clean.

Edit Content

Can solar panels work on cloudy days?

Yes. It’s just that the power generation efficiency of solar panels will be reduced.

Can I walk on TF-S-120w flexible solar panels?

Yes. TF series flexible solar panel is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.

Where can I use this product?

This 120W flex solar panel is suitable for RVs, vans, caravans and yachts. It can also be installed on balcony to provide power to your home

What is the function of the unique patented material used in TF series products?

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

How much power will a 120 watt solar panel produce?

Most 120W solar panels have a nominal rating of 12 volts, but it can reach 18 volts during a charge. By dividing watts by volts we can figure out the amps. A 120 watt solar panel at 18 volts produces 6.6 amps an hour under normal conditions

What can you do with a 120 watt solar panel?

Widely application: Perfect for RV’s, boats, cabins and back-up power! Multiple Sungold 120 Watt Solar Panels can be wired in parallel to increase charging current (amps) to a 12 volt battery.

Not sure what you needs

There are three things we need to determine what you will need for your solar generator

What type of solar panel do you need?

What size of solar panels and batteries will be needed

What is the total watts you will be needing and how with your generator be used?

Leave a Message

If you are interested in our products and want to know more details, please leave a message here and we will get back to you as soon as possible.

Sungold 100 Watt Solar Panel TF-D-100W

Menu

Sungold 100 Watt Solar Panel TF-D-100W

Sungold flexible 100 watt solar panel ideal

Sungold flexible 100 watt solar panel ideal

HIGH EFFICIENCY

EASY TO INSTALL

EXTREMELY FLEXIBLE

EXCELLENT QUALITY

Maximum power(Pmax)

Open-circuit voltage(Voc)

Voltage at Pmax(Vmp)

Short-circuit current(Isc)

Current at Pmax(Imp)

Cells efficiency(%)

The maximum system voltage

Power temperature coefficient

Voltage temperature coefficient

Current temperature coefficient

Output power tolerance

Operating temperature

Weight

Size

Warranty
