BXF Plus series Portable Photovoltaic PanelS
Half The Weight, Twice The Flexibility ，The Portable Solar Panel Built to Bend Without Breaking

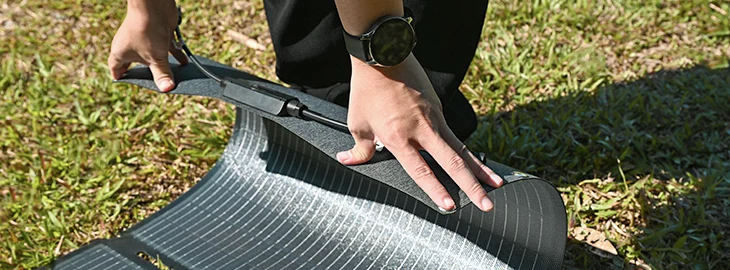

Flexible & Bendable
IP67 Waterproof
Innovative PVF Material
Portability
50% Lighter Durable & Robust

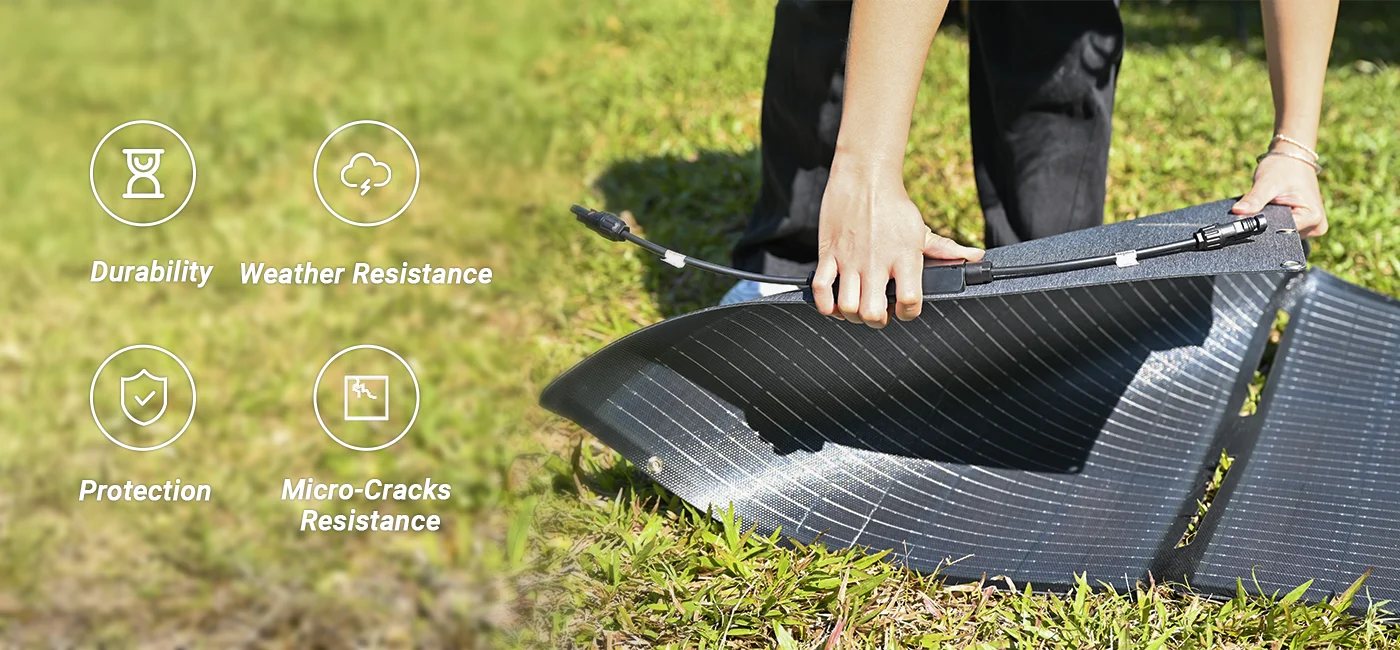

Seamless Soft Design, Effectively Reducing Micro-Cracks
This solar panel uses integrated lamination technology and high-quality PVF materials for superior durability and environmental resistance. It offers excellent weather and UV protection, enhanced by a fiberglass composite and optimized lamination that prevents micro-cracks, ensuring reliability in harsh conditions.
Understand The Technology
Reduced Risk of Micro-Cracks
Utilizing integrated lamination technology and high-quality PVF materials, the Sungold BXF-Plus portable solar blanket demonstrates exceptional environmental adaptability and durability. The specialized fiberglass composite and optimized lamination process enhance the protection of the solar cells, effectively preventing micro-cracks and ensuring long-term stability in harsh environments.
Efficient Anti-Hot Spot Technology
By employing a 4-cut cell process, the current of each cell is reduced to a quarter of the original, complemented by full-tabbing welding techniques to ensure uniform distribution of current across each solder joint, thereby minimizing hot spot issues. This technology enhances the resilience and reduces the internal resistance of the solar cells, controlling hot spot phenomena and ensuring the reliability and efficiency of the components.
Integrated Lamination Design
The BXF-Plus-C series portable solar blanket features an integrated lamination molding process that enhances impact resistance and significantly reduces weight. The new packaging method effectively prevents water ingress, elevates the waterproof rating to IP67, and improves both the visual consistency and portability of the product.
| BXF plus-2x50W | BXF plus-3x50W | BXF plus-4x50W | |
|---|---|---|---|
| Model |  |  |  |
| Folding Number | 2pcs | 3pcs | 4pcs |
| Cell Efficiency | >22.70% | >22.70% | >22.70% |
| Max Power Voltage | 17.4V | 17.4V | 17.4A |
| Max Power Current | 5.75A | 8.63A | 11.5A |
| Open Circuit Voltage | 20.4 | 20.4 | 20.4 |
| Short Circuit Current | 6.03A | 9.05A | 12.07A |
| Cell type | Monocrystalline | Monocrystalline | Monocrystalline |
| Weight | 2.2KG | 3.2KG | 4.3KG |
| Expand Size | 1085*595*3mm | 1617*595*3mm | 2154*595*3mm |
| Folded Size | 595*570*30mm | 595*570*40mm | 595*570*45mm |
| The maximum system voltage | 200V DC | 200V DC | 200V DC |
| Surface material | PVF | PVF | PVF |
| Color | Grey | Grey | Grey |
| Laminating | integrated solar panel | integrated solar panel | integrated solar panel |
| Remarks | 3000mm Cable Length |2464 14AWG/2C Twin Cord (Shell: Black)|Connector: MC4|Velcro Tie Downs | 3000mm Cable Length |2464 14AWG/2C Twin Cord (Shell: Black)|Connector: MC4|Velcro Tie Downs | 3000mm Cable Length |2464 14AWG/2C Twin Cord (Shell: Black)|Connector: MC4|Velcro Tie Downs |
portable photovoltaic panels BXF-Plus

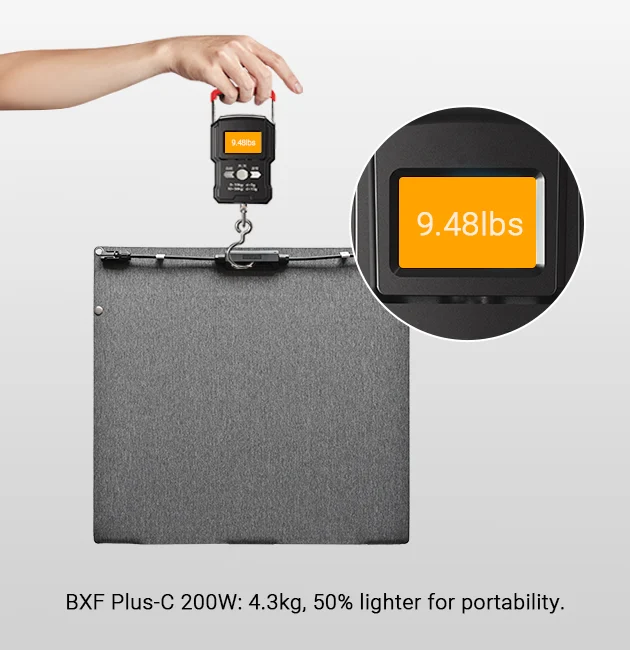

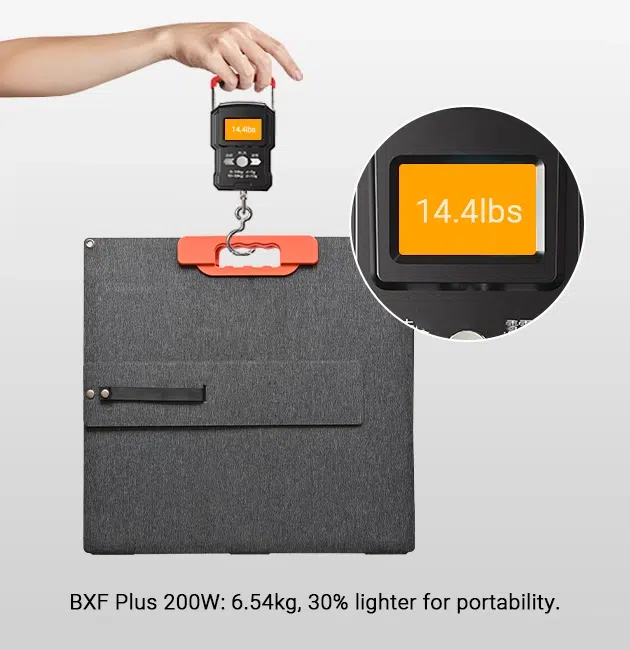

50% Lighter Weight
The BXF-Plus series utilises innovative surface materials and Sungold polymer composites to maintain the same power output at half the weight of traditional integrated products. For example, the 200-watt BXF-Plus-C weighs only 4.3kg, 50 per cent of the weight of traditional integrated models on the market, making it more portable.

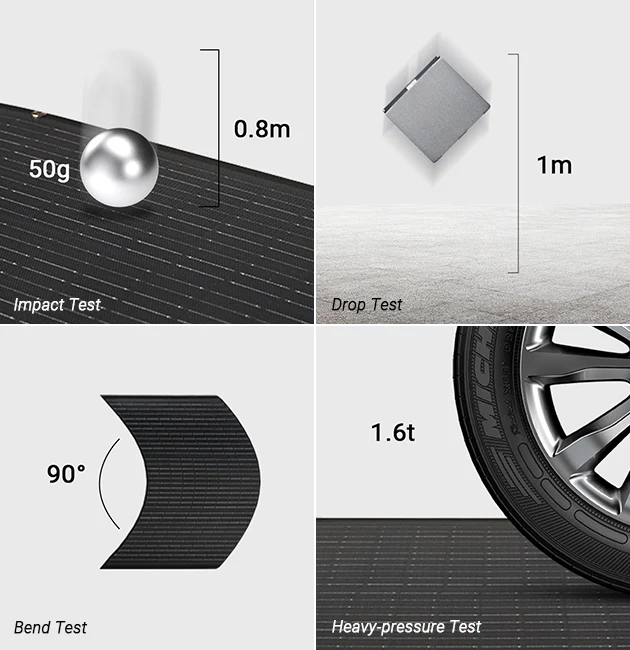

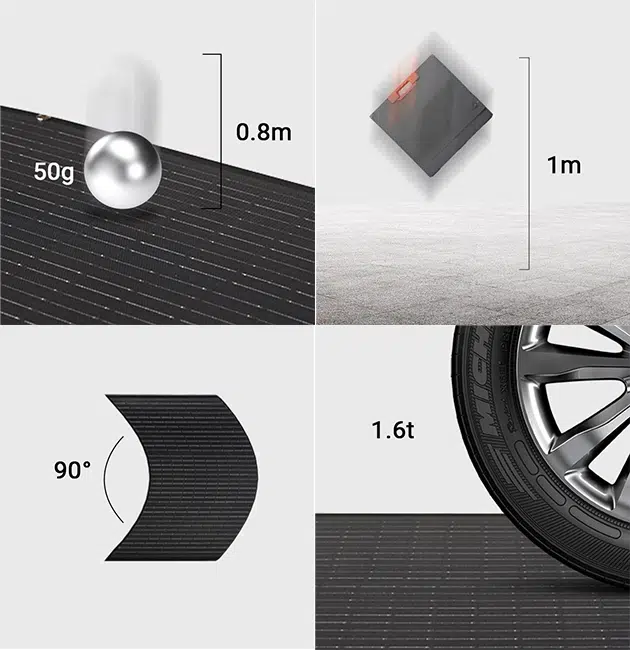

Standard Tests-BXF-Plus SERIES
BXF-Plus series portable solar blanket has undergone a series of rigorous performance and durability tests, including UV resistance, damp heat, freeze-thaw, thermal cycling, folding, hail impact, and wet leakage and insulation tests. It has successfully obtained the EU CE-EMC certification, EU RoHS certification, and U.S. FCC certification.

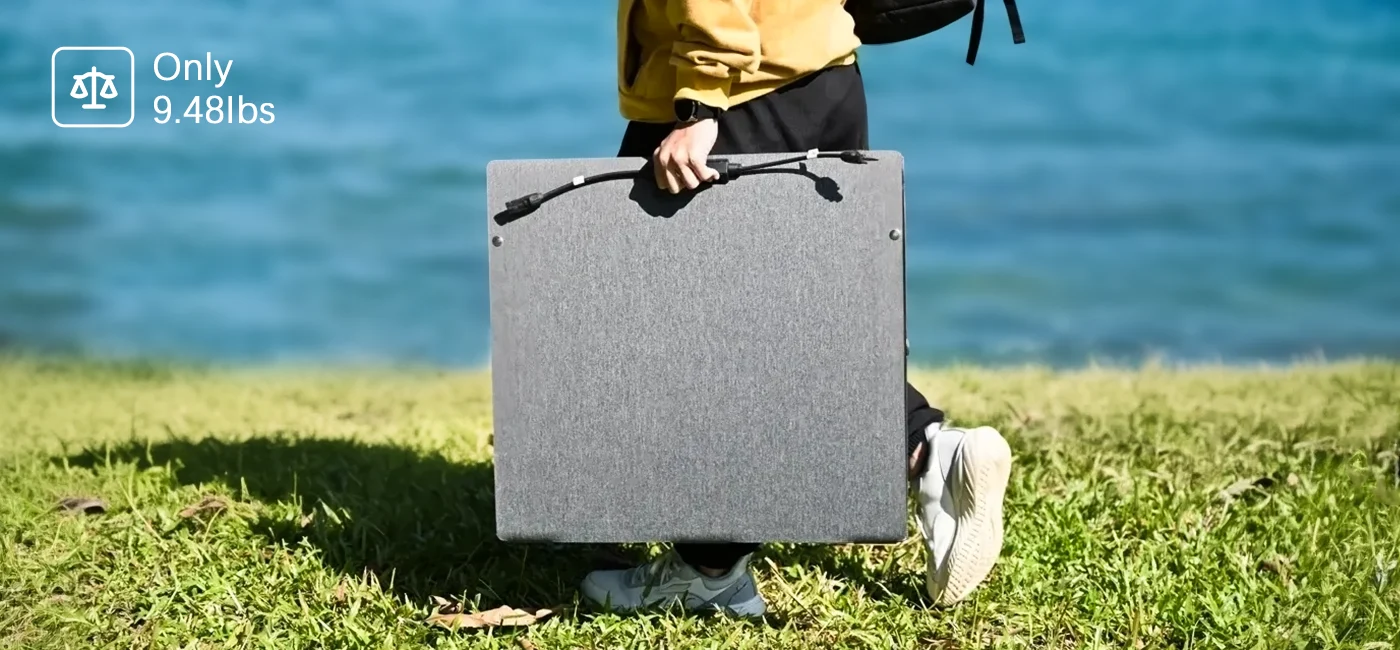

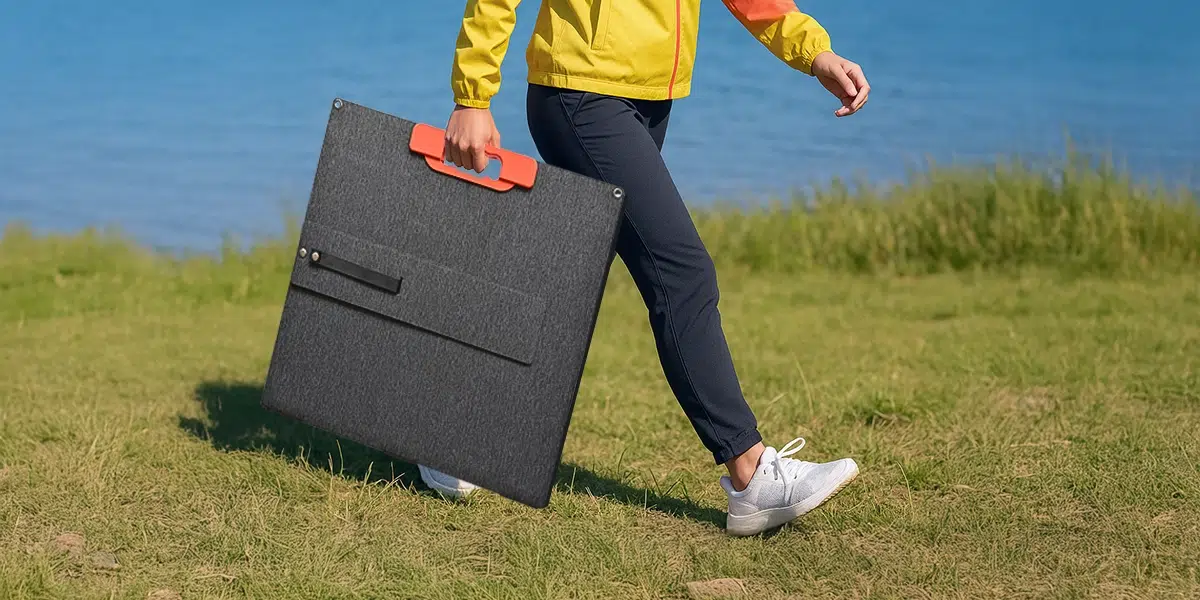

Same Power Half the Weight
The BXF-Plus-C series uses PVF surface materials and Sungold fiberglass composites, which keep the power output the same while reducing the weight to just half that of conventional integrated products. For instance, a 200W BXF-Plus-C weighs only 4.3 kg, making it much easier to carry.

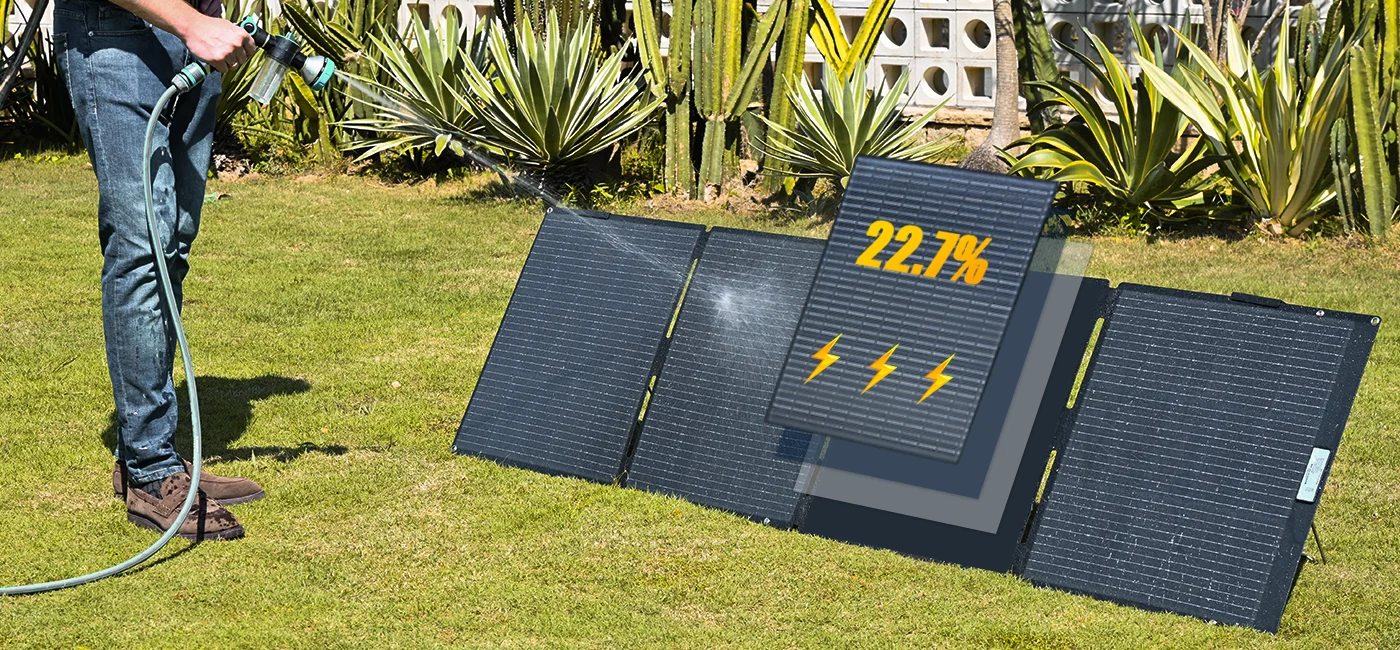

IP67 Certified: Built to Last with Efficiency 22.7%
Utilizes top-tier monocrystalline cells that achieve up to 22.7% efficiency, ensuring maximum energy conversion. The robust IP67rating guarantees dust and water resistance, significantly enhancing durability and extending the solar panel’s lifespan. It comes with a 1-year warranty and is designed to perform optimally for over 5 years.
Learn More About Sungold's Products
Portable
Solar Panel
Portable solar panel is lightweight and compact, making them easy to carry wherever you go.
Learn More
Rigid
Solar Panel
Rigid solar panel is time-proven products, and it is the iconic product in the solar panel family.
Learn More
Folding
Solar Panel
Folding solar panel is foldable with mounting brackets for easy use and installation.
Learn More
Frequently Asked Questions about bxf-plus portable portable photovoltaic panels
Can Portable Solar Panels Power a House?
YES,Power rating: If the combined power rating of all the portable solar panels in your array meets or exceeds your electricity requirements, then under ideal conditions you can power your home. This means that in full sunlight, the solar panels will be able to generate enough power to meet your needs.System Design: When designing a solar system, it is important to ensure that the rated capacity of the inverter and batteries can handle the maximum output of the solar panels to avoid overloading and potential equipment damage.
Are Portable Solar Panels Worth the Cost?
Ultralight portable solar panels are a great option if you want clean, renewable power. They are very lightweight, foldable, bendable, portable and easy to install anywhere there is sunlight. Another advantage of portable solar panels over fixed installations is that you can easily adjust the position and tilt during the day to maximise direct sunlight.
How Long Do Portable Solar Panels Last?
The lifespan of portable solar panels is affected by a number of factors, including the photovoltaic materials used, the manufacturing process and the quality of construction. Since these panels are required to operate in a natural environment, high-quality portable PV modules are usually highly durable, with a lifespan of 5 years or more.
It is important to note that portable solar panels differ significantly from traditional glass PV modules in terms of application scenarios and therefore performance and design requirements. Each of these two types of PV modules is suitable for different usage needs and environmental conditions.
How Efficient Are Portable Solar Panels?
Solar panel efficiency is a metric determined under standard laboratory test conditions (STC). It measures how much electricity a photovoltaic (PV) module can produce per square metre in direct sunlight. The most efficient portable solar panels use monocrystalline silicon PV cells with an efficiency rating of 23-25%. Keep in mind that STC is rarely achieved in the real world. This is because the performance of solar panels can be affected by a variety of factors, including temperature, light angle, shadows, dust and pollution. These factors usually result in actual efficiencies that are lower than STC efficiencies.
How Much Power Can Get from Portable Solar Panels?
Like photovoltaic (PV) solar panel efficiencies, portable solar panel power ratings are determined in the lab under ideal standard test conditions (STC), which include solar irradiance equivalent to 1,000 watts per square metre – the equivalent of direct afternoon sunlight. Clouds, shading and temperature can all negatively affect power generation. It is safer to assume that a PV module generates 75 per cent of its rated power during the day rather than relying on its 100 per cent capacity.
