Sungold flexible shingled modules LEE-M2-270W
270W flexible
Very thin and lightweight

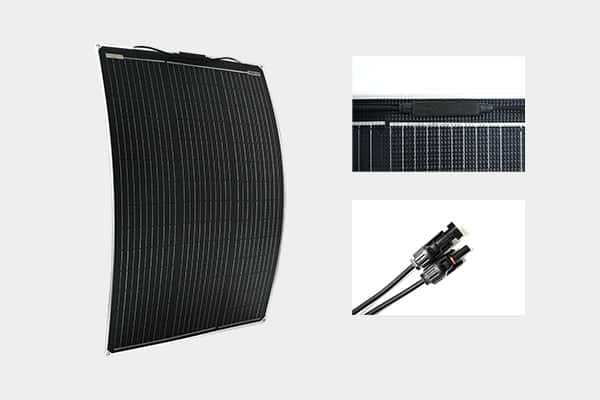

Can be self-installed without the need for additional tools.
What are flexible solar panels for RV?

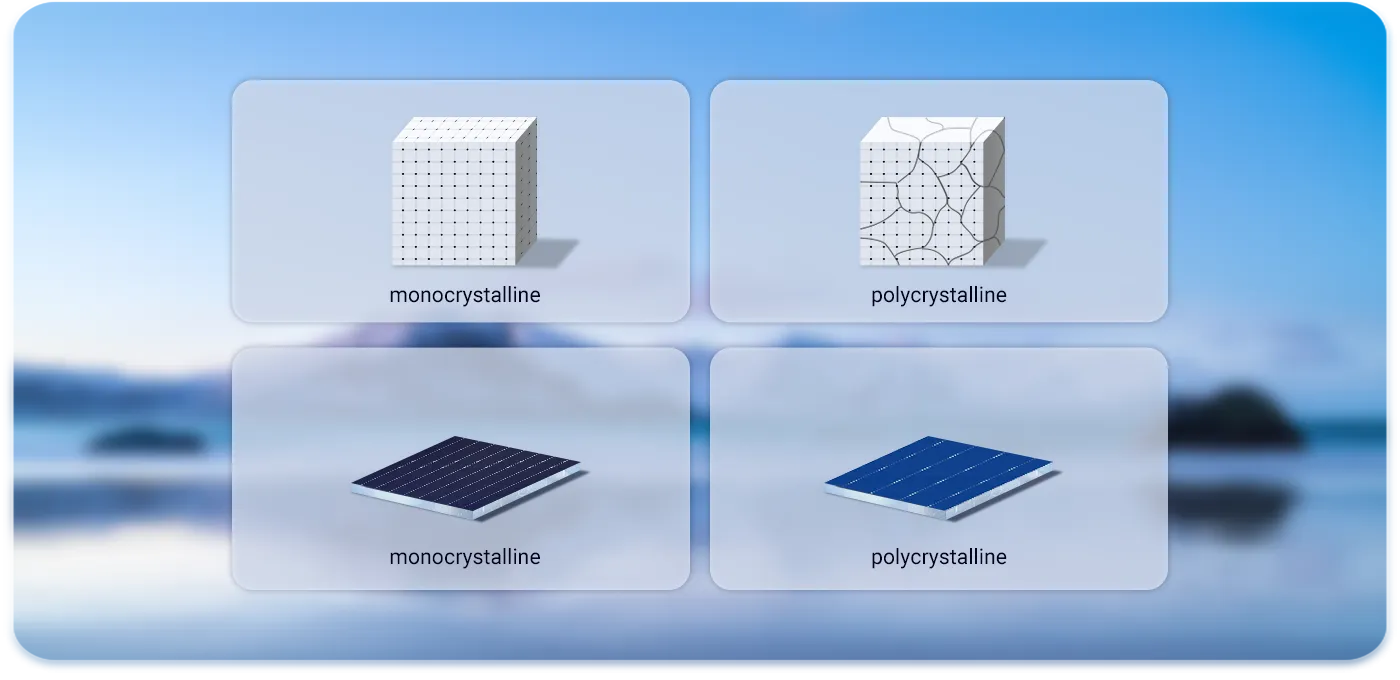

What is the difference between monocrystalline and polycrystalline solar panels?

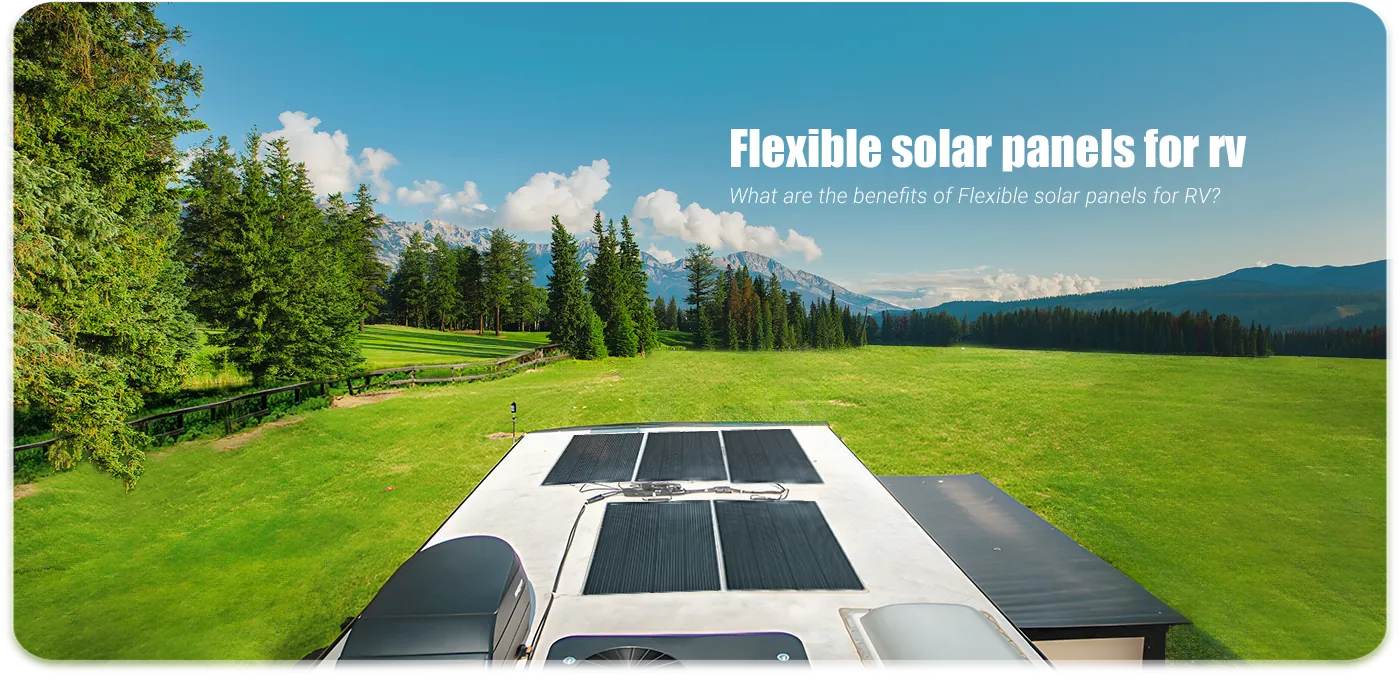

What are the benefits of Flexible solar panels for RV?
Can you walk on flexible RV solar panels?

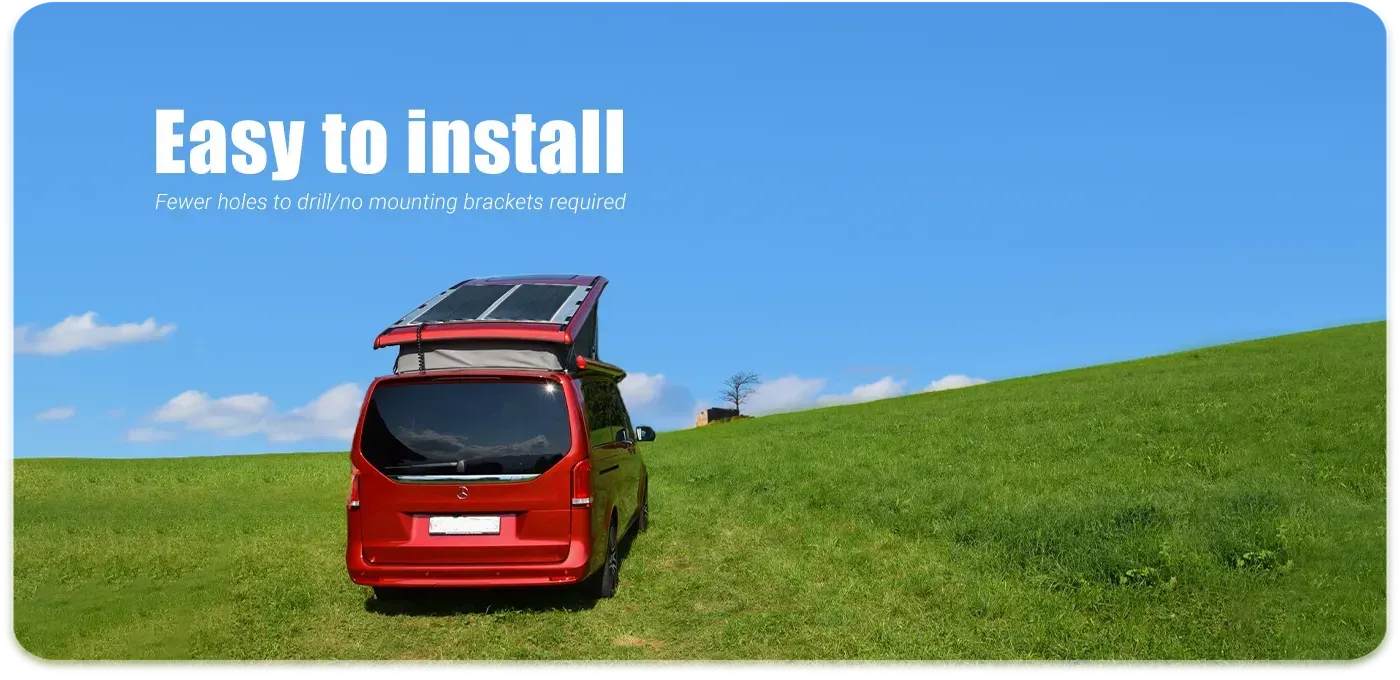

How do I install flexible solar panels on my RV?
Sungold LEE Series - Flexible High Efficiency Solar Panels
This is an ultra-light, ultra-thin, and highly flexible solar panels for RV, which are particularly suitable for curved surfaces due to their flexibility. The panels are textured to better capture rather than reflect sunlight.
Maximum power(Pmax)
270W
Open-circuit voltage(Voc)
48.9V
Voltage at Pmax(Vmp)
41.8V
Short-circuit current(Isc)
6.78A
Current at Pmax(Imp)
6.46A
Cells efficiency(%)
22.70%
The maximum system voltage
200V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
+0.04%/℃
Output power tolerance
±3%
Operating temperature
-20~75℃
Weight
8.4kg
Size
1790*780*4mm
Warranty
3 years
To pursue better high weather resistance, high salt spray resistance, high corrosion resistance, and high aging resistance, LEE series solar panels especially uses the design of double-sided ETFE, suitable for marine life.
The use of LEE series solar panel is recommended for yachts, RVs, offshore monitoring, off-grid systems for seaside buildings, plateau equipment, plateau camping, and outdoor travel.
If the modules are exposed to the sun for a long time, the cells are easily exposed to ultraviolet rays and the edges turn yellow, which is a normal phenomenon.
3 years warranty. LEE series flexible solar panels have service life of 15 years
Be careful not to cover the flexible solar panels in a large area during use, which will cause hot spot effect and damage the solar cells.
