TF-M/S
TF-D

Edit Content

TF- M/S

TF-M/S black solar panels use conventional soldering technology as well as high-efficiency monocrystalline or Sunpower solar cells.

High efficiency

High impact resistance

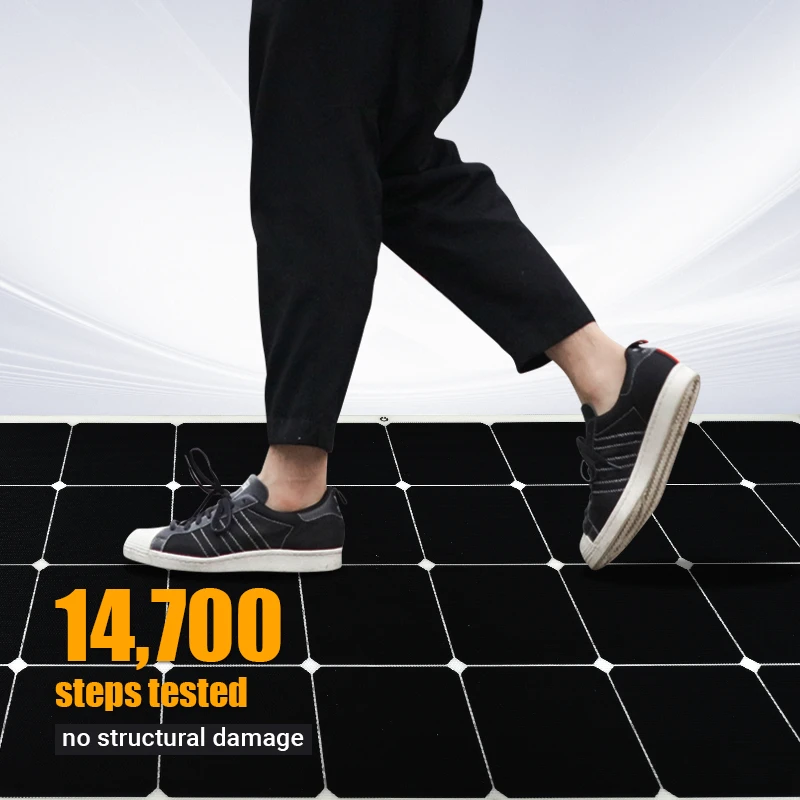

Stepping resistant

6-year warranty

Waterproof and durable

New technology, stronger and more durable.

TF M/S

Engineered for Endurance

Crafted with Sungold’s unique patented material, the TF M/S Series offers superior durability and performance, no matter the environment. These panels are resistant to salt spray, extreme weather, and physical stress—ensuring your investment is protected.

Backed by a 6-Year Warranty

Trust in long-term reliability. Our advanced design and materials allow us to offer a 6-year warranty, giving you and your customers peace of mind.

Best flexible solar panels TF-M/S

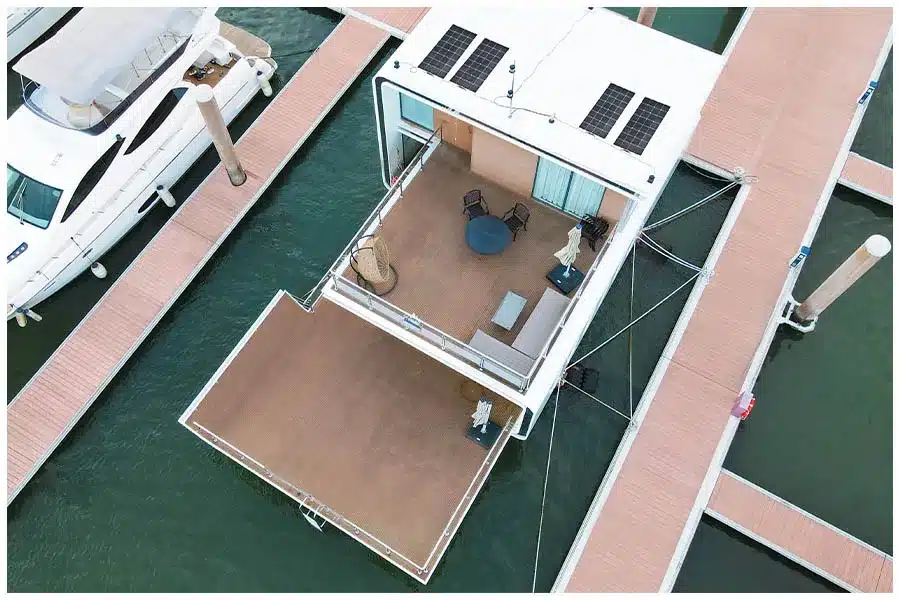

The TF series of flexible solar panels have passed EMC, LVD, and ROHS certifications. Suitable for caravans, RVs, yachts, BIPVs, camping, etc.

Unparalleled Solar Efficiency and Durability

The performance of the SG-TF-M/S series solar panel was tested under the standard test

solar panel test and Certificate

solar panel test and Certificate

flexible solar panel test and Certificate

TF series solar panel test

flexible solar panel test

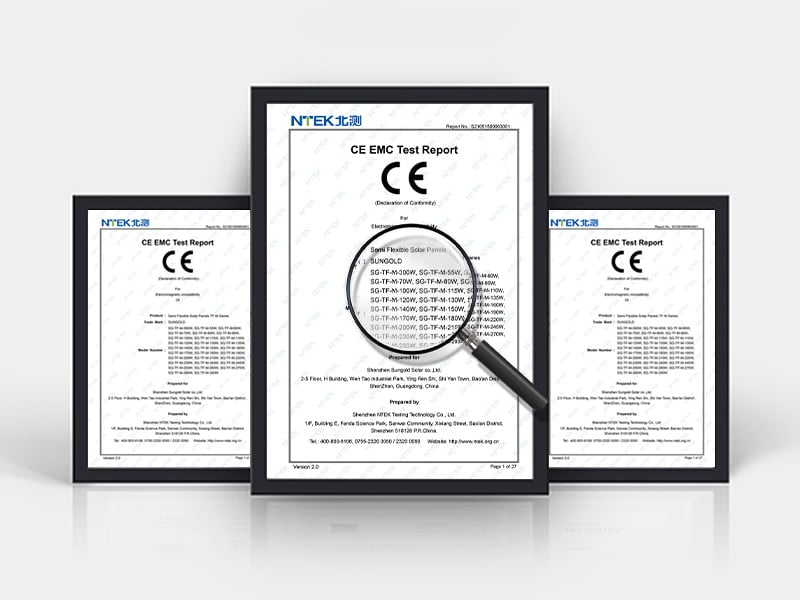

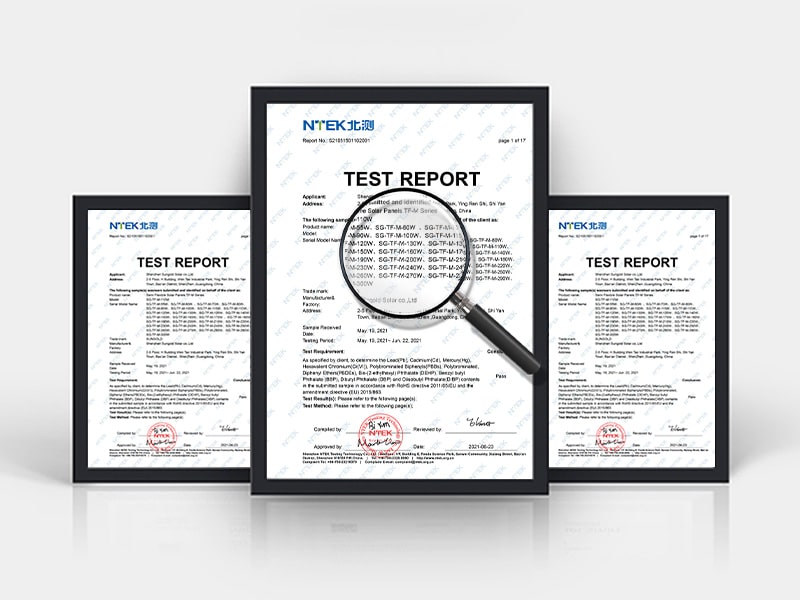

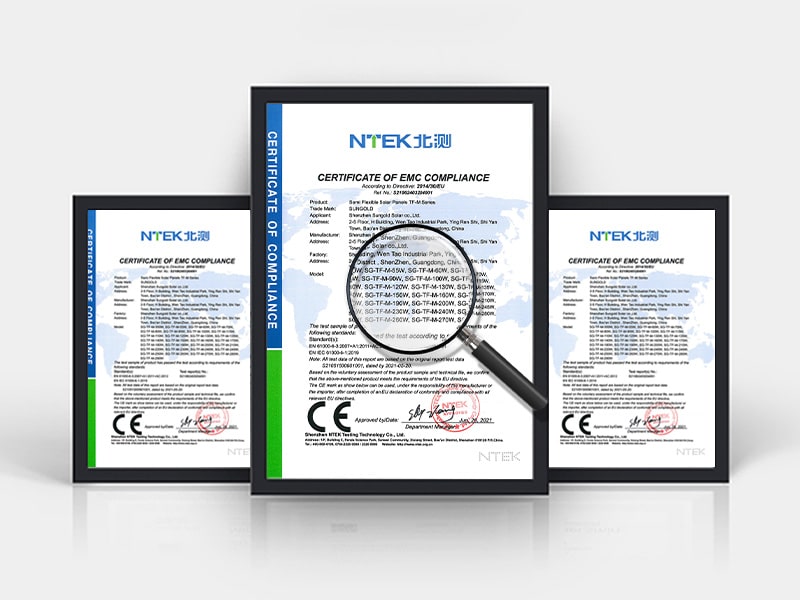

Certifications

TF Series Certification

The SG-TF-M/S Series is fully certified with EMC, LVD, and ROHS standards, ensuring top-tier safety and environmental compliance. Our solar panels undergo rigorous testing, including a 49-day durability test and over 14,700 step cycles, proving their ability to maintain stable output under extreme conditions.

With these certifications, you can trust that Sungold’s TF Series delivers consistent, high-quality performance, meeting the most stringent industry standards.

Video

introduction

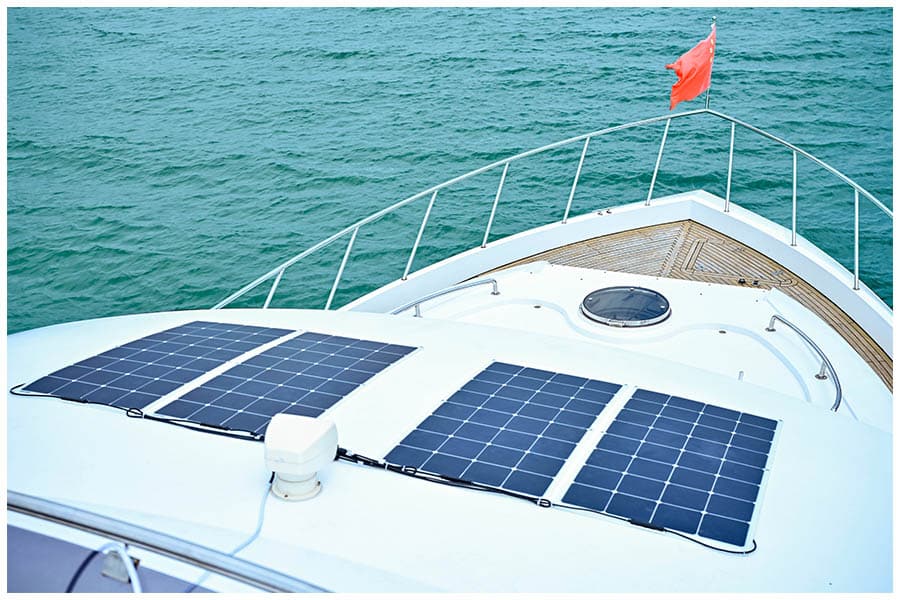

Discover how the TF Series Flexible Solar Panel Kit excels in various environments. From yachts and RVs to rooftops and outdoor camping, these lightweight panels are designed for easy installation and long-term durability. Engineered to withstand the elements, they offer reliable power in any scenario.

Watch the video to see why Sungold’s TF Series is the preferred choice for large-scale distributors and wholesalers seeking top-tier solar solutions.

Product Specifications

	SG-TF-M2-60W	SG-TF-M2-100W	SG-TF-M2-120W	SG-TF-M2-150W	SG-TF-M2-180W	SG-TF-M2-220W	SG-TF-M2-270W	SG-TF-M2-300W	SG-TF-S-60W	SG-TF-S-90W	SG-TF-S-120W	SG-TF-S-135W	SG-TF-S-150W	SG-TF-S-165W	SG-TF-S-220W	SG-TF-S-265W	SG-TF-S-295W
MODEL
Maximum Power/Pmax(Wp)	60W	100W	120W	150W	180W	220W	270W	300W	60W	90W	120W	135W	150W	165W	220W	265W	265W
Cell Efficiency	>22.7%	>22.7%	>22.7%	>22.7%	>22.7%	>22.7%	>22.7%	>22.7%	>24.4%	>24.4%	>24.4%	>24.4%	>24.4%	>24.4%	>24.4%	>24.4%	>24.4%
Operating Voltage/Vmp(V)	18.6	24.4	19.1	23.2	20.9	34.8	41.8	23.2	26.2	22.30	19.80	22.30	24.80	27.30	37.2	44.6	49.6
Operating Current/Imp(A)	3.23	4.1	6.29	6.47	8.62	6.33	6.46	12.94	3.04	4.04	6.07	6.03	6.05	6.05	5.92	5.95	5.95
Open Circuit Voltage/Voc(V)	21.8	28.5	22.3	27.1	24.5	40.7	48.9	27.1	23.30	26.2	23.30	26.2	29.2	32.1	43.8	52.5	58.4
Short Circuit Current/Isc(A)	3.39	4.3	6.6	6.79	9.04	6.64	6.78	13.58	3.21	4.28	6.42	6.42	6.41	6.41	6.27	6.3	6.3
Dimension(mm)	8403953mm	9605803mm	11105903mm	10207653mm	12207803mm	14957653mm	17907653mm	150010303mm	5805403mm	8405403mm	10705403mm	12005403mm	13305403mm	14605403mm	13408003mm	15908003mm	134010503mm
Solar cells	mono cell	mono cell	mono cell	mono cell	mono cell	mono cell	mono cell	mono cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell	sunpower cell
Weight(kg)	1.15	1.92	2.26	2.7	3.29	3.95	4.73	5.34	1.36	1.97	2.51	2.82	3.12	3.43	4.66	5.53	6.11
The maximum system voltage	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)
Output cable	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	3 CF4050 diodes 500mm/4mm2 single core cable with MC4 connector	3 CF4050 diodes 500mm/4mm2 single core cable with MC4 connector	4 CF4050 diodes 500mm/4mm2 single core cable with MC4 connector
Maximum bending arch height	80mm	150mm	180mm	150mm	200mm	270mm	360mm	270mm	45mm	80mm	150mm	160mm	200mm	240mm	270mm	270mm	270mm
Output power tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white	black/white
Warranty	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years	6 years

Edit Content

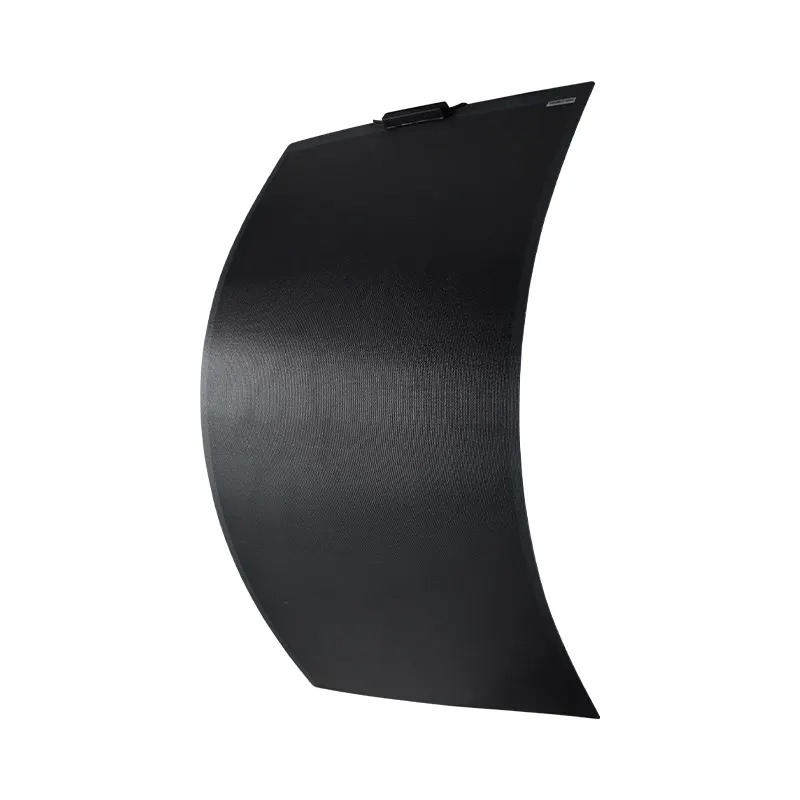

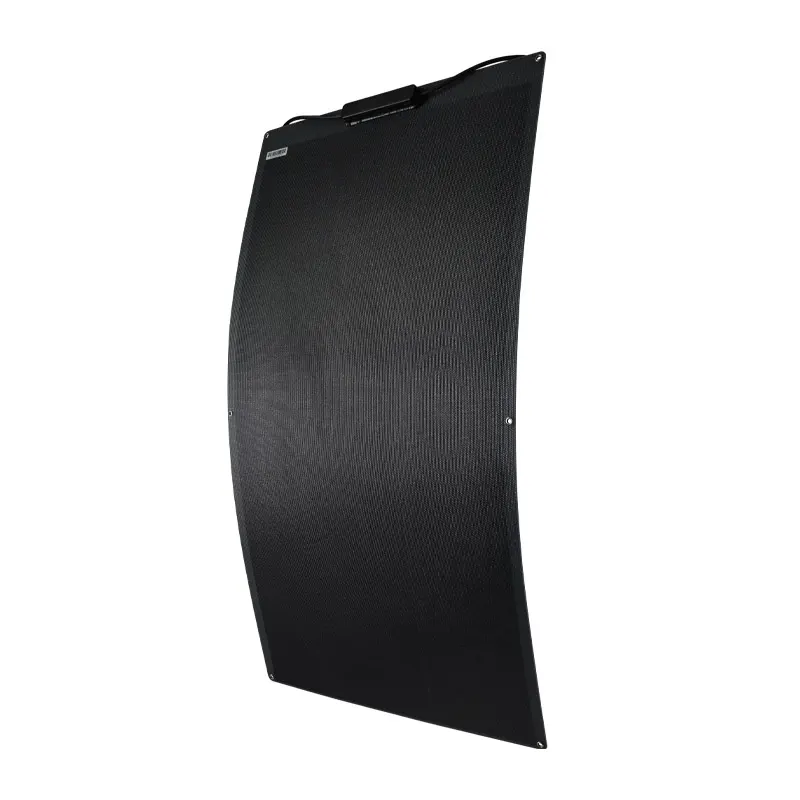

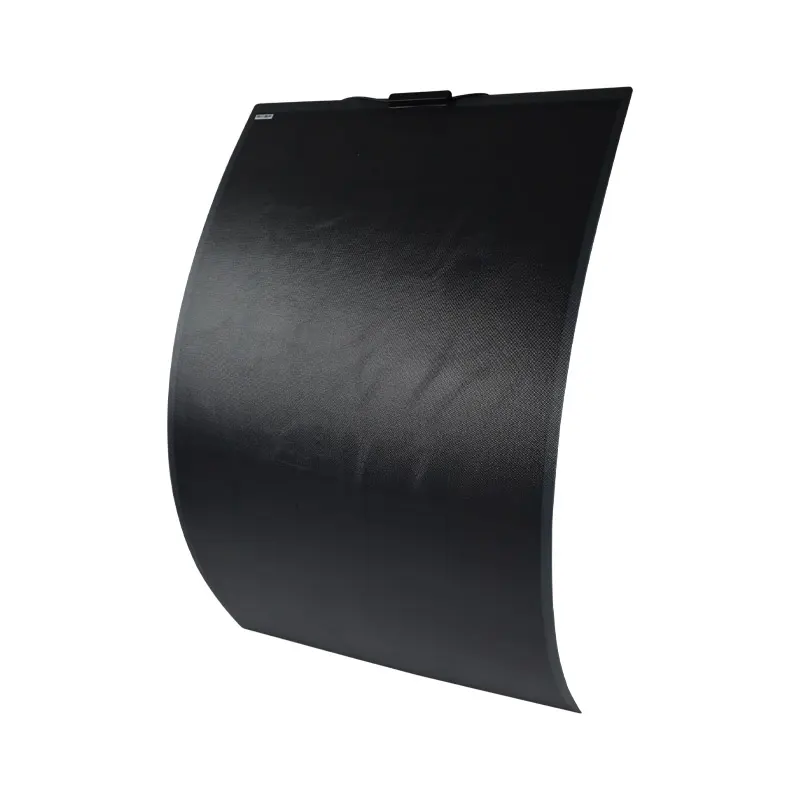

TF D Series

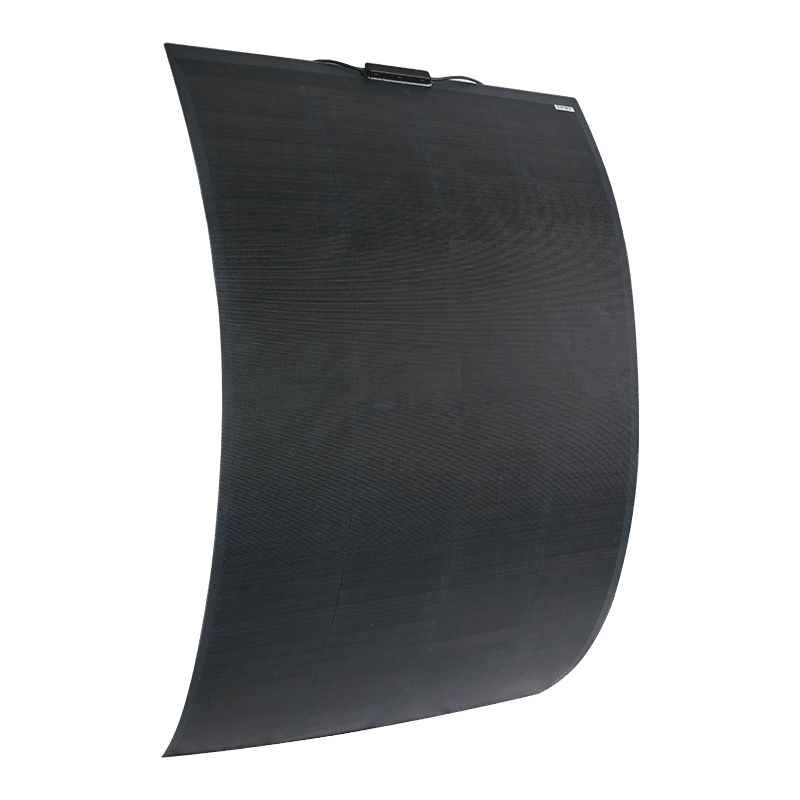

TF-D black solar panels use shingled technology for higher conversion efficiency.

Higher conversion efficiency

Shingled cells welding technology

High impact resistance

6-year warranty

Ultra lightweight and thin

High efficiency, high impact resistance.

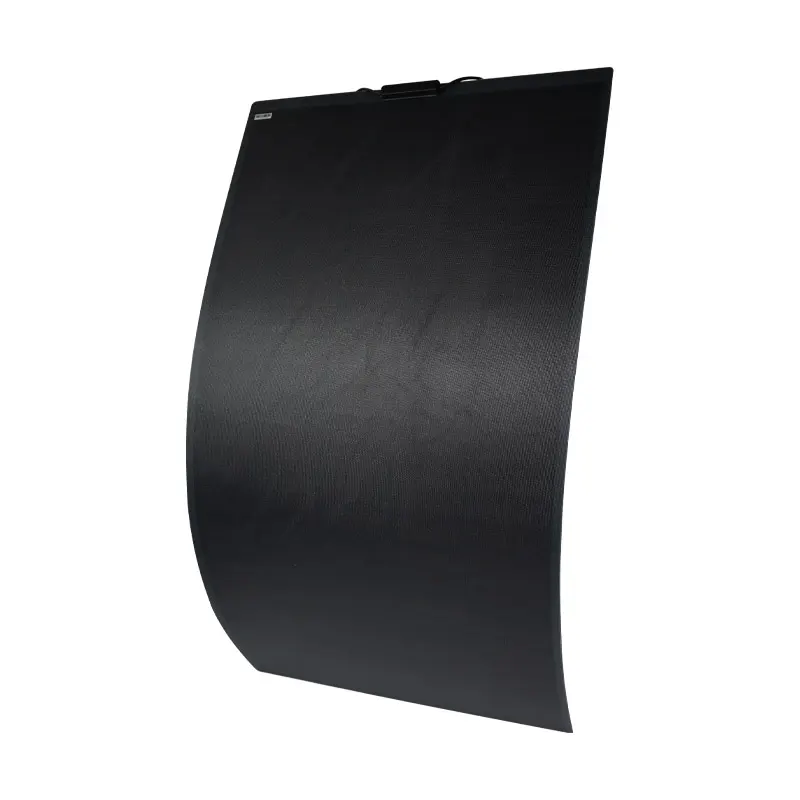

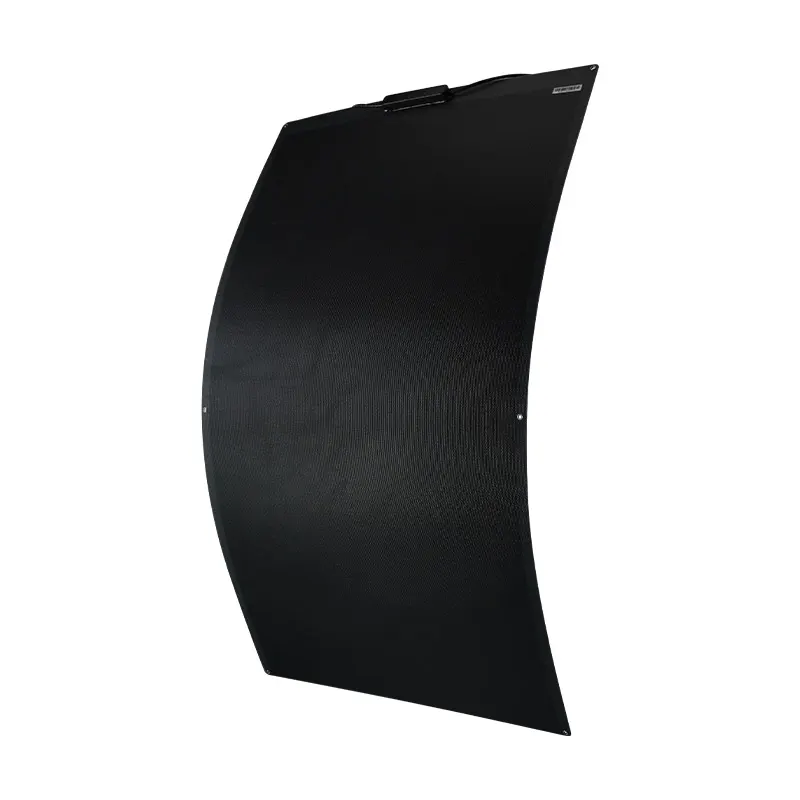

TF-D SERIES

Six-year warranty

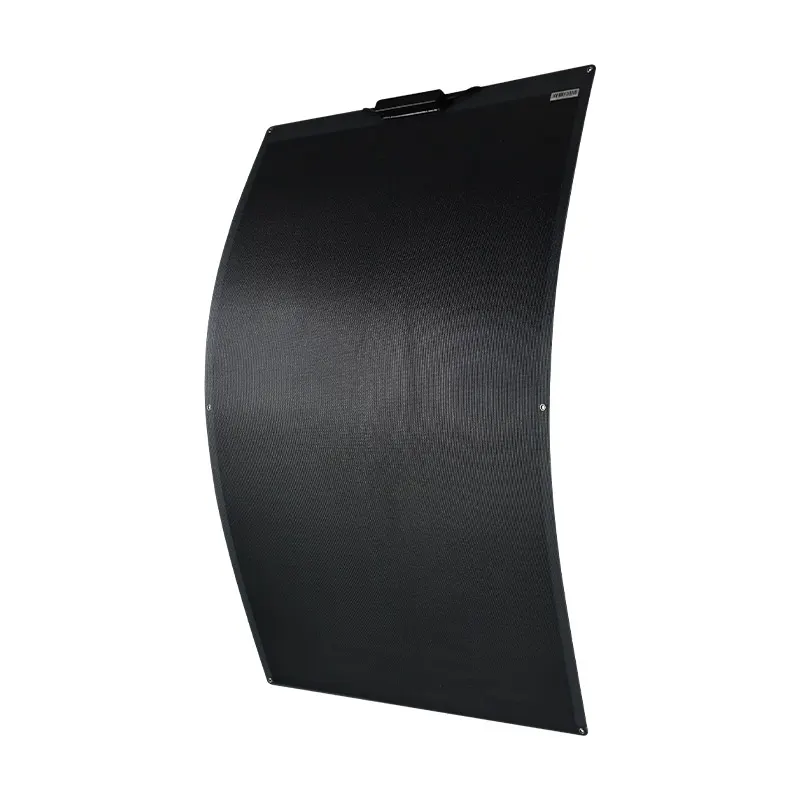

TF-D all black flexible solar panels are based on shingled technology. The high conversion efficiency of solar panels.At the same time, the product has passed the strict PID test and guaranteed the six-year warranty

Patented Material

Black Solar panels are made of Sungold’s self-developed polymer composite material. Solar panels are highly impact resistant.Effectively protect the stability of the solar cells

Black Solar Panels TF-D

TF-D Black Solar Panels have passed IEC, CE, and ROHS certifications. They are perfectly suitable for RV roofs, yachts, BIPVs, camping, etc.

Understand The Technology

The performance of the SG-TF-D series solar panel was tested under the standard test

flexible solar panel test

TF series solar panel test

flexible solar panel test and Certificate

solar panel test and Certificate

solar panel test and Certificate

Certifications

TF Series Certification

The SG-TF-D series is certified to standard testing, a test standard issued by the International Electrotechnical Commission (IEC) for consumer photovoltaic designs. It uses industrial-grade PV materials, industrial-grade design standards, manufacturing processes, and process control in accordance with IEC international standards.

Video

introduction

TF series flexible solar panel kit can be used in a variety of environments, such as yachts, RVs, rooftops, tents, outdoor camping, balconies, and other environments. Due to the light weight of the flexible panel, it can be hung for a long time, which greatly widens the use scenarios of the product.

Product Specifications

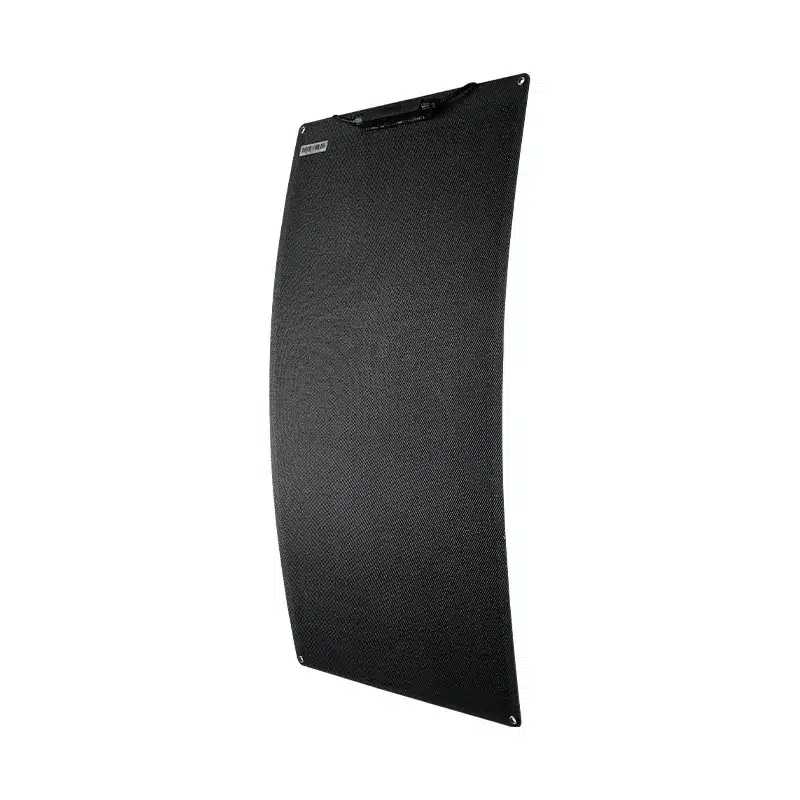

	SG-TF-D-50W	SG-TF-D-100W	SG-TF-D-150W	SG-TF-D-200W	SG-TF-D-250W	SG-TF-D2-50W	SG-TF-D2-100W	SG-TF-D2-120W	SG-TF-D2-150W	SG-TF-D2-180W	SG-TF-D2-200W	SG-TF-D2-255W	SG-TF-D2-280W
MODEL
Maximum Power/Pmax(Wp)	50W	100W	150W	200W	250W	50W	100W	120W	150W	180W	200W	255W	280W
Cell Efficiency	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%	>22%
Number of cells	2*16	2*33	3*33	3*44	4*41	2*22	3*30	3*35	4*33	4*40	4*44	5*45	5*50
Operating Voltage/Vmp(V)	18.20	18.80	18.80	25.10	23.40	25.5	17.4	20.3	19.1	23.2	25.5	26.1	29.0
Operating Current/Imp(A)	2.75	5.32	7.98	7.97	10.69	1.97	5.75	5.92	7.86	7.76	7.85	9.78	9.66
Open Circuit Voltage/Voc(V)	21.50	22.20	22.20	29.60	27.60	30.1	20.5	24.0	22.5	27.4	30.1	30.8	34.2
Short Circuit Current/Isc(A)	2.91	5.64	8.46	8.45	11.32	2.08	6.09	6.27	8.32	8.22	8.31	10.36	10.23
Dimension(mm)	6404703mm	12354703mm	12356803mm	12358903mm	123511003mm	7703603mm	10355403mm	11955403mm	11307103mm	13557103mm	14807103mm	15158803mm	16808803mm
Solar cells	shingled cell	shingled cell	shingled cell	shingled cell	shingled cell	166*33.2mm	166*33.2mm	166*33.2mm	166*33.2mm	166*33.2mm	166*33.2mm	166*33.2mm	166*33.2mm
Weight(kg)	1.23	2.39	3.49	4.58	5.61	1.21	2.43	2.81	3.49	4.18	4.57	5.80	6.43
The maximum system voltage	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)
Output cable	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (1 bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (1*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible
Maximum bending arch height	45mm	180mm	180mm	260mm	240mm
Output power tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Warranty	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years
Remark	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

black flexible solar panel

Energy saving and environmental protection

Nowadays, more and more people are beginning to use renewable energy sources such as solar power to generate electricity for themselves. This not only saves money but also conserves resources, signifying another step towards a greener carbon footprint in the future.

It contributes to reducing global carbon emissions and adds to the effort due to its numerous advantages. Flexible solar panels are becoming increasingly popular due to their many benefits. They are highly suitable for travel, such as camping and vacationing with RVs, as well as for widespread use in transportation like cold chain vehicles.

Of course, their applications are also widespread in the field of transportation. Learn about Sungold’s black flexible solar panels here and discover the unparalleled joy they can bring to your next camping vacation. Let our quality convince you!

Flexible solar modules suitable for all outdoor activities: RVs, camping, and more.

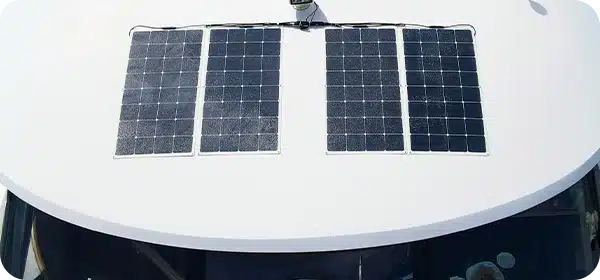

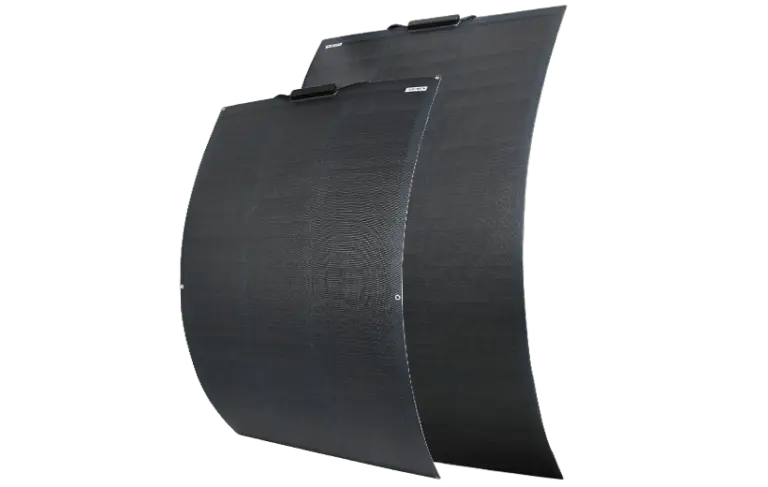

Flexible solar panels for rv：Flexible photovoltaic modules are a type of solar panel made from flexible lightweight materials. They convert sunlight into electricity, which is then stored in batteries or directly used to power devices. Flexible panels are more versatile than traditional rigid solar panels, making them easy to install on curved or uneven surfaces. This makes them well-suited for balconies, RV roofs, and other mobile applications.

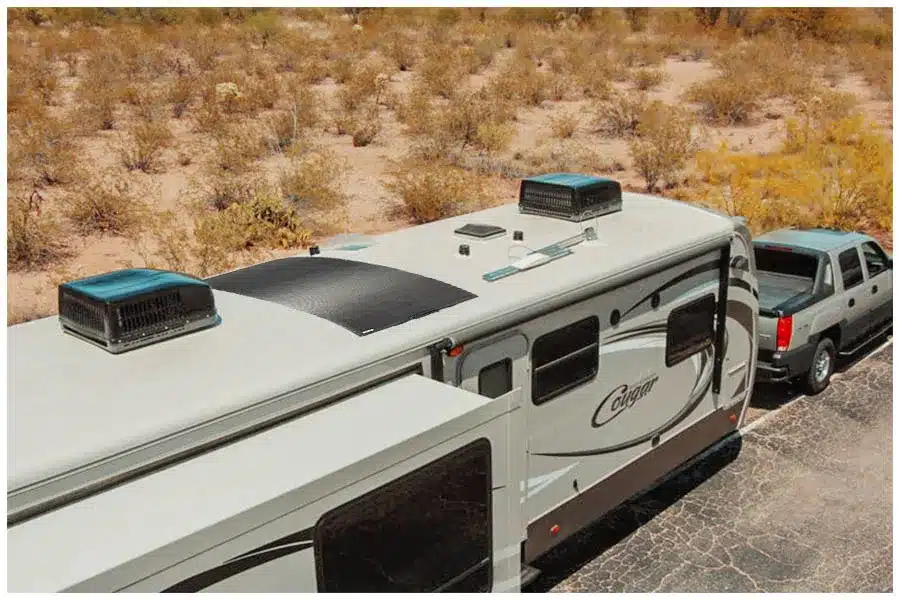

Flexible solar panels for vehicles：The application of flexible solar panel in cold chain vehicles provides a sustainable and innovative solution to address energy and environmental challenges. By harnessing solar power, these vehicles can reduce their carbon footprint, lower operating costs, and enhance the reliability of maintaining the cold chain during transportation

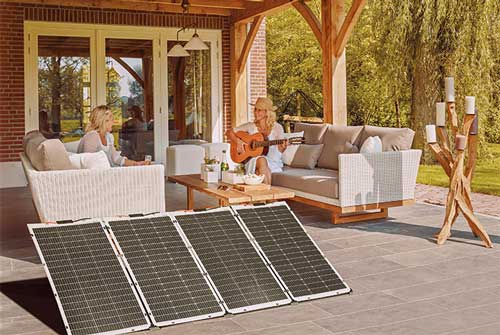

Black solar panels are particularly suitable for balcony applications.

Why are solar panels black：Black flexible solar modules are a type of solar panel that effectively converts sunlight into electricity while also maintaining an aesthetic appeal. They are referred to as “black” due to their dark color that seamlessly blends with various architectural designs. These panels are flexible, lightweight, and can be integrated into various surfaces, making them suitable for unconventional installations like balconies.

Suitable for balcony : The actual energy generation potential of black flexible solar modules on a balcony will depend on factors such as available sunlight, panel orientation, shading, and panel efficiency. Before installing solar panels, it’s recommended to assess your balcony’s solar exposure and consult professionals from Sungold to determine the feasibility and potential benefits of the installation.

Black flexible solar modules, also known as all-black solar panels, offer a versatile and visually pleasing solution for generating clean energy from balconies. They provide functional advantages in terms of electricity generation and contribute to the overall sustainability of your living space.

The unparalleled advantages of flexible solar panels.

Easy Install

Flexible solar panels also come with several other advantages: they are lighter and easier to install compared to traditional rigid panels, making them an attractive choice for those looking to install a solar energy system that’s simple and within a reasonable budget.

DIY-Friendly

Since they can be bent and adhered to fit different surfaces, the time and labor required for installing flexible solar panels are not high. This makes them a good option for anyone who wants a quick, easy, and DIY-friendly solar system installation without requiring professional help.

Maintenance costs for flexible solar modules are low, and they can withstand extreme weather conditions. This makes them a great choice for any camping or outdoor excursion activities.

Inquire about Sungold's 50W/100W/150W/200W/270W flexible solar modules.

Here, you will discover practical flexible photovoltaic modules and solar panels along with comprehensive services. Inspired by Sungold and our cutting-edge technology, convince yourself through the full support of our professional after-sales engineers and the most competitive prices!
Our experienced engineering and technical team is ready to answer your questions at any time.

EXPLORE

YOU MAY ALSO LIKE

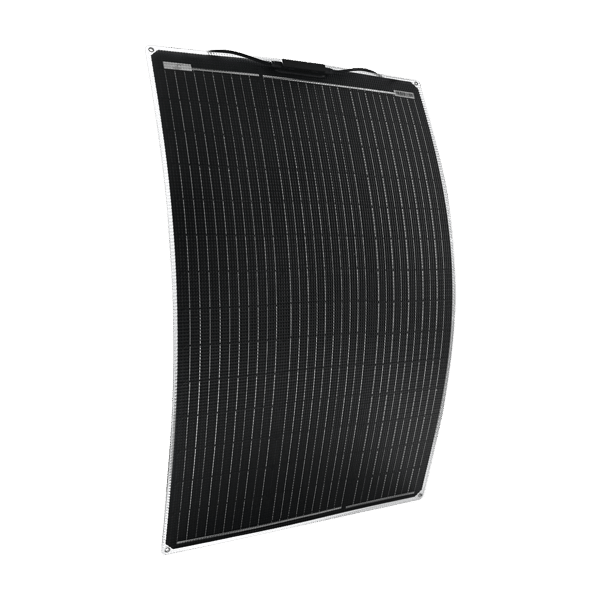

LEE-2-100W-img-2

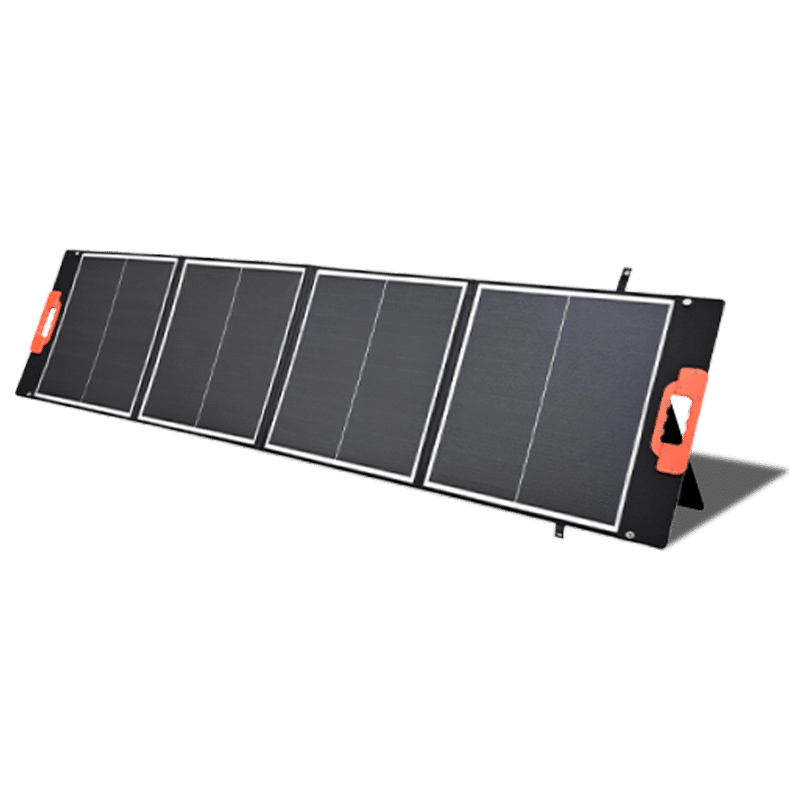

WINNER BAG SERIES

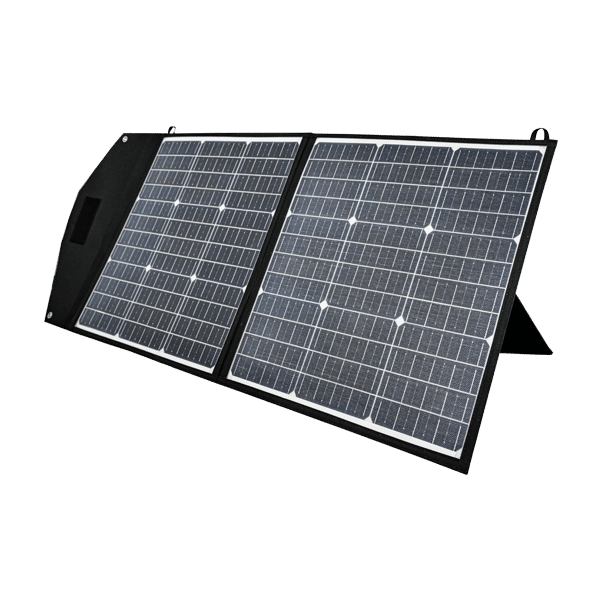

SPC-TF-S-135W-1

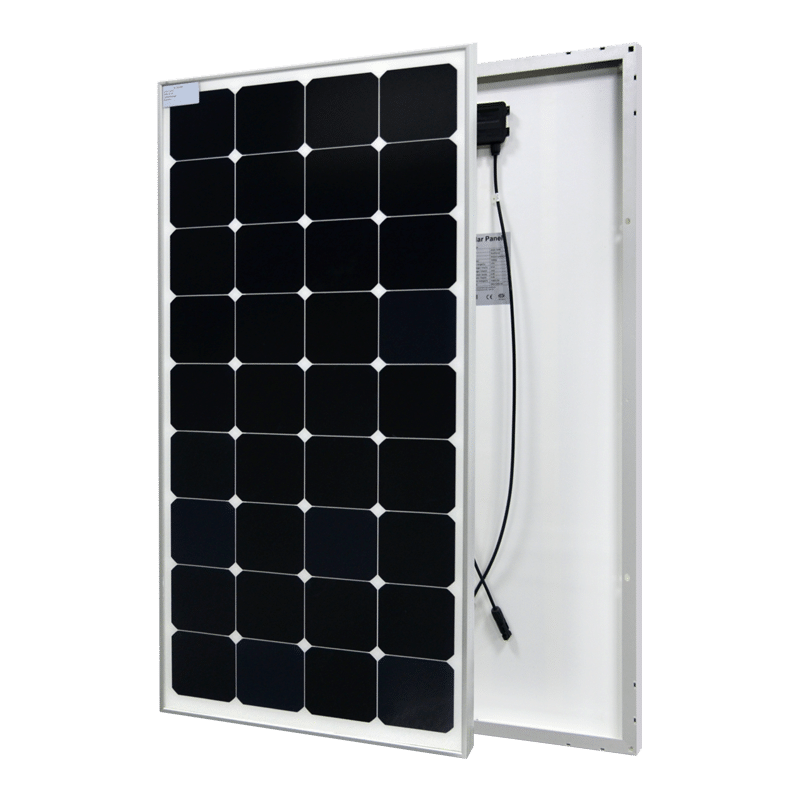

sgsp-series-image
