SG-TF-M-55W

Sungold solar panels for boat TF-M-55W

Polymer composite material / 5 years warranty/ANTI-TRAMPLING

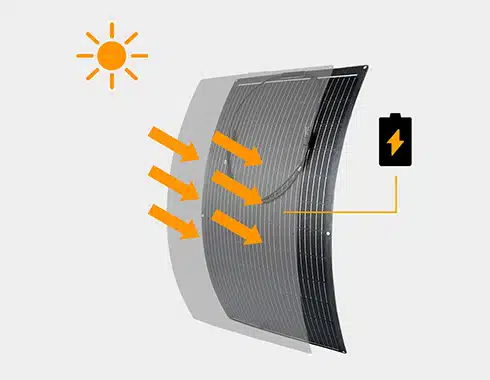

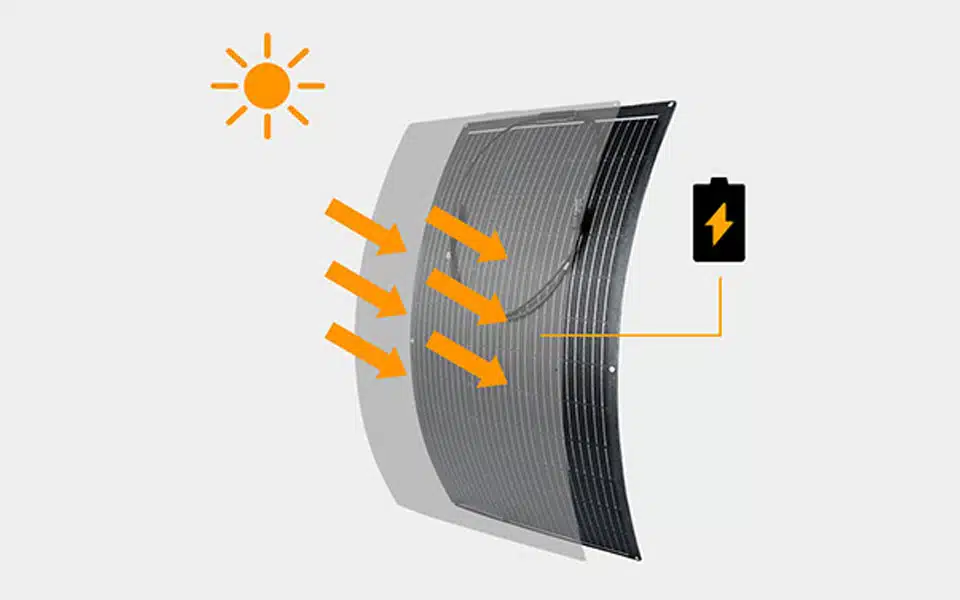

TF-M-55w small solar flexible panel adopts single crystal cell conversion efficiency up to 23%, which is a new product developed in ancient times. Combined with current energy needs, considering more application scope and quality assurance issues, it breaks through conventional material design and adopts ancient special patented materials to better protect the battery. The absorption of the impact will be enhanced, reducing the damage to the battery. Ideal for outdoor, RV, home, BIPV and other applications

make the most of every sunlight

Features

Adopt Polymer Composite Material

LIGHTER AND FLEXIBLE

5 YEARS WARRANTY

Anti-trampling

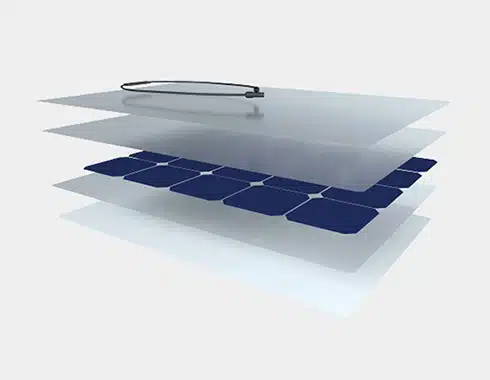

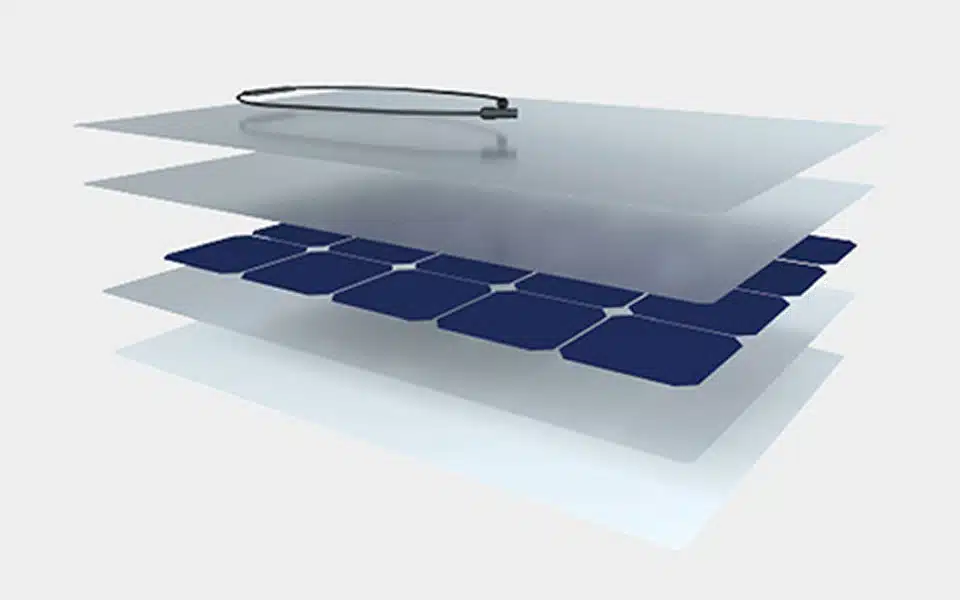

EXCLUSIVE PATENTED MATERIAL

TF-M-50w use an organic polymer composite to replace the typical glass front sheet as a laminant. The polymer composite material used is extremely durable, capable of withstanding extreme temperatures and climate conditions.

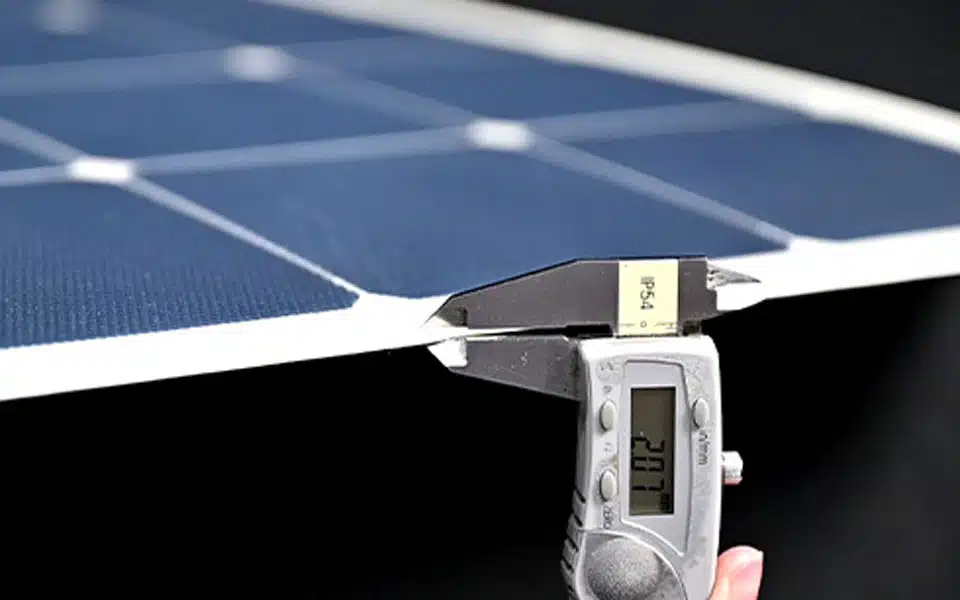

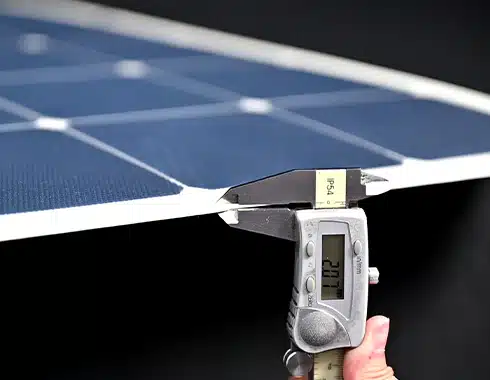

Ultra light and thin, more flexible

The TF Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.

5 years warranty

The TF-M-55w solar flexible panel products come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests conducted by the company. These tests have verified the product’s protection and stability, providing confidence in its reliability. Additionally, the product features a newly patented material that has proven highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

ANTI-TRAMPLING

The TF-M-50w solar flexible panel samples were subjected to rigorous hail test conditions, which included a hail diameter range of 24.20 to 25.62mm, a mass range of 7.226 to 7.731g, a test velocity range of 21.9 to 24.0m/s, and a total of 11 shots. Despite these challenging conditions, the samples exhibited no abnormalities during the test and passed the visual inspection with flying colors.

Furthermore, the samples underwent a wet leakage current test, which exposed them to a maximum system voltage of 1000 V, a test voltage of 1000 V, a solution resistivity of 996 Ω·cm, and a solution temperature of 22.9 °C. The samples successfully passed this test with no abnormalities detected, indicating their exceptional durability and reliability.

Applications

RV

Home

Yacht

Frequently Asked Questions

What is the function of half-cell technology?

A half cell is obtained by cutting a standard cell in half. The half-cell module can reduce the loss of power generation due to shading. At the same time, the half cell can reduce the power loss of the whole PV module.

What are the outstanding technical features of the TF series?

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

How long is the warranty of TF series?

5 years warranty. TF series flexible solar panels have service life of 20 years

What watt of monocrystalline flexible solar panels can Sungold offer?

Sungold offers 55W, 110W, 200W, 220W, 245W, 270W light mono flexible solar panels to meet all your needs

What is the surface material of TF series flexible solar panels?

ETFE material. ETFE material has the characteristics of weather resistance, corrosion resistance and aging resistance. ETFE material also has extremely high light transmission.

Specifications

Download Specs

Leave a Message

If you are interested in our products and want to know more details, please leave a message here and we will get back to you as soon as possible.

SG-TF-M-55W

Menu

Sungold solar panels for boat TF-M-55W

RV

Home

Yacht

Rated Power

Open-circuit voltage(Voc)

Voltage at Pmax(Vmp)

Short Circuit Current

Current at Pmax(Imp)

Cells efficiency(%)

The maximum system voltage

Power temperature coefficient

Voltage temperature coefficient

Current temperature coefficient

Output power tolerance

Operating temperature

Weight

Dimensions

Warranty
