LVP Series
The LVP series foldable solar panels is a lightweight folding solar panel. It uses monocrystalline silicon solar cells.
High Conversion Efficiency
ETFE surface material
Monocrystalline silicon solar cell
Portability
High impact resistance
FOLDING SOLAR PANELS LVP SERIES
The Sungold LVP series of folding solar panels uses monocrystalline silicon solar cells. Solar panels have high conversion efficiency. The solar panels are protected by ETFE film and durable material layers for use in all types of weather.
Sungold LVP Series solar panels are foldable and come with adjustable brackets. The panels open to provide more space to catch the sun. Lightweight, they are easy to pack and carry wherever you go.
Best Foldable Solar Panels LVP Series
LVP series foldable solar panels have passed CE and ROHS certifications. It is robust and durable with high-cost performance.
The performance of the LVP series foldable solar panels was tested under the standard test.

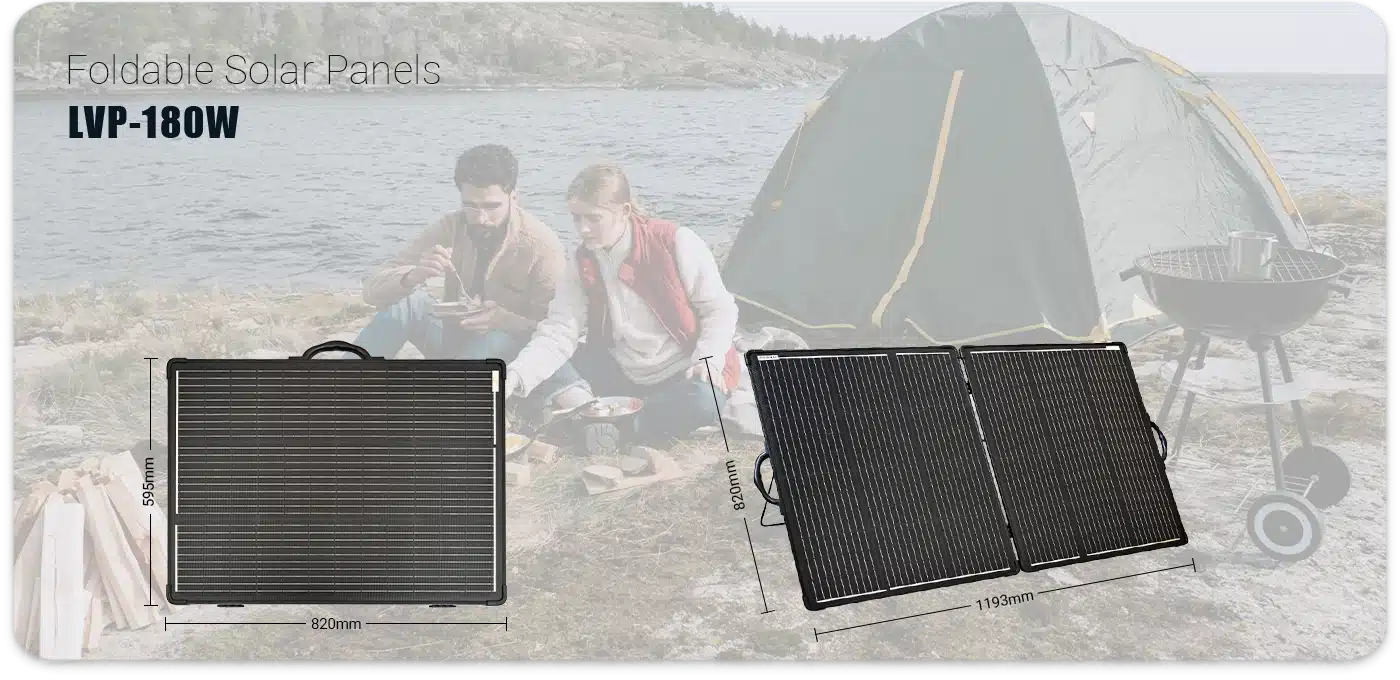

Portable and foldable
Sungold LVP Series folding solar panels are lightweight, 50% of the weight of traditional solar panels. The overall design does not use glass, which greatly reduces the weight of the product. Supported by a black PET backing for better quality.
ETFE surface material
ETFE laminated outer film has strong anti-UV and anti-aging properties. The aluminum alloy frame protects the solar panel from damage. The solar panel is also designed with an anti-aging material handle and a corrosion-resistant metal bracket.
High conversion rate
Sungold LVP series folding solar panels are manufactured with high-efficiency monocrystalline solar cells. No need to worry even on cloudy days, they can provide up to 20-30% of rated power.
Sungold LVP series foldable solar panels products have passed ROHS and CE certifications. Our products meet the safety requirements stipulated by EU directives, and customers can use the products with confidence. The material and process standards of our products are all within the specified standards, making them more conducive to human health and environmental protection.
Sungold LVP series folding solar panels are plug-and-play and easy to install. It can power your cell phone, laptop, fan, and other electronics. Perfect for outdoor, hiking, camping use, and as an emergency backup power source.
| LVP2 130W A | LVP2 180W A | LVP2 270W A | |
|---|---|---|---|
| MODEL |  |  |  |
| Folding Number | 2pcs | 2pcs | 2pcs |
| Cell Efficiency | ＞22.70％ | ＞22.70％ | ＞22.70％ |
| Max Power Voltage | 20.90 | 20.90 | 20.90 |
| Max Power Current | 6.23 | 8.62 | 12.92 |
| Open Circuit Voltage | 24.50 | 24.50 | 24.50 |
| Short Circuit Current | 6.53 | 9.04 | 13.56 |
| Number of Cells | 2*3*12 | 2*3*14 | 2*4*9 |
| Cell Dimension | 182*45.5mm | 182*60.67mm | 182*91mm |
| Weight | 6.40kg(14.11lbs) | 8.30kg(18.30lbs0 | 11.50kg(25.35lbs) |
| Expand Size | 1193*640*25mm | 1193*825*25mm | 1563*910*25mm |
| Folded Size | 640*595*50mm | 825*595*50mm | 910*780*50mm |
| The maximum system voltage | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) |
| Outlet/Accessories | No diode + LS1012EU controller + controller to battery 3m 2464+14AWG+ red and black two-core wire+ small Anderson connector | No diode+LS1012EU controller+controller to battery 3m 2464+14AWG+red and black double core wire+JB028 large alligator clip+small Anderson connector | No diode + LS2024EU controller + 4m RVV 2*4mm² twin wire + JB028 alligator clip + big Anderson connector |
| Surface material | ETFE | ETFE | ETFE |
| Max Power Tolerance | ±3% | ±3% | ±3% |
| Color | Black | Black | Black |
| Warranty | 1 Year | 1 Year | 1 Year |
| Remarks | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | ||
More panels, more power -
Sungold foldable solar panels
Lightweight Aluminum Reinforced

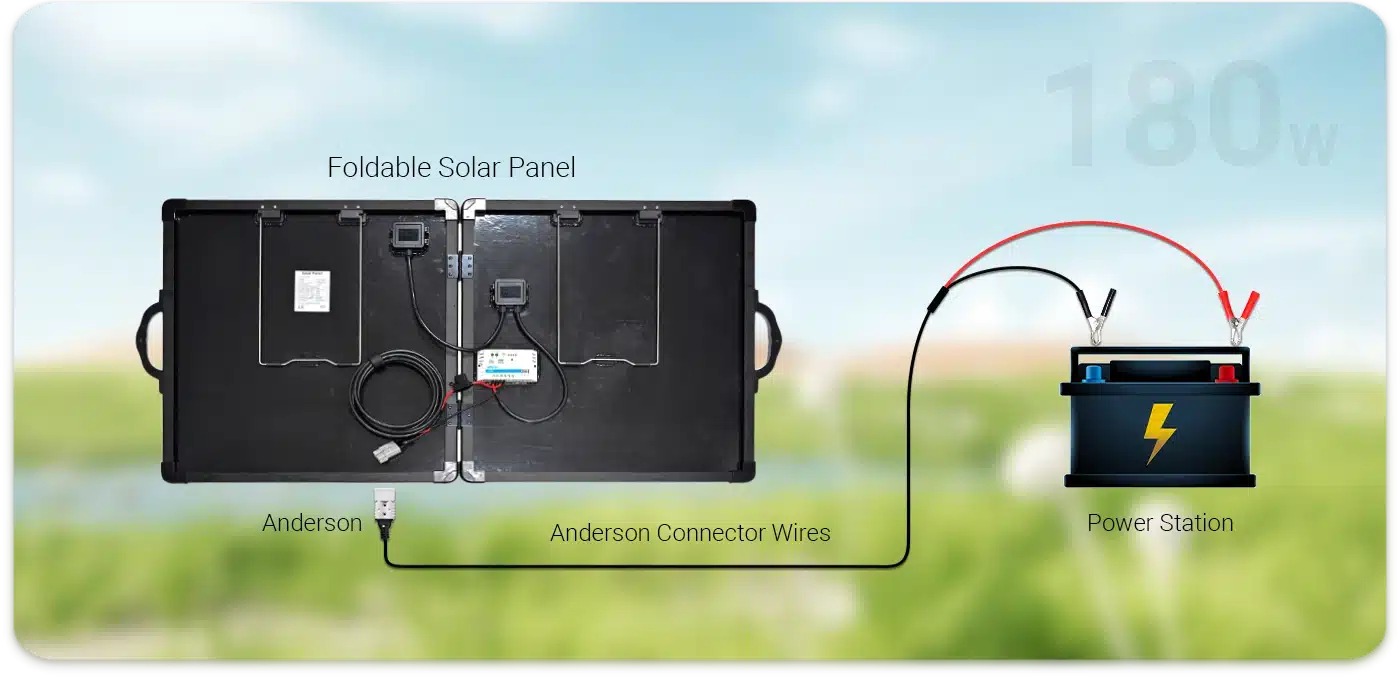

Efficient MPPT Solar Charge Controller
EXPLORE
