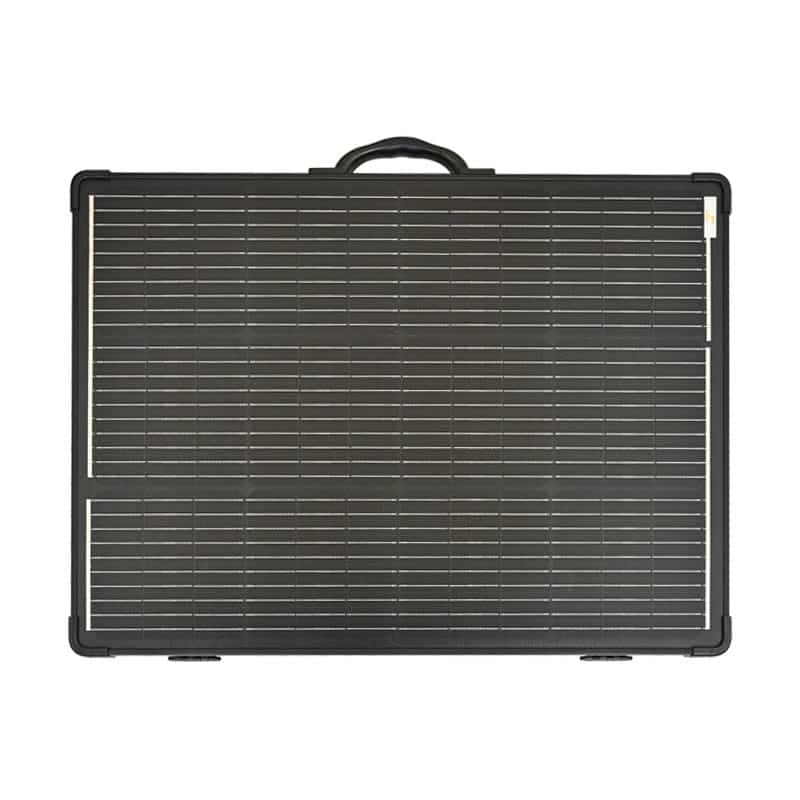

The 180-watt solar panel is a foldable design for easy portability. A magnet at the handle keeps the panel closed without the need for a bulky latch for easy portability. The surface is made of scratch-resistant material, which can well protect the folding solar panel from scratches or damage during transportation.
The solar panels cover high-efficiency monocrystalline silicon solar cells with a cell efficiency of 22.70%. Using multilayer cell technology to generate energy from sunlight with higher conversion efficiency.
RV
Camping
Home
If you’re going RV camping, a picnic, or even an unexpected power outage,the LVP series can be used for most of your basic electrical loads. It can also be your reliable backup power source when you need electricity in special situations.
The greater the angle of the solar panel to the sun, the more electricity it can get. So put the solar panel in an open place to avoid the shade of trees.
With IP65 waterproof rating, the whole product will not be affected when working if it is rained or splashed by water. All you need to do is wipe off the surface water droplets.
1 years warranty. LE series flexible solar panels have service life of 10 years.

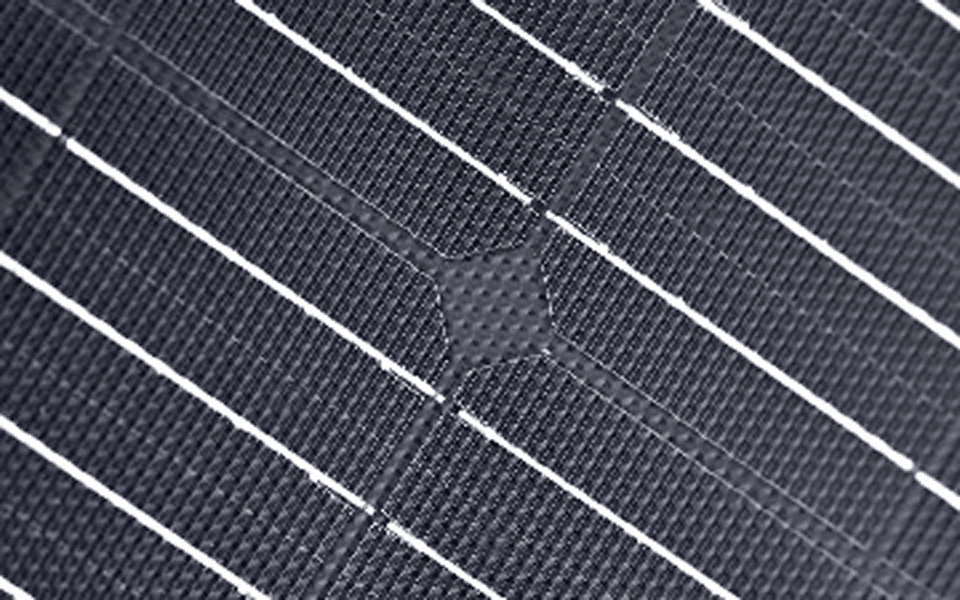

Absolutely. Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer membrane. Ensure that the product has good corrosion resistance and anti-aging ability
Maximum power(Pmax)
180W
Open-circuit voltage(Voc)
24.50V
Voltage at Pmax(Vmp)
20.90V
Short-circuit current(Isc)
9.04A
Current at Pmax(Imp)
8.62A
Cells efficiency(%)
22.70%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
0.04%/℃
Output power tolerance
±3%
Operating temperature
-10~60℃
Folding size
825*595*50mm
Unfolding size
1193*825*25mm
Warranty
1 year
