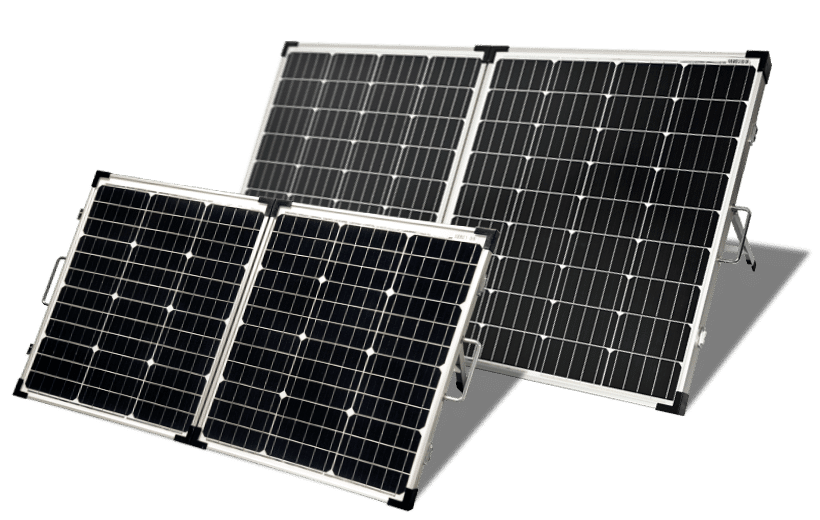

SGF series
SGF series folding best portable solar panels use mono cells with conventional welding technology.
High conversion efficiency
Waterproof
Strong and durable
Portability
Monocrystalline silicon solar cell
Foldable, portable, durable.
SGF SERIES
Mature design
Sungold SGF series folding best portable solar panels are designed and manufactured with standard glass panels and are one of the most mature solar products and the most familiar to customers.
Strong and durable
This product has been tested in the environment for a long time and is stable, proven, and durable. The corrosion-resistant aluminum frame for outdoor use allows the solar panels to last for decades, and withstand strong wind and snow loads.
This product has been tested in the environment for a long time and is stable, proven, and durable. The corrosion-resistant aluminum frame for outdoor use allows the solar panels to last for decades, and withstand strong wind and snow loads.
Folding Best Portable Solar Panels SGF Series
SGF series folding solar panel has passed CE and ROHS certifications. It is robust and durable with high-cost performance.
Understand The Technology
The performance of the SGF series folding solar panel was tested under the standard test
Waterproof
SGF series rigid folding solar panels are made of corrosion-resistant aluminum and tempered glass. It can withstand extreme weather conditions, including hail, high winds, and snow loads.
High efficiency
SGF series rigid folding solar panels are made of monocrystalline silicon solar cells. The solar panels have built-in photovoltaic diodes for optimal performance in sunny or low-light conditions.
Mature and durable
SGF series rigid folding solar panels are Sungold’s first portable product generation. It solves the problem that conventional rigid solar modules cannot be carried conveniently and greatly broadens the outdoor field.

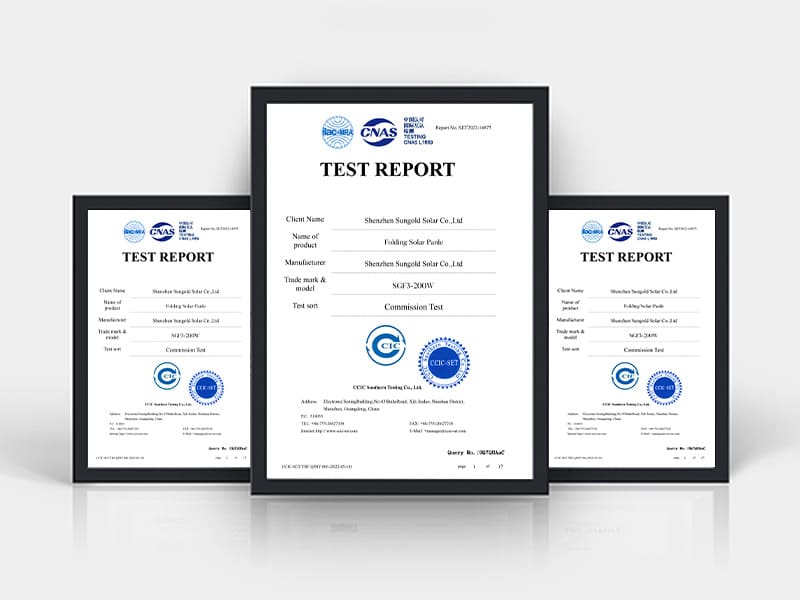

Certifications
SGF SERIES CERTIFICATIONS
Sungold SGF series products have passed ROHS and CE certifications. Our products meet the safety requirements stipulated by EU directives, and customers can use the products with confidence. The material and process standards of our products are all within the specified standards, making them more conducive to human health and environmental protection.
Video
introduction
Sungold offers a wide range of off-grid solar solutions. The SGF series of rigid folding solar panels are ideal for off-grid environments such as rooftops and sheds – offering many benefits including, but not limited to, quiet power generation and grid independence.
Product Specifications
| SGF3-130W | SGF3-180W | SGF3-200W | SGF3-240W | SGF3-270W | SGF3-300W | |
|---|---|---|---|---|---|---|
| MODEL |  |  |  |  |  |  |
| Maximum Power/Pmax(Wp) | 130W | 180W | 200W | 240W | 270W | 300W |
| Folding Number | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
| Cell Efficiency | >22.70% | >22.70% | >22.70% | >22.70% | >22.70% | >22.70% |
| Number of cells | 2*3*12 | 2*3*12 | 2*3*14 | 2*3*11 | 2*4*9 | 2*4*10 |
| Operating Voltage/Vmp(V) | 20.9 | 20.9 | 24.4 | 19.1 | 20.9 | 23.2 |
| Operating Current/Imp(A) | 6.78 | 9.04 | 8.61 | 13.4 | 13.56 | 13.58 |
| Open Circuit Voltage/Voc(V) | 24.50 | 24.50 | 28.50 | 22.30 | 24.50 | 26.71 |
| Short Circuit Current/Isc(A) | 6.78 | 9.04 | 8.61 | 13.40 | 13.56 | 13.58 |
| Folded Size(mm) | 625*590*30mm | 815*590*35mm | 945*590*35mm | 1090*590*35mm | 900*770*35mm | 1000*770*35mm |
| Expand Size(mm) | 1183*625*30mm | 1183*815*35mm | 1183*945*35mm | 1183*1090*35mm | 1543*900*35mm | 1543*1000*35mm |
| Solar cells | mono cell | mono cell | mono cell | mono cell | mono cell | mono cell |
| Weight(kg) | 11.80kg(26.01lbs) | 14.30kg(31.53lbs) | 16.50kg(36.78lbs) | 18.90kg(41.76lbs) | 20.50kg(45.19lbs) | 22.80kg(50.27lbs) |
| The maximum system voltage | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) |
| Output cable | 4.5m double-core wire 2.5mm2 wiring + Huineng LS1012EU 10A controller + 50A Anderson plug | 4.5m double-core wire 2.5mm2 wiring + Huineng LS2024EU 20A controller + 50A Anderson plug | 4.5m double-core wire 2.5mm2 wiring + Huineng LS2024EU 20A controller + 50A Anderson plug | 4.5m double-core wire 4mm2 wiring + Huineng LS2024EU 20A controller + 50A Anderson plug | 4.5m double-core wire 4mm2 wiring + Huineng LS2024EU 20A controller + 50A Anderson plug | 4.5m double-core wire 4mm2 wiring + Huineng LS2024EU 20A controller + 50A Anderson plug |
| Output power tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Operating Temperature | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ |
| Color | White | White | White | White | White | White |
| Warranty | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years |
| Remark | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | |||||

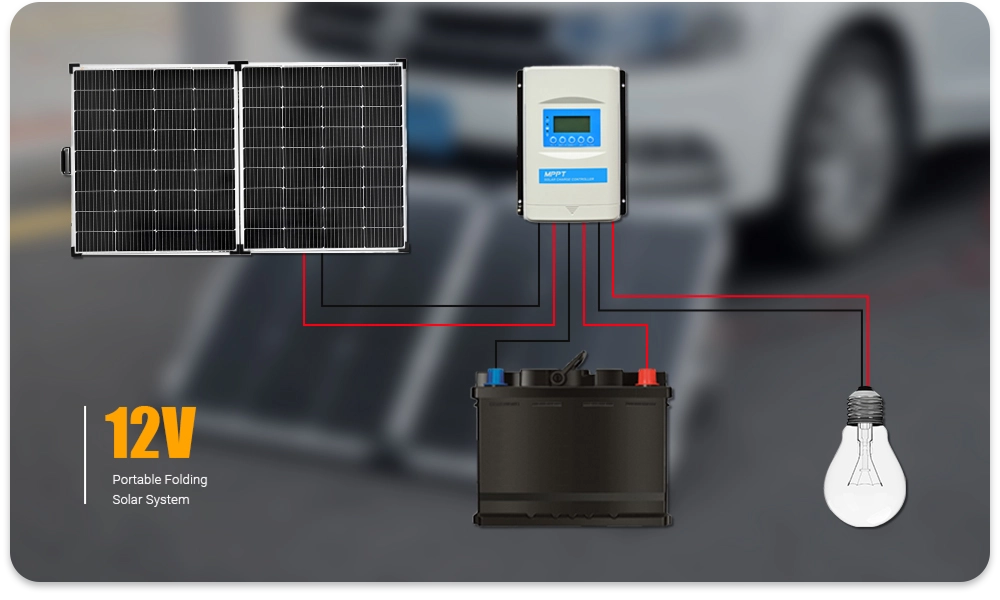

12V Best Portable Folding Solar System
Whether it’s off-grid camping or grid-connected energy, it’s crucial for enjoying home comfort.
Portable solar panels power your outdoor life, charging your devices, lights, water pumps, and any other 12V equipment. When we harness so much energy from the sun, it’s important to give back what we consume.
Sungold’s top-notch 12V Portable Folding Solar System is an excellent solution for those looking to disconnect from the grid or reduce camping costs due to rising energy expenses. It can generate up to 20 amps of current per hour. Plug-and-play solar kit: The complete set includes a solar box, a 20A waterproof charge controller, and alligator clips. It’s compatible with various types of 12V batteries, making it easy to integrate into your existing system.

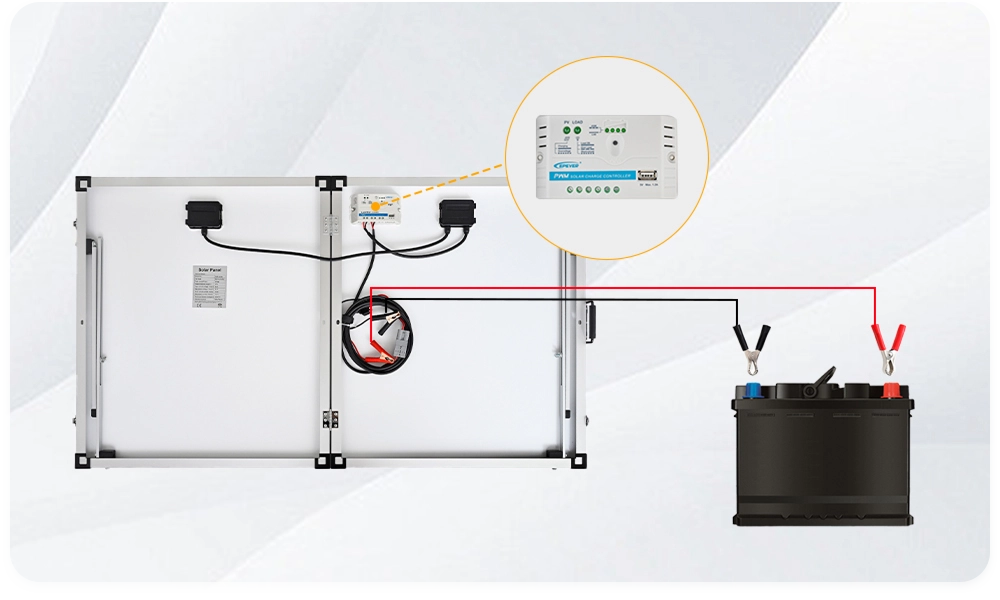

Portable Solar Solution
Sungold’s premium best portable solar panels are designed to collect energy even on cloudy and sunny days.
The MPPT regulator can detect the state of charge (SOC) of the battery and control the energy supplied to the battery, stopping charging when the battery is full. The regulator is compatible with all battery technologies. It includes alligator clip leads and ring terminal leads, allowing for quick and easy connection to the battery via Anderson connectors. This enables switching between the two leads and fast release from the battery when needed or when you wish to keep the ring terminals connected.

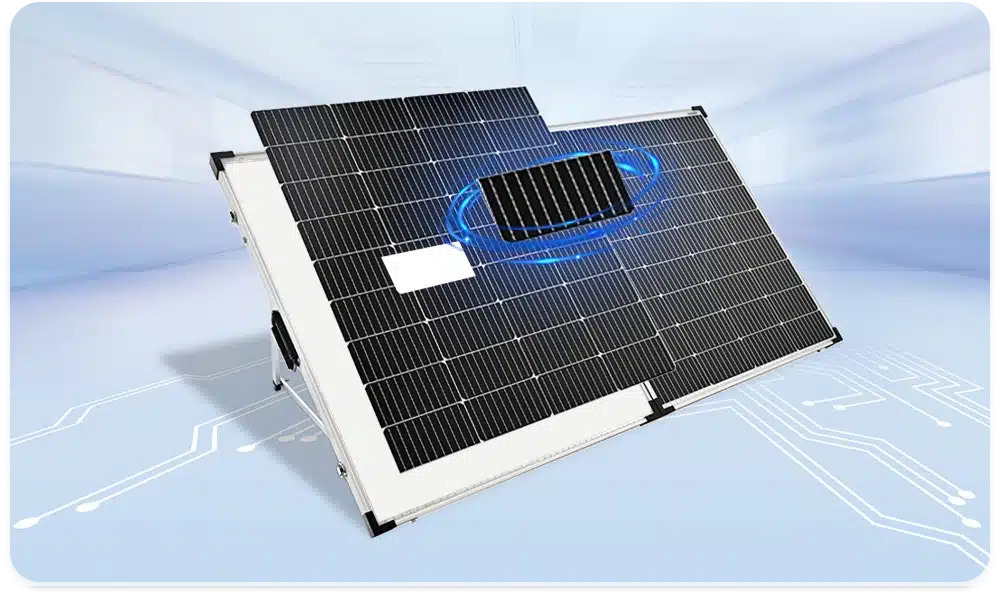

Best portable solar panels for camping- High-Efficiency Solar Power
These panels utilize 23% efficient Tongwei monocrystalline passivated emitter rear contact (mono-PERC) square-cut cells and the latest 10-busbar low-loss design, achieving high efficiency and positive power tolerance. Compared to traditional monocrystalline silicon designs, PERC cells offer better performance in low-light conditions, as some of the light that passes through the cells is reflected back and converted into electricity. The 10-busbar design reduces the module’s resistance and evenly carries current across the entire surface of the cell, ensuring minimal power loss within the module and significantly reducing uneven heating and hotspots on the cells.so,sungold Best portable solar panels for camping and outdoor.
