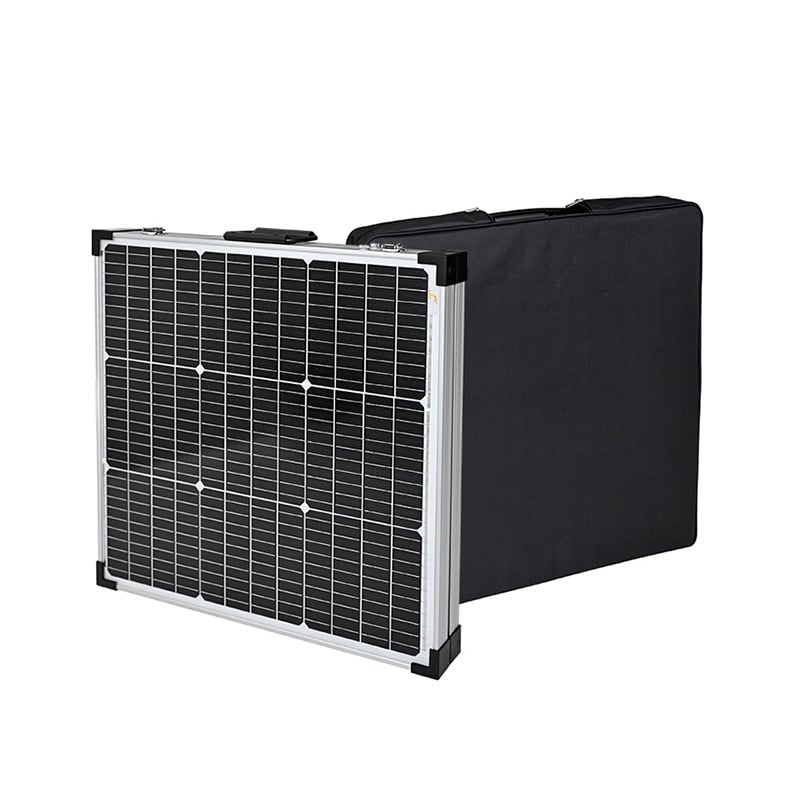

The power generation efficiency of the latest products of the SGF3-130W is improved with the progress of the cells. The current SGF folding solar panels adopt 182 monocrystalline silicon solar cells, and the cell efficiency is as high as 22.70%. High-quality cells can make solar panels have higher conversion efficiency.
The connection between the glass panel and the aluminum alloy frame of the SGF3-130W is encapsulated with solar silica gel, which will not allow any moisture to enter. The SGF3-130W glass foldable solar panel has an IP67 waterproof rating, and the whole product will not affect the work of the product if it is rained or splashed by water
RV
Camping
outdoor
There is an adjustable screw at the bottom of the stand. If you want to raise the solar panel up to absorb more sunlight, you can push the screw forward. If you want to lower the height, just push the screw back.
10 years warranty. SGF series solar panels have service life of 20 years.
Of course. The aluminum alloy frame and the handle of anti-aging material ensure that the product has good anti-corrosion and anti-aging ability. The surface is covered with glass material to better protect the cells and prolong the service life of the product.
If you’re going RV camping, picnics, or even unexpected power outages, the LVP series can be used for most of your base electrical loads. It can also be your reliable backup power source when you need power in extreme weather conditions.
The output efficiency of a solar panel may not be ideal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy sky, and accumulation of dirt and smudges on the surface of the solar panels, can result in reduced efficiency.
Maximum power(Pmax)
130W
Open-circuit voltage(Voc)
24.50V
Voltage at Pmax(Vmp)
20.90V
Short-circuit current(Isc)
6.53A
Current at Pmax(Imp)
6.23A
Cells efficiency(%)
22.70%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
0.04%/℃
Output power tolerance
±3%
Operating temperature
-10~60℃
Unfolding size
1183*625*30mm
Folding size
625*590*30mm
Warranty
10 year
