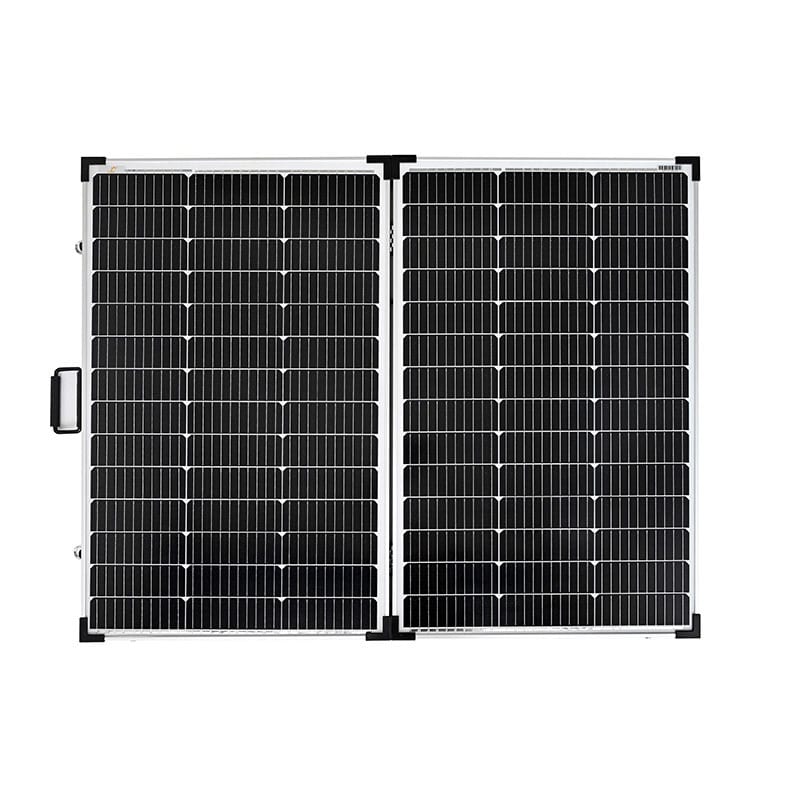

200W Briefcase Solar Panel Kit
Sungold 200 watt solar panel kit SGF-200W
The power generation efficiency of the latest products of the SGF series SGF3-200W briefcase solar panel kits is improved with the progress of the cells. The current SGF folding solar panels adopt 182 monocrystalline silicon solar cells, and the cell efficiency is as high as 22.70%. High-quality cells can make solar panels have higher conversion efficiency.
The connection between the glass panel and the aluminum alloy frame of the SGF series products is encapsulated with solar silica gel, which will allow any moisture to enter. built with glass and an aluminum frame with added corner protection, the 200W solar briefcase is IP67 waterproof and durable.
Water-resistant and dustproof with an IP67 rated junction box, this solar panel is built to withstand unpredictable weather conditions.
Foldable design, the two panels are connected by folding hinges in the middle, and the folding is more smooth. The handle is made of anti-aging material, which is sturdy and durable. The appearance design is also very beautiful, you can carry this product out for camping or RV travel like a suitcase.The solar panel briefcase can charge multiple devices at once, from your 12V DC-powered devices to portable power stations.

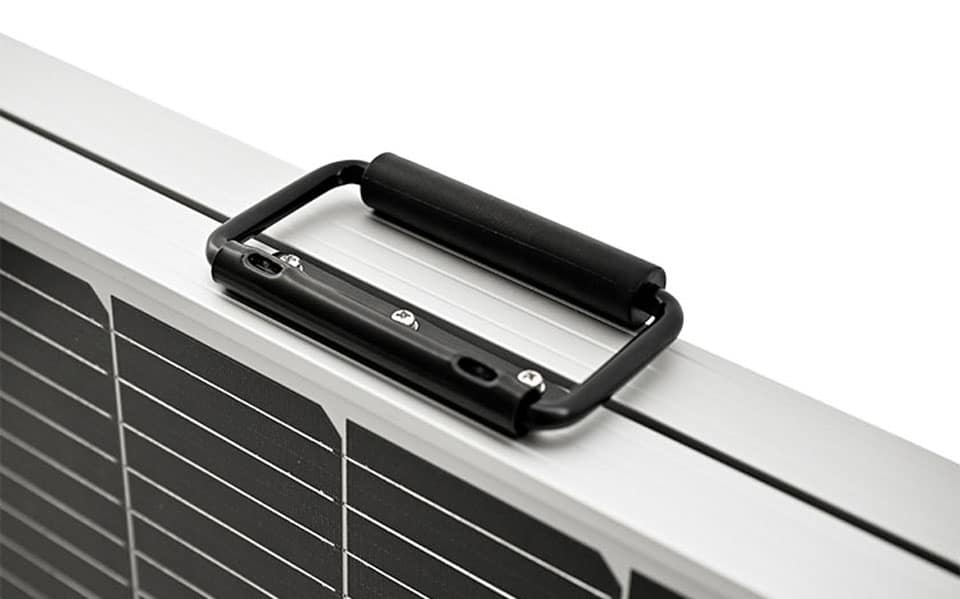

Transport and set up the 200W foldable solar panel with ease. The briefcase-style design is equipped with clasps to secure it shut and a handle for easy carrying. A sturdy, built-in kickstand ensures the solar panel sits securely on a flat surface for optimal sun intake.
RV
camping
outdoor
It is recommended to use boulder 200 solar panel briefcase to charge the battery, and run your radio with the battery.
Built for mobile living and off-the-grid adventures, the Sungold® 200W briefcase solar panel kits The solar panel briefcase can charge multiple devices at once, from your 12V DC-powered devices to portable power stations
Maximum power(Pmax)
200W
Open-circuit voltage(Voc)
28.50V
Voltage at Pmax(Vmp)
24.40V
Short-circuit current(Isc)
8.61A
Current at Pmax(Imp)
8.20A
Cells efficiency(%)
22.70%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
0.04%/℃
Output power tolerance
±3%
Operating temperature
-10~60℃
Unfolding size
1183*945*35mm
Folding size
945*590*35mm
Warranty
10 year
