SGF3-180W

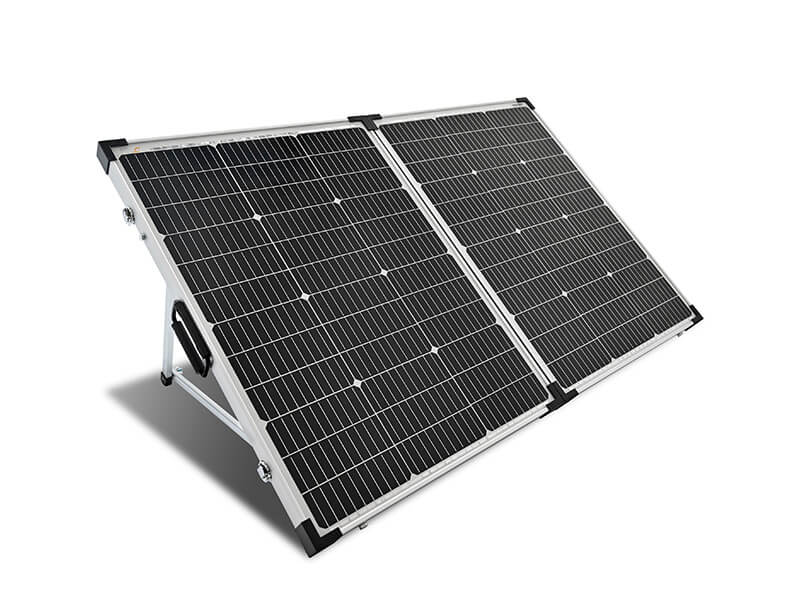

Sungold Glass Folding Solar Panels SGF3-180W

The folding solar panels consist of 2 monocrystalline panels with a foldable design. Using 182 mono cells, the conversion efficiency is as high as 22.70%. The SGF3 180W solar panels use glass as the surface material, and the connection between the panel and the aluminum alloy frame is encapsulated with solar silica gel to prolong the service life of the solar panel. The overall product design is mature, stable, and very cost-effective.
make the most of every sunlight
Features
High efficiency
Waterproof
Portability
T-U Bracket
High efficiency
The power generation efficiency of the latest products of the SGF series is improved with the progress of the cells. The current SGF3 180W folding solar panels adopt 182 monocrystalline silicon solar cells, and the cell efficiency is as high as 22.70%. High-quality cells can make solar panels have higher conversion efficiency.
Waterproof
The SGF series of solar panels are encapsulated with solar silicone at the junction of the glass panel and the aluminum frame to prevent any moisture from entering, and the SGF3 180W foldable solar panel is IP67 rated for water resistance, so it will not be affected by rain or water splashing.
Portability
Foldable design, the two panels are connected by folding hinges in the middle, and the folding is more smooth. The handle is made of anti-aging material, which is sturdy and durable. The appearance design is also very beautiful, you can carry this product out for camping or RV travel like a suitcase.
T-U Bracket
The bracket of this product is made of aluminum alloy material, which is very durable and corrosion-resistant. The stand can be adjusted flexibly, and it is equipped with screws at the bottom. This screw can be moved to better face the sun and absorb sunlight.
Applications

RV

solar panel for rv

camping

solar panels for camping

outdoor

Frequently Asked Questions

There is an adjustable screw at the bottom of the stand. If you want to raise the solar panel up to absorb more sunlight, you can push the screw forward. If you want to lower the height, just push the screw back.

10 years warranty. SGF series solar panels have service life of 20 years.

Of course. The aluminum alloy frame and the handle of anti-aging material ensure that the product has good anti-corrosion and anti-aging ability. The surface is covered with glass material to better protect the cells and prolong the service life of the product.

If you’re going RV camping, picnics, or even unexpected power outages, the LVP series can be used for most of your base electrical loads. It can also be your reliable backup power source when you need power in extreme weather conditions.

The output efficiency of a solar panel may not be ideal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy sky, and accumulation of dirt and smudges on the surface of the solar panels, can result in reduced efficiency.

Specifications

Maximum power(Pmax)

180W

Open-circuit voltage(Voc)

24.50V

Voltage at Pmax(Vmp)

20.90V

Short-circuit current(Isc)

9.04A

Current at Pmax(Imp)

8.62A

Cells efficiency(%)

22.70%

The maximum system voltage

100V DC(IEC)

Power temperature coefficient

-0.42%/℃

Voltage temperature coefficient

-0.32%/℃

Current temperature coefficient

0.04%/℃

Output power tolerance

±3%

Operating temperature

-10~60℃

Unfolding size

1183*815*35mm

Folding size

815*590*35mm

Warranty

10 year
