Introduction
As people’s awareness of environmental protection increases, people are paying more and more attention to the application of green energy. Solar energy, as a renewable energy source, is gradually gaining popularity. The combination of portable solar panels and portable energy storage makes the application of solar energy more extensive, suitable for outdoor travel, camping, first aid, field scientific research, and other scenarios. This blog will introduce in detail the scheme of matching solar panels for portable power stations to help users better choose portable modules and energy storage equipment.
1. Exploring the Structure and Materials of Portable Solar Panels
We currently generally refer to cloth-sewn charging bags, lightweight solar panels, one-piece charging bags, and rigid folding solar panels collectively as portable solar panels.
1.1 Structure
Such folding solar panels are usually composed of several parts, including solar cells, housing (made of high-strength, lightweight materials to be portable, waterproof, dustproof, impact resistant, etc.), connectors and brackets, etc. (some also come with controllers).
The solar cell is the core part of the module, which is the key to converting solar energy into electricity.
The housing is used to protect the solar cells and provide support.
Connectors are used to connect the solar module to other devices.
The bracket is used to hold the solar module at the best angle in the sun.
Solar panels are lightweight and portable, supplying a variety of portable electronic devices.
And portable energy storage devices usually consist of batteries, chargers, USB ports, and other parts that can store electrical energy and output power when needed to meet the different needs of users.
1.2 Materials used in solar panels
Most of the current portable solar modules are made of PET surface material, which is not wear-resistant and easily deformed in long-term use.
Sungold’s portable solar modules use surface materials that are imported using ETFE, which has shown amazing results in practical application scenarios.
So the main advantages of using ETFE material on the surface of portable solar modules (practicality and reliability) are as follows:
Lightweight: ETFE material is lighter than glass, which can reduce the weight of solar modules and improve the portability of the modules.
Anti-aging: ETFE material has good weathering and chemical resistance to UV and oxidation, maintaining long-term clarity and light transmission.
High light transmittance: ETFE material has high light transmittance, which can convert more solar energy into electricity and improve the efficiency of solar panels.
Self-cleaning: ETFE material has a smooth surface, is not easy to adhere to dust and dirt, and can be self-cleaning, reducing maintenance and cleaning costs.

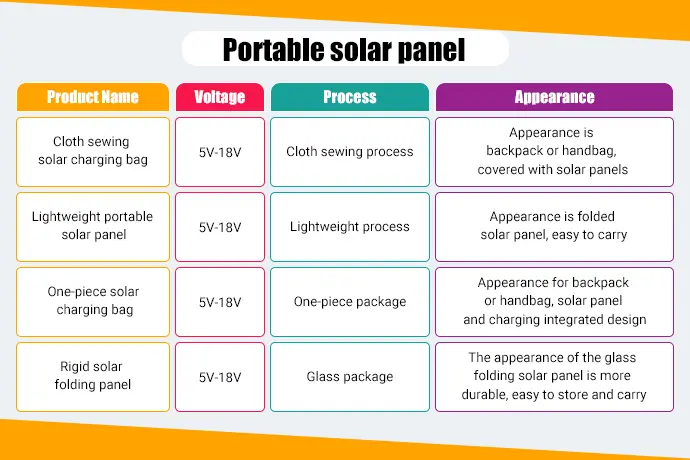

2. A Guide to the Different Types of Portable Solar Panels
There are many different types of portable solar panels on the market today, with many different specifications and functions. They can be distinguished according to the following points:
Power size: The power size of a solar panel determines its conversion efficiency and charging speed. Generally speaking, the higher the power of the solar panel, the faster the charging speed, but you also need to pay attention to the load demand and portability of carrying. Currently, there are 400-480W portable solar panels on the market, which are powerful and lightweight. 400W high-power solar panel of Sungold is only 12.6kg.
Folding: Different solar panels fold in different ways. Some are simple folding, some are foldable and removable, and you need to choose the right folding method according to the use of the scene. Most users choose the instant open and close. 1-2s will be able to open and fold up.
Quality and brand: The brand and quality of solar panels are also different. Choosing a well-known brand and good quality solar panels can ensure service life and charging efficiency. Especially for wholesale users should consider looking for professional manufacturers of portable products which have proven experience and products to avoid subsequent after-sales problems. Sungold Hi-Power series 400W portable solar panel has a five-year warranty. The quality of the product inspires confidence.
Additional features: Some solar panels also have waterproof, drop-proof, and other features; you need to choose the right additional features according to the actual use of demand.
3. Testing and Warranty of Portable Solar Panels
3.1 Testing
To maintain its leading position in the solar industry, Sungold Solar is committed to continuous investment in research and development, always maintaining the high quality and reliability of its products. Sungold Hi-Power series high-power portable solar panels have passed the professional test IEC 63163 test, fully demonstrating Sungold Solar’s technical advantages and comprehensive strength.
IEC 63163 is a test standard issued by the International Electrotechnical Commission (IEC) for consumer-grade photovoltaic designs and is designed to meet “moderate” outdoor exposure scenarios such as emergency power, hiking, and camping. Because consumer-grade PV products are often subjected to repeated deployments, drops, and forces, IEC 63163 adds mechanical durability testing, which places higher and more stringent requirements on the mechanical strength of module equipment to make it more durable.
Passing the test is Sungold’s popular Hi-Power series 400W portable PV series. It is made of ETFE surface material for outdoor weather resistance and excellent durability. The laminated outer film is highly resistant to UV rays, has good light transmission, and can increase the maximum power generation by up to 23%. Hi-Power series are made of industrial-grade photovoltaic materials and industrial-grade design standards, and their manufacturing process and process control are in line with IEC international standards. The product has also undergone strict waterproof testing by authoritative institutions and has an IP67 waterproof rating. Waterproof solar panels are the best choice for emergency power, hiking, camping, and other consumer scenarios.
Hi-Power series high-power solar panels have passed authoritative tests on consumer-grade PV modules, which not only demonstrates the quality standards as well as the value of the Hi-Power series as a consumer-grade PV category but also fully demonstrates Sungold Solar’s technical advantages and comprehensive strength in the PV industry and enhances the influence of Sungold brand with the leading position.

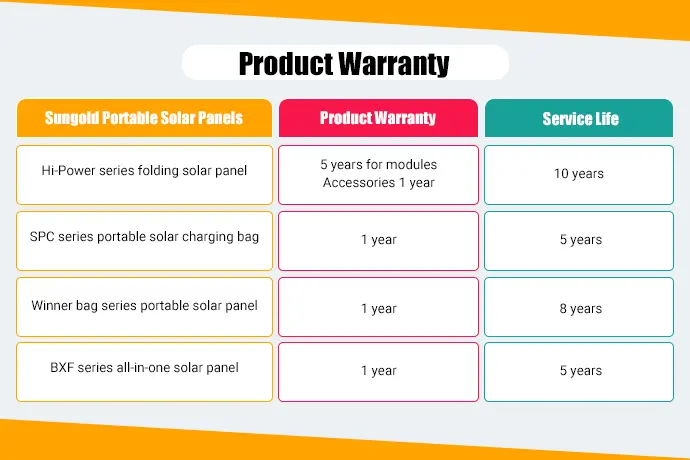

3.2 Warranty
Waterproof solar panels come with a 5-year warranty, proving Sungold’s confidence in their quality, durability, and longevity. You can contact us with any questions. We always provide quality products, impeccable service, and after-sales service to every customer. The warranty information for all of Sungold’s portable solar panels, compiled for you, is as follows:
4. A Guide to Choosing the best portable power station with solar panels for Your Needs
When selecting portable solar panels and portable power stations, the following aspects need to be considered:

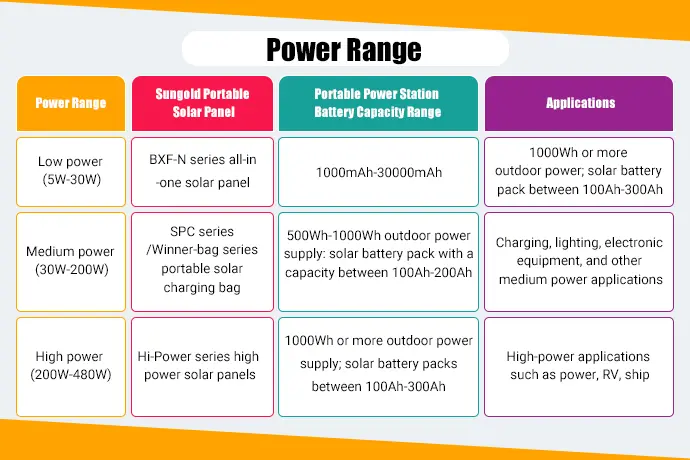

4.1 The power range of solar panels
The power of the solar panel directly affects the size of its electrical output, and you need to choose the right solar panel according to the use of scenarios and power requirements. Usually, the power of solar panels is between 5W-400W. Sungold can achieve the maximum power of 480W portable solar modules.
Low-power solar panels of 5W-30W are suitable for charging, lighting, and other low-power applications. For example, mobile devices that need to be charged during outdoor camping, hiking, travel, and other activities, such as cell phones, cameras, tablets, etc., can be charged by low-power solar panels.
Medium-power solar panels of 30W-100W are suitable for medium-power applications. For example, mobile devices that need to be charged during activities such as outdoor camping, hiking, and travel, such as laptops, wireless routers, and rechargeable batteries, can be charged by medium-power solar panels.
High-power solar panels of 100W-200W are suitable for high-power applications such as 200kwh-50kwh energy storage devices, electric power, automobiles, and ships. RV solar panels are suitable for off-grid application scenarios.
High-power solar modules of 400W or more are suitable for devices with more than one degree of power.
4.2 Power and weight of portable power station
The power and weight of the portable power station are also important factors to consider, and one needs to choose the right one according to the use of scenarios and power needs. Usually, the power of a portable power station is between 10000mAh-50000mAh, and the weight is between 0.3-1.5kg.

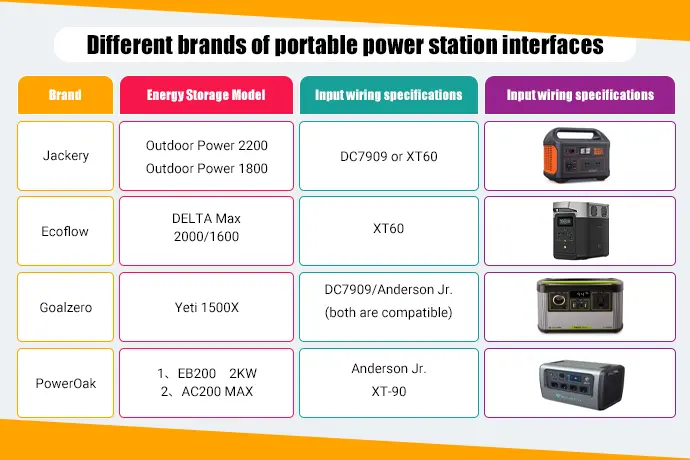

4.3 Compatibility and reliability of equipment
When choosing a portable solar panel and a portable power plant, you need to consider the compatibility and reliability of the two. Ensuring that the power output and input interfaces between the solar panel and the portable power station match, as well as the brand and reliable quality of the device, will ensure the effectiveness and safety of the device.
4.4 Portability and durability of the equipment
In outdoor scenarios, the portability and durability of the equipment is also a factor to consider. Choosing compact, lightweight, and easy-to-carry equipment can facilitate the use of users outdoors. At the same time, choosing equipment with strong and durable materials can ensure the stability and durability of the equipment when used outdoors.
It is worth noting that when connecting solar panels to portable power stations, three sets of solar panels and less than three sets can be connected in multiple sets in series. More than three sets of solar panels need to be connected in parallel.

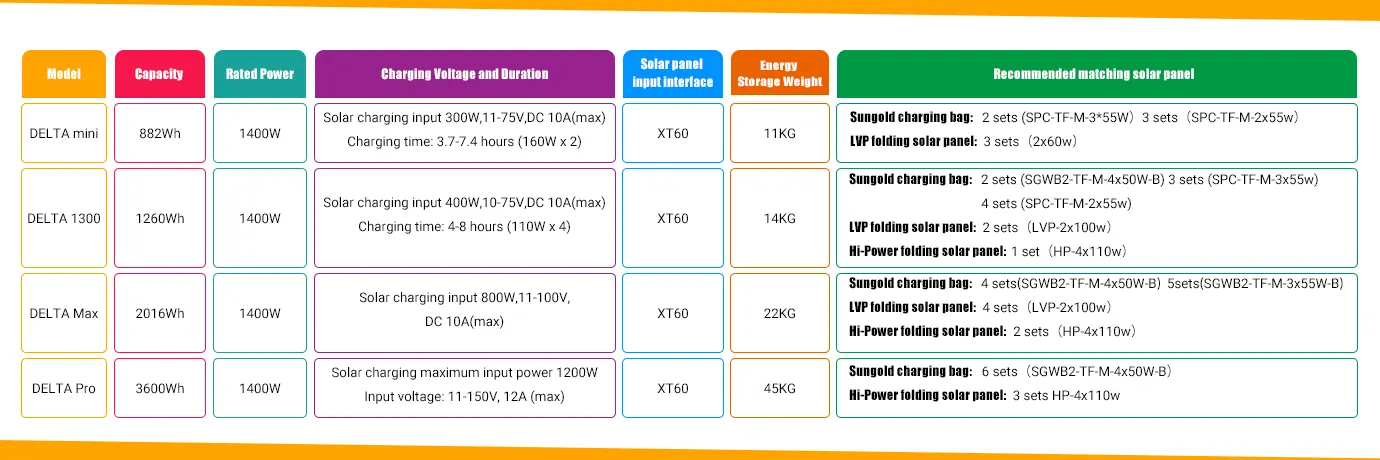

5. A Combination Plan of Portable Solar Panels and Portable Power Station
When choosing a portable power station and solar panels, don’t blindly match them. There are a dizzying number of energy storage brands on the market to choose from, but not just any portable power station will work with the panels, so you need to be careful to find the best match. You need to consider the brand, model, interface type, and output power of the portable power station as other factors. Below, Sungold has compiled the basic information about the ecoflow portable power station with matching solar panels. The best use can be achieved by matching portable power stations with solar panels each other.
This article does not discuss large-scale energy storage. You can refer to this pairing scheme if you choose a portable power station with solar panels. It is worth mentioning that Sungold’s portable solar panels can be designed and customized according to your actual needs in terms of power range, color, and wiring, not just limited to the existing specifications.
If you have any questions, such as not knowing enough about our products? Don’t know how to make a reasonable match? You can contact us at: sales@sungoldsolar.cn/Phone: +86-(0)755-2968 5821. Each person’s actual situation is different, and the matching of solar panels with portable power stations is also different. After understanding your specific situation, we will provide the best off-grid solar solution for you.
Real Customer Comments on Our Portable Solar Panels
Sungold always analyzes and considers the needs of our customers from their point of view rather than from our interests and perspectives. We respect and defend the interests of our clients as fully as possible. Central to our way of working is a focus on building strong relationships with our customers. The level of customer satisfaction also represents the value of our products.
In Sungold’s customer satisfaction survey, 75% of our customers said they were satisfied with our speed of delivery. 79% confirmed that our service team handled their needs and questions with patience and care. 82% said they would do business with Sungold again.
Sungold portable solar panels have earned the appreciation and trust of our customers.
They say that the combination of Sungold portable solar panels and portable power stations can provide more flexible solar solutions in different scenarios. This can meet the needs of users who want to use electricity anytime and anywhere. Compared to rigid solar panels sturdy and stable on balconies and rooftops to provide electricity to homes. The portable power station with panels is more flexible and can be moved at any time, bridging the gap between outdoor solar energy and greatly extending people’s travel time.
There is a lot of value and significance in pairing solar panels with portable power stations. Sungold Solar aims to provide the best solar panels to customers around the world while working to provide sustainable and environmentally friendly energy solutions.
Your most sincere solar energy partner – Sungold Solar.
