Sungold Integrated solar panels BXF-2*10W
Sungold BXF-2*10W foldable solar panel weighs 0.55kg, 445*325*3mm (unfolded), 325*222*25mm (folded), easy to carry, install and transport.
Yes, our 20W solar panel supports fast charging. If the solar panel is energized, the LED light will light up red. If there is no sunlight, the red light will turn off. Since the output power varies with sunlight exposure, it is normal for the light to flicker sometimes.
We recommend that you connect your USB device to this solar charger in a place with direct sunlight and no shade. It is not recommended to use portable solar panels in rainy and humid environments as solar panels can only power your device quickly in full sunlight.

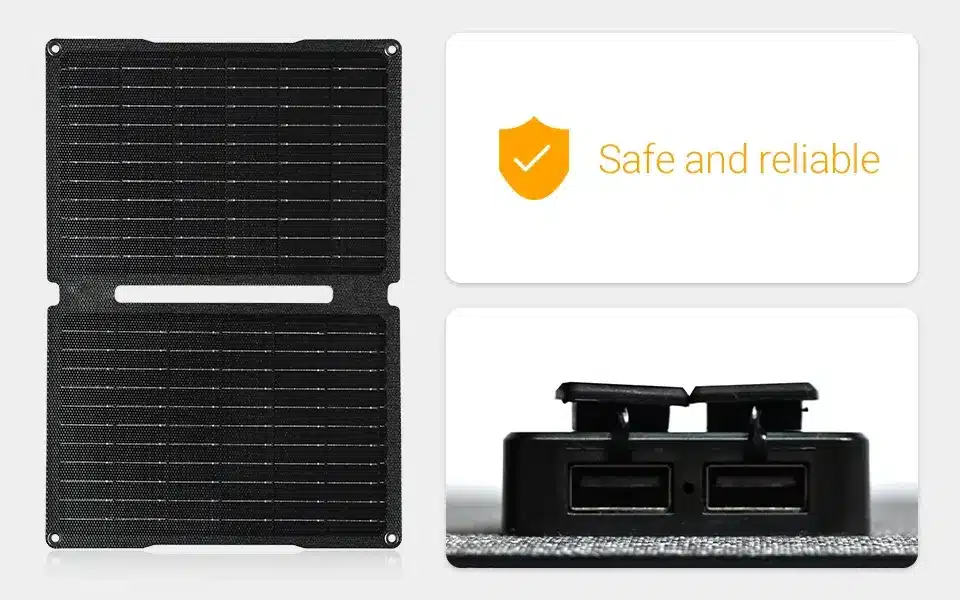

With 2 USB output ports, you can charge 2 devices at the same time. If thick clouds pass by, it will pause charging and restart when the sun shines again.
The Sungold BXF-2*10W Solar Panel is compatible with most cell phones, mobile power, tablets, Kindle and more. You can charge up to 2 USB devices at the same time.
Maximum power(Pmax)
20W
Open-circuit voltage(Voc)
8.1V
Voltage at Pmax(Vmp)
7.0V
Short-circuit current(Isc)
3.00A
Current at Pmax(Imp)
2.86A

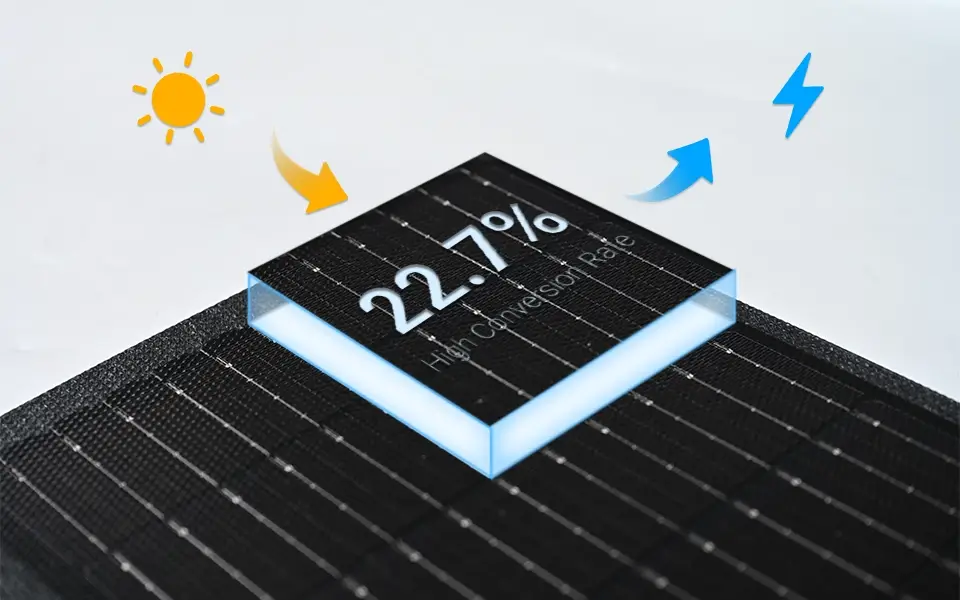

Cells efficiency(%)
22.70%
The maximum system voltage
DC 200
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.05%/℃
Operating temperature
-10~60℃
Weight
0.55kg
Folding Size
325*222*25mm
Unfold Size
445*325*3mm
Warranty
1 Year
