BXF-N-D-2*7W

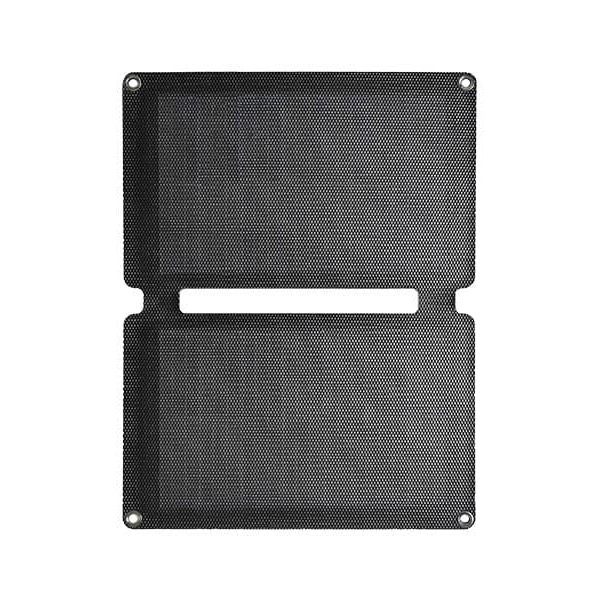

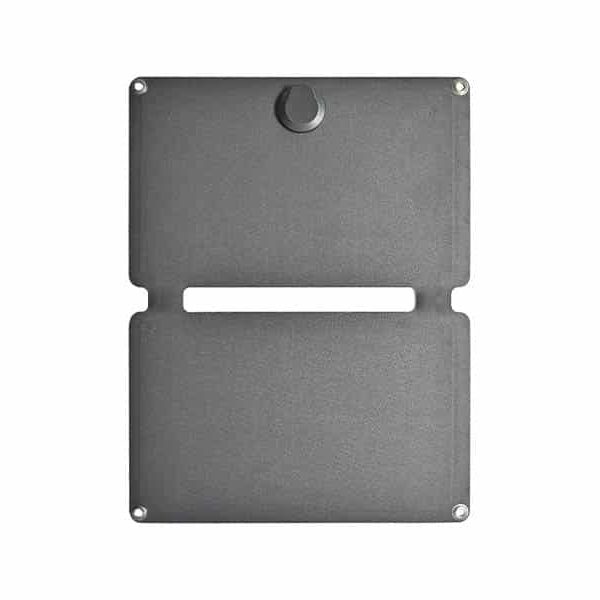

Sungold portable solar kits BXF-N-D-2*7W
The Sungold solar panel backpack BXF Series (BXF-N-D) 2*7W portable solar panel uses advanced technology to laminate the ETFE surface material, solar cell, and backsheet together, using laser cutting and perforation technology for a better appearance. Most importantly, it is splash-proof as well as having a longer service life.
The special ETFE polymer surface protects the solar panel from occasional rain or moisture fog and is more durable than traditional panels. The Sungold USB portable solar charger provides a miniature power plant to generate electricity for your phone (Android and Apple).
make the most of every sunlight
Features
Waterproof with an IP65 rating
Lightweight and foldable
Great adaptability
Stable output

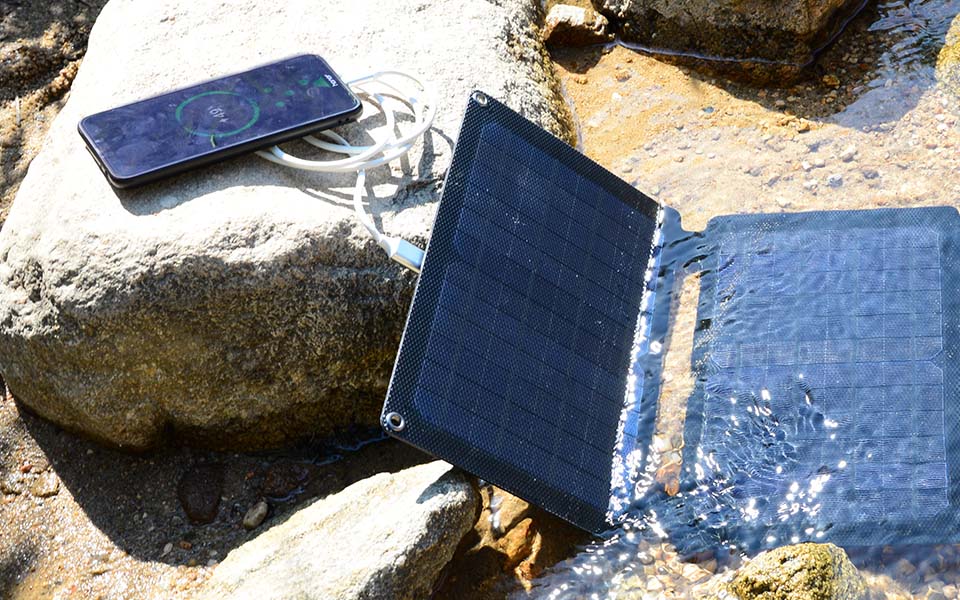

Waterproof with an IP65 rating
This Sungold BXF Series BXF-N-D-2*7W all-in-one portable solar panel has an IP65 waterproof rating, making it not only splash-proof but also easy to clean and durable. The entire portable solar panel is very compact and easy to carry. As a portable solar panel cell phone charger, you can charge your cell phone at any time when you are outdoors.
Lightweight and foldable
This Sungold BXF series BXF-N-D-2*7W all-in-one portable solar panel features a user-friendly design with four metal-reinforced hook holes on the solar panel. The portable solar panel is made of two 7W solar panels connected and weighs only 0.5kg, lightweight and foldable. You can easily hang the solar panel on your tent or backpack.
Great adaptability
This Sungold BXF-N-D-2*7w portable solar panel USB charger powers up for a long time. There is light and there is power, direct solar charging, and portable charging. The USB cable has three phone charging ports (lightning port, Type-C port, and Micro USB port), so you can charge with different models of phones.

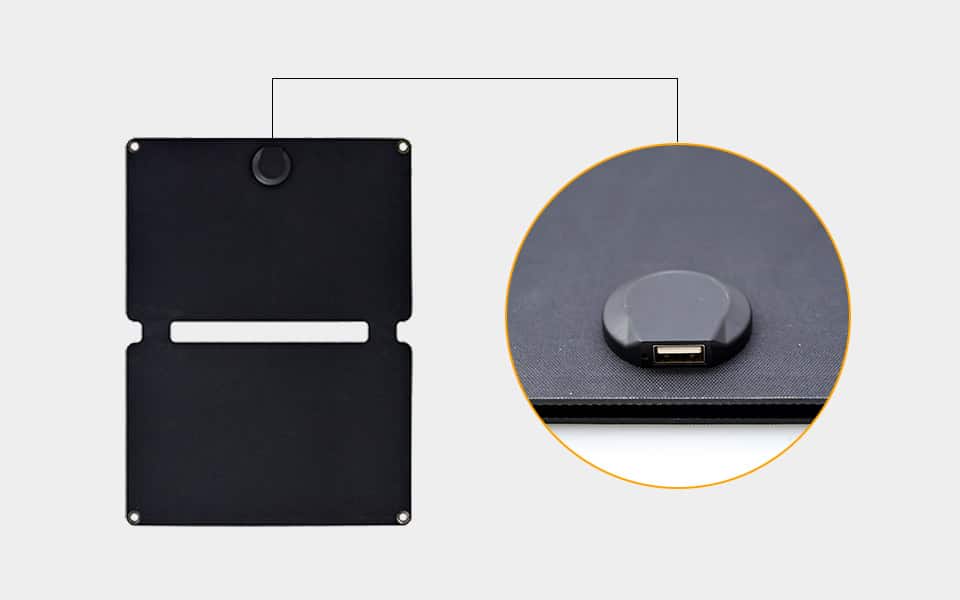

Stable output
This foldable portable solar charger 14W is equipped with a single USB output port and 5V regulated output for charging small devices such as smartphones. The portable solar panel features a one-piece laminated design that is durable and resistant to wear and tear, allowing for continuous power output and ensuring safe and reliable charging.
Applications
Frequently Asked Questions
What is the mailing package for this Sungold BXF Series (BXF-N) 14W All-in-One Portable Solar Panel?
Normal mailing box: 515*50*480mm inner diameter; outer box: 555*300*515mm outer diameter.
Sungold BXF series (BXF-N) 14W solar phone charger has IP65 waterproof rating. It is made of ETFE surface material, which is not only splash-proof, but also resistant to corrosion and high temperature, making it ideal for outdoor activities such as camping, hiking, and picnics. Please note that the USB port is not waterproof, so please keep it dry.
The solar panel weighs only 1.04 pounds (0.47kg) and is foldable. When folded, it is about 11.4 inches (29.2cm) long, 7.7 inches (19.5cm) wide, and 0.6 inches (1.5cm) thick. When unfolded, it is about 15.4 inches (39.2cm) long, 11.4 inches (29.2cm) wide, and 0.12 inches ( 0.3cm).
Sungold BXF series (BXF-N) 14W solar panel uses a monocrystalline 156 solar cell with a solar cell conversion efficiency of 20.03%.
Hello, it is made of high-quality ETFE surface material, which is durable and long-lasting.
Specifications
Maximum power(Pmax)
14W
Open-circuit voltage(Voc)
9.40V
Voltage at Pmax(Vmp)
8.00V
Short-circuit current(Isc)
1.86A
Current at Pmax(Imp)
1.75A
Cells efficiency(%)
22.00%
The maximum system voltage
0.00
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.05%/℃
Output power tolerance
±5%
Operating temperature
-10~60℃
Weight
0.50kg (1.10lbs)
Folding Size
285*185*15mm
Unfold Size
375*285*3mm
Warranty
1 year
