SPC-TF-M-3*55W

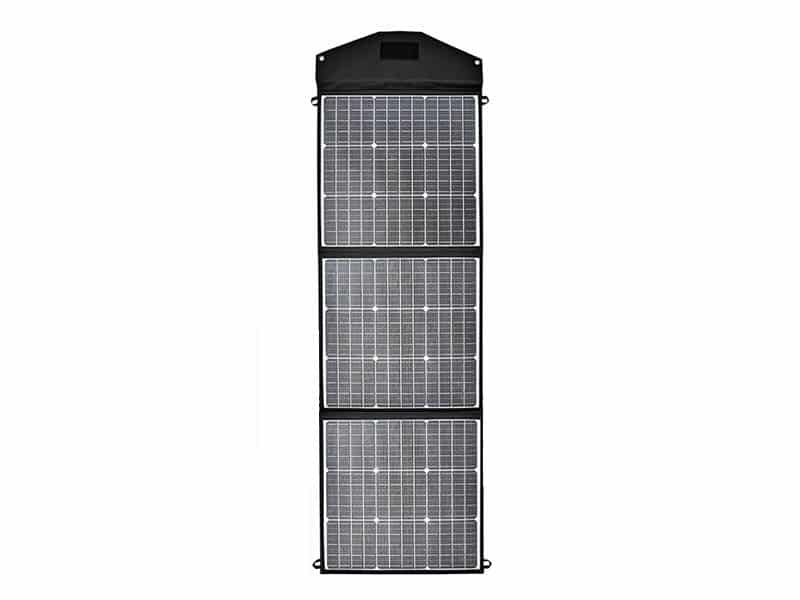

Sungold 165 watt solar panels SPC-TF-M-3*55W
Foldable Solar Panels SPC-TF-M-165W
The Sungold SPC series is one of the most powerful foldable solar panels on the market today. Designed with both convenience and practicality in mind, the SPC portable solar folding bag features portability and high power for outdoor use. This SPC-TF-M-165W solar charging pack is made up of three 55W solar panels, which are approximately 51 inches when opened and only 22 inches when folded
SPC series solar panel is the best portable solar panel for RV or camping with lightweight and high output power. The folding solar panel can be used in an off-grid environment, allowing you to enjoy the tranquility of the outdoors.
Mono Solar Cells
Monocrystalline silicon solar cell
Sungold SPC-TF-M-165W uses A-grade monocrystalline silicon solar cells with an efficiency of up to 22.8%. It is only 0.78 inches (20mm) thick when folded and weighs only 9.92 pounds (4.5 kg), making it the perfect choice for your emergency and outdoor life.
This Sungold SPC-TF-S-135W lightweight solar panel is powerful and weighs only 8.60 pounds. This solar panel is foldable, measuring approximately 61 inches long and 22 inches wide when open. When folded, it is approximately 22 inches long and 17 inches wide with 3 adjustable brackets and 8 hanging holes for easy storage.
Rated Power
165W
Open-circuit voltage(Voc)
26.27V
Voltage at Pmax(Vmp)
22.32V
Short-circuit current(Isc)
6.41A
Current at Pmax(Imp)
6.05A
Solar cell
Mono
Cells efficiency(%)
24.40%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.43%/℃
Voltage temperature coefficient
-0.34%/℃
Current temperature coefficient
0.05%/℃
Certifications
CE,ROHS
Output power tolerance
±3%
Operating temperature
-10~60℃
Weight
4.5kg
Folding Size
560*440*20mm
Unfold Size
1525*560*4mm
Warranty
2 years
