SGD-M2-100W

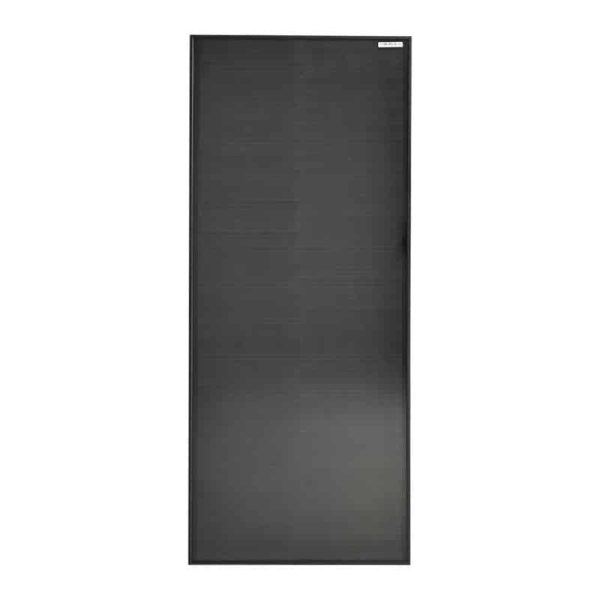

Sungold Solar PERC Shingled-cell Solar Panel SGD-M2-100W
Sungold 100W monocrystalline photovoltaic panel with conversion efficiency up to 22%, has a longer lifespan. To prevent solar cells from overheating, our solar panels are equipped with high-performance bypass diodes to minimize power drop due to shading.

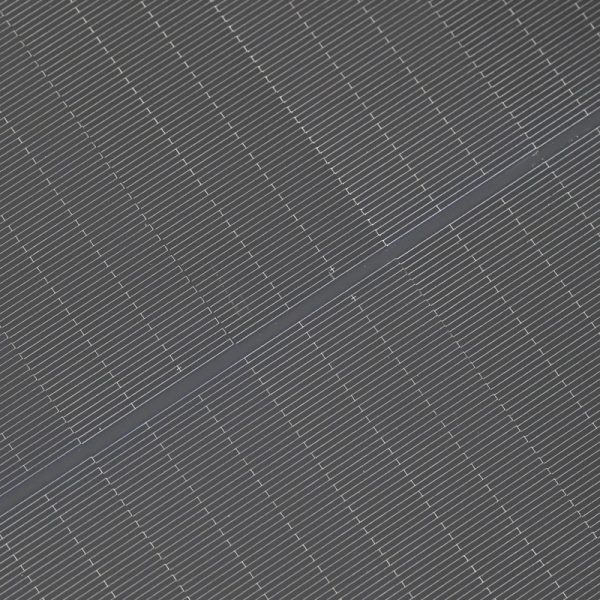

In our Sungold solar panels, each sub-string consists of 36~40 connected cut cells in a way that ensures that there is no distance between cells.This innovative technology maximizes the space for the cell array and significantly improves the panel’s efficiency.
Pre-drilled holes on the back of the panel allow for quick installation and fixing, ideal for off-grid applications including RVs, roofs, cabins, yachts, etc.
make the most of every sunlight
Features
Shingled process
Higher Efficiency
Waterproof
Easy installation

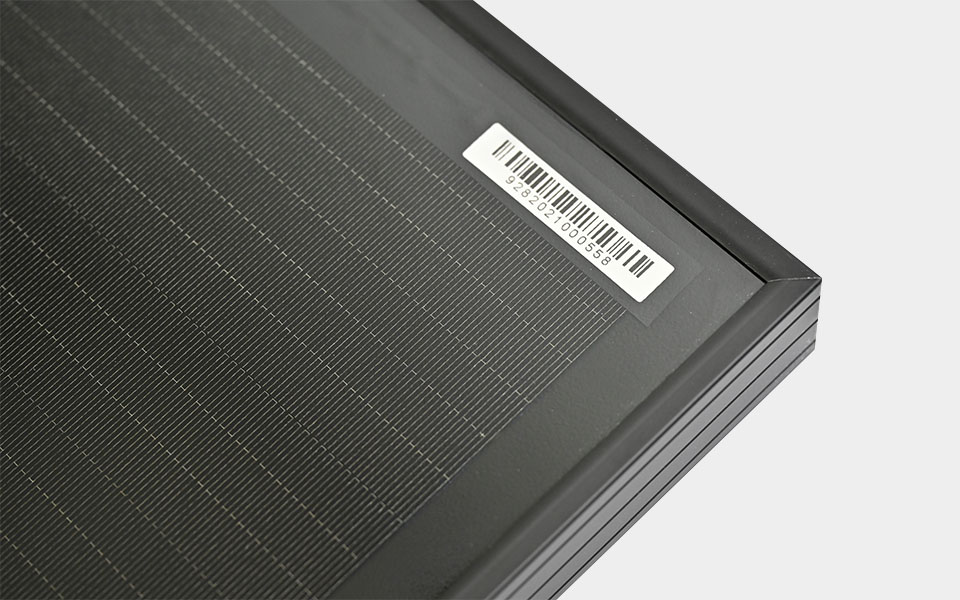

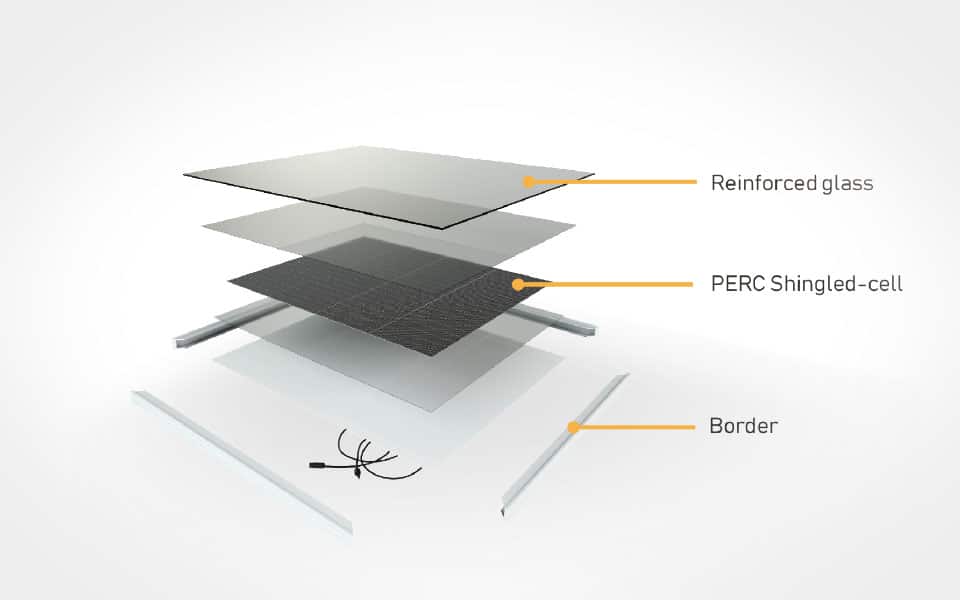

Shingled process
The shingle process uses the latest mono solar cells, using a special welding method to connect the cell. The area under the same power output is smaller, the front can be more strongly affected, and it is also one of the latest production processes in the solar industry.
Higher Efficiency
The SGD series solar panel 100 watt product uses the latest technology mono silicon solar cells, using multi-layer cell technology to make it the highest quality, with a conversion efficiency of up to 22%.
Waterproof
SGD series perc shingled-cells solar panels are the most mature design. The connection between the glass panel and the aluminum frame is encapsulated with solar silica gel, which will not allow any water vapor to enter. SGD series photovoltaic panel has IP67 waterproof grade. The whole product will not be affected by rain or water splashing. It can work outdoors for a long time without worrying about any quality problems.

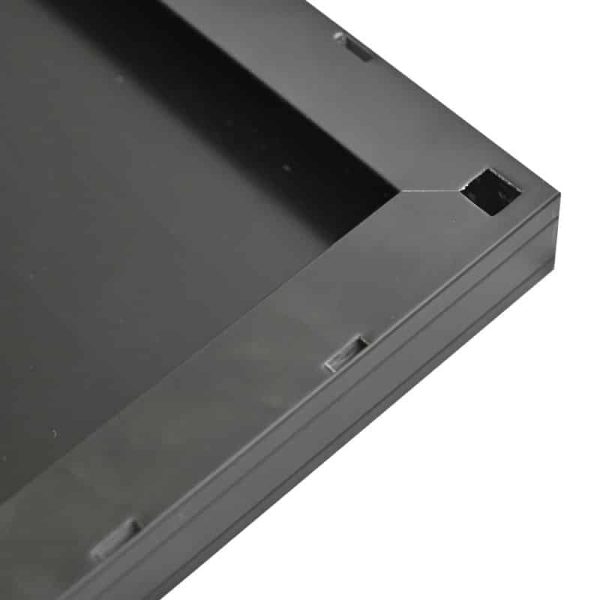

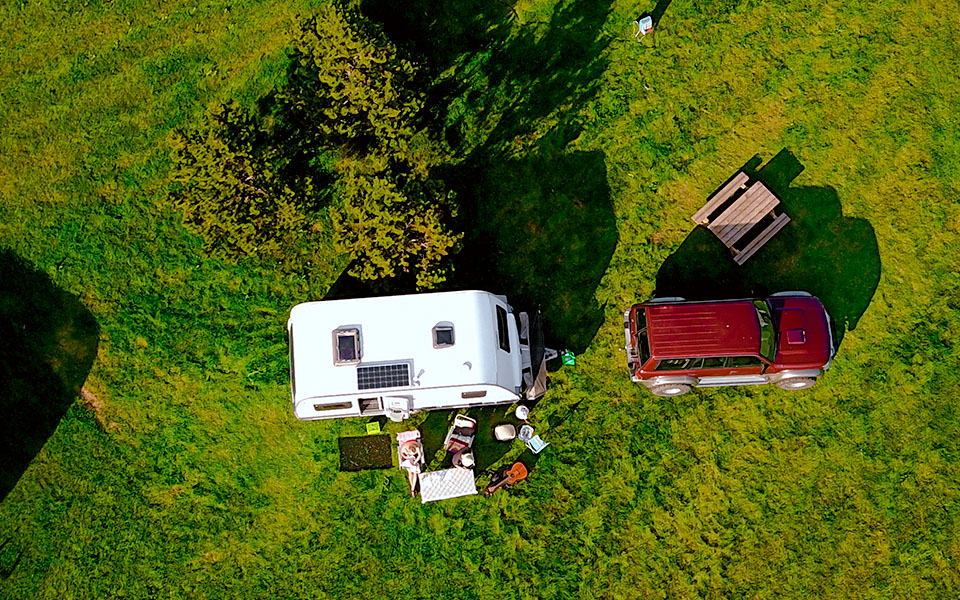

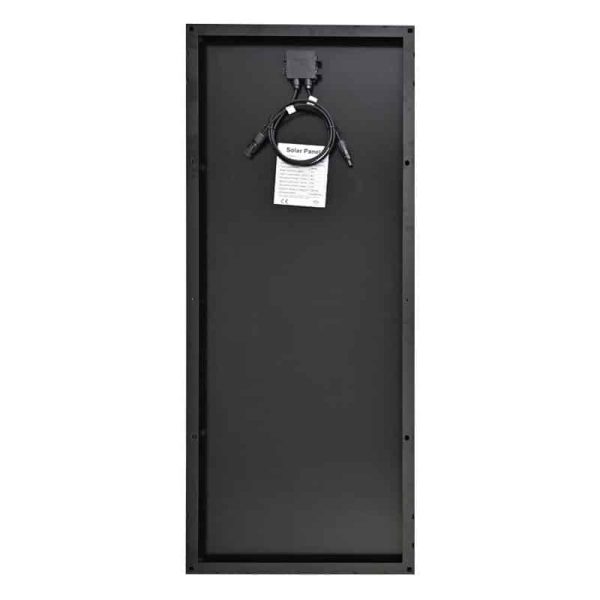

Easy installation
Pre-drilled holes on the back of the solar panel allow rapid mounting and fixing. It is ideal for off-grid applications including RVs, rooftops, cabins, yachts, etc., and suitable for most solar panel fixing brackets on the market.

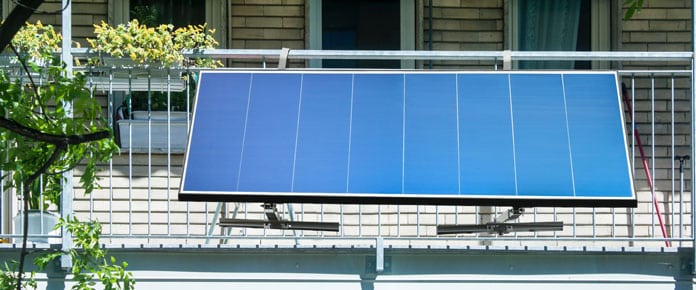

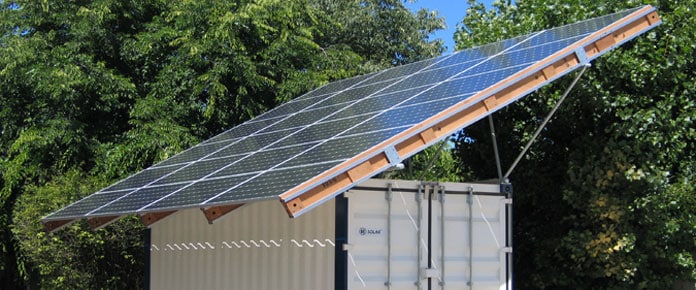

Applications
Frequently Asked Questions
SGD solar glass panel is one of the most mature products, although the weight of the product is relatively thick, but stable and trouble-free use is greatly reducing the customer’s after-sales worries.
Conventional RV roof, roof off grid system, traffic road peripheral products, field fixed use, etc.
Yes, the USB power comes from the battery and the controller will protect the battery from overcharging and overdischarging.
The low voltage disconnect is set in most of chargers / controllers, not on solar panel. My suggestion is not to charge yours battery without controller, you will damage your battery.
I don’t think so. You need a MC4 adapter to fit your generator.
Yes. It reduces output dramatically as in all solar panels.
Panels are not affected by ice, snow, or rain, but you lose some efficiency in bad weather
Specifications
Maximum power(Pmax)
100W
Open-circuit voltage(Voc)
26.9V
Voltage at Pmax(Vmp)
22.8V
Short-circuit current(Isc)
4.65A
Current at Pmax(Imp)
4.39A
Cells efficiency(%)
22.0%
The maximum system voltage
1000V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.07%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Weight (with Kickstand Case)
6.06kg
Size
1210*460*30mm
Warranty
10 years
Not sure what your needs
There are three things we need to determine what you will need for your solar generator
What type of solar panel do you need?
What size of solar panels and batteries will be needed
What is the total watts you will be needing and how with your generator be used?
