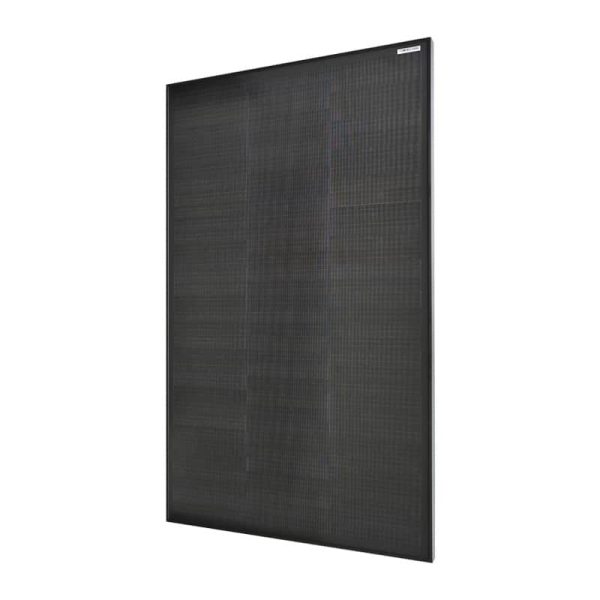

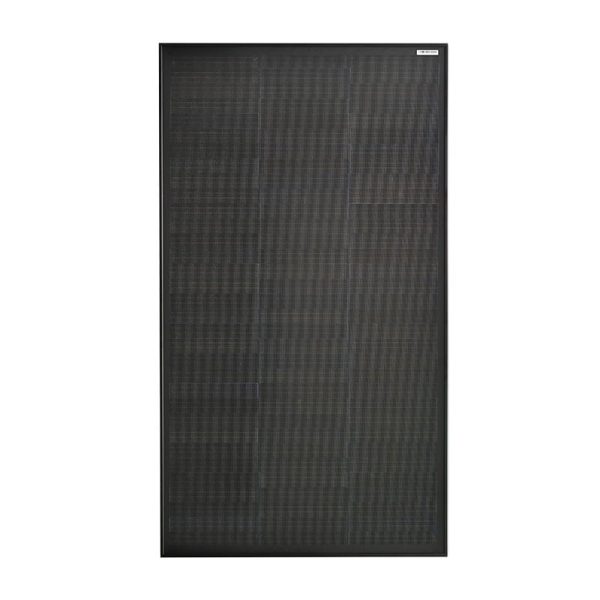

Sungold 150W monocrystalline photovoltaic panel with conversion efficiency up to 22%, has a longer lifespan. To prevent solar cells from overheating, our solar panels are equipped with high-performance bypass diodes to minimize power drop due to shading.

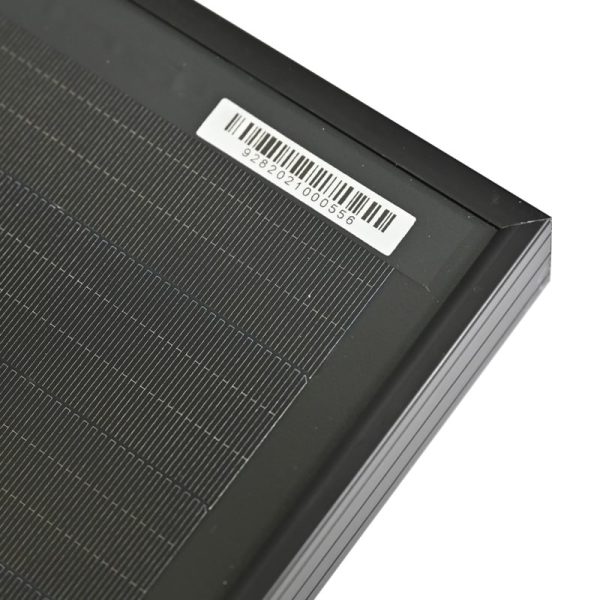

In our Sungold solar panels, each sub-string consists of 36~40 connected cut cells in a way that ensures that there is no distance between cells. This innovative technology maximizes the space for the cell array and significantly improves the panel’s efficiency.
make the most of every sunlight
Shingled process
Shingled process
The shingled process uses the latest mono solar cells, using a special welding method to connect the cell. The area under the same power output is smaller, the front can be more strongly affected, and it is also one of the latest production processes in the solar industry.

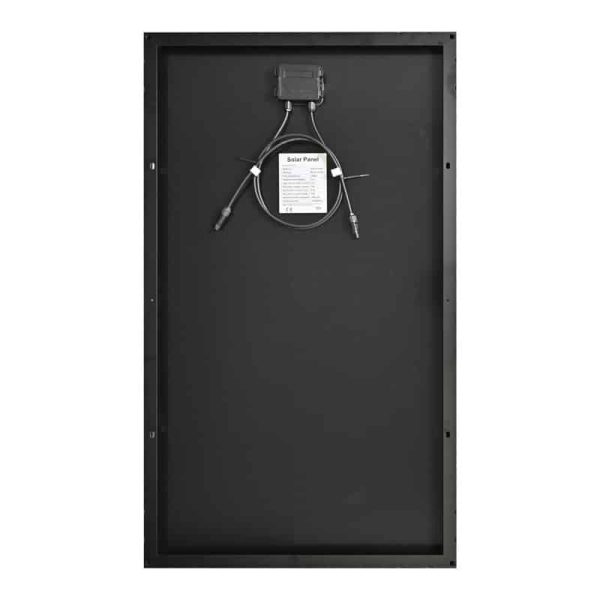

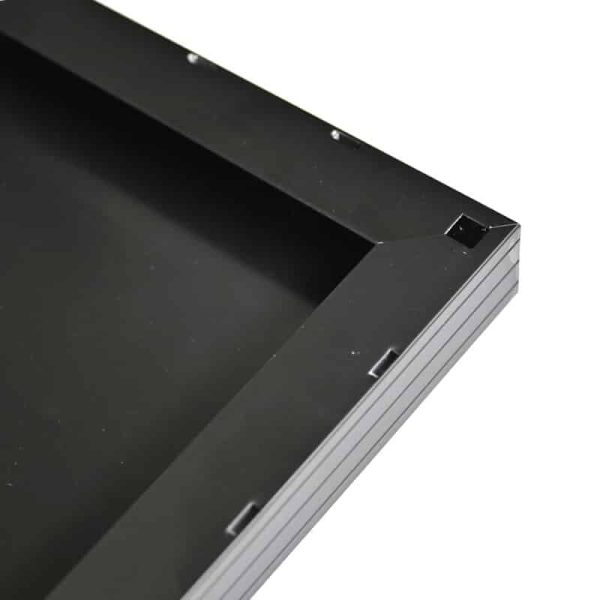

Pre-drilled holes on the back of the solar panel allow rapid mounting and fixing. It is ideal for off-grid applications including RVs, rooftops, cabins, yachts, etc. and suitable for most solar panel fixing brackets on the market.
Yacht
Maximum power(Pmax)
150W
Open-circuit voltage(Voc)
26.9V
Voltage at Pmax(Vmp)
22.8V
Short-circuit current(Isc)
6.97A
Current at Pmax(Imp)
6.58A
Cells efficiency(%)
22.0%
The maximum system voltage
1000V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.07%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Weight (with Kickstand Case)
8.83kg
Size
1210*670*35mm
Warranty
10 years
