Sungold Solar PERC Shingled-cell Solar Panel SGD-M2-295W
Sungold 295W monocrystalline photovoltaic panel with a conversion efficiency of up to 22%, has a longer lifespan. To prevent solar cells from overheating, our solar panels are equipped with high-performance bypass diodes to minimize power drop due to shading.

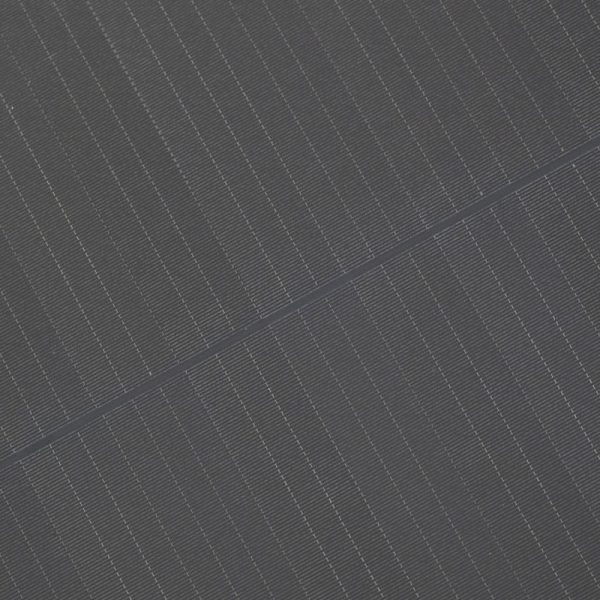

In our Sungold solar panels, each sub-string consists of 36~40 connected cut cells in a way that ensures that there is no distance between cells. This innovative technology maximizes the space for the cell array and significantly improves the panel’s efficiency.
Shingled process
Shingled process
The shingled process uses the latest mono solar cells, using a special welding method to connect the cell. The area under the same power output is smaller, the front can be more strongly affected, and it is also one of the latest production processes in the solar industry.
The SGD series solar panel 300 watt product uses the latest technology mono silicon solar cells, using multi-layer cell technology to make it the highest quality, with a conversion efficiency of up to 22%.

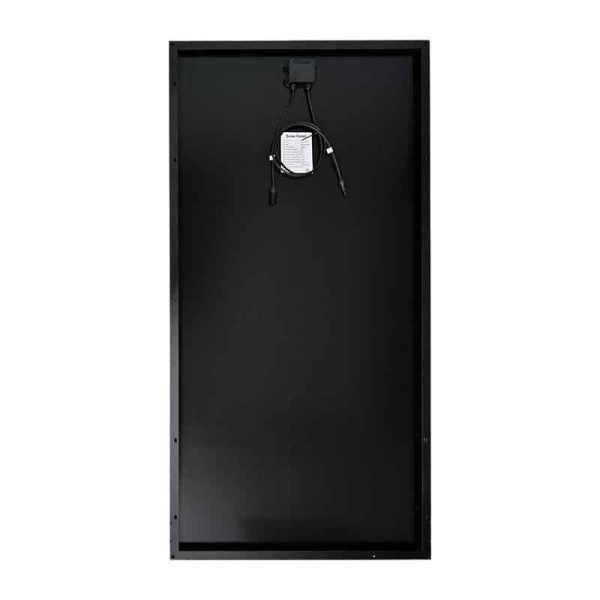

Pre-drilled holes on the back of the solar panel allow rapid mounting and fixing. It is ideal for off-grid applications including RVs, rooftops, cabins, yachts, etc. and suitable for most solar panel fixing brackets on the market.
Yacht
Maximum power(Pmax)
295W
Open-circuit voltage(Voc)
32.3V
Voltage at Pmax(Vmp)
27.4V
Short-circuit current(Isc)
11.41A
Current at Pmax(Imp)
10.77A
Cells efficiency(%)
22.0%
The maximum system voltage
1000V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.07%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Weight (with Kickstand Case)
17.24kg
Size
1440*1100*35mm
Warranty
10 years
