SGM Series
Off grid solar system SGM series rigid solar panels as a standard solar module with monocrystalline solar cells for high-efficiency output.
Stable output
High efficiency
Long service life
Strong impact resistance
IP67 waterproof grade
Make your roof solar panels power you!

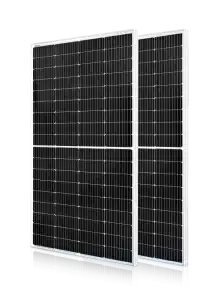

SGM SERIES RIGID SOLAR PANEL
Sungold SGM series rigid solar panels is cost-effective. It has a favorable price and long service life.
Sungold SGM series rigid solar panels are waterproof and have stable output. You can leave the product outdoors for a long time without worrying about any quality issues.

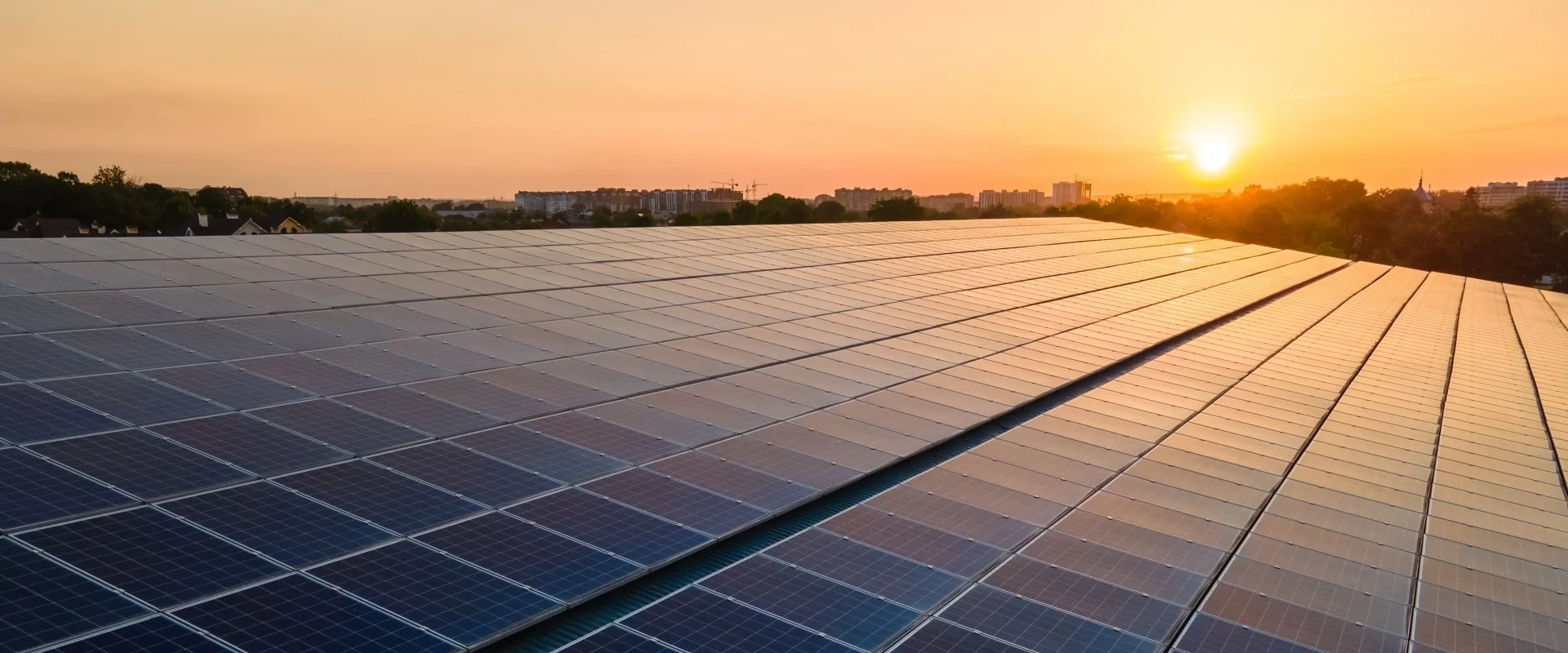

Off Grid Solar System SGM Series
Sungold Off Grid Solar SystemSGM Series rigid solar panels can be used in a variety of off-grid scenarios such as rooftops. It is durable and cost-effective.
Understand The Technology
The performance of the SGM series rigid solar panel was tested under the standard test
High efficiency
Sungold provides customers worldwide with fully rigid-frame monocrystalline solar modules for a wide range of applications.
Easy to install and stable output
SGM series rigid solar panels can be fixed for use. With the special bracket, it can be easily installed.
Strong impact resistance
Off-grid living kit solar panels have excellent protection against high wind pressure and high snow accumulation.
Certifications

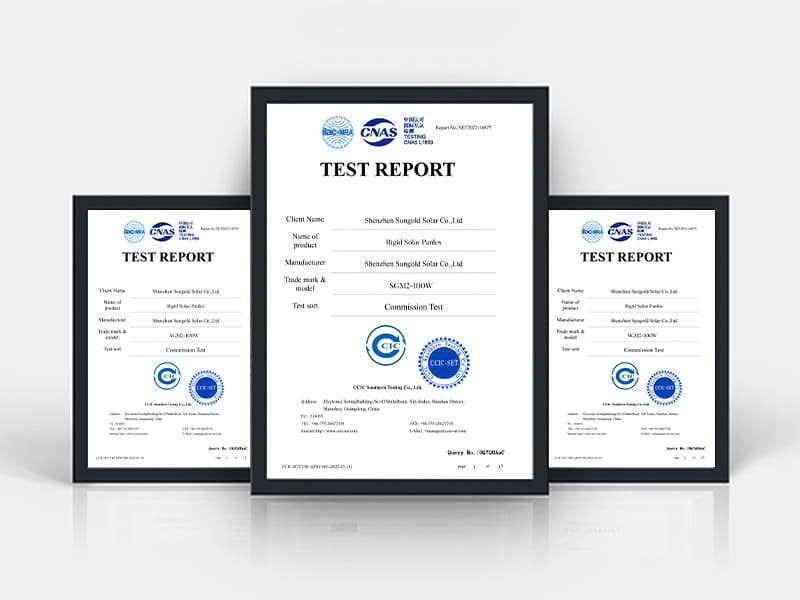

SGM SERIES TESTING
SGM series has been tested for IEC 61215, including the product flammability test, the fire test, the visual inspection, etc. SGM series solar panels were tested for wiring cables, connectors, junction boxes, solar backsheets, PV module interiors, bypass diodes, materials, and other parts. The performance of SGM series solar panels is excellent.
Video
introduction
Sungold SGM Series rigid solar panels can be used in a variety of off-grid scenarios, including rooftops, and are durable and cost-effective.
Product Specifications

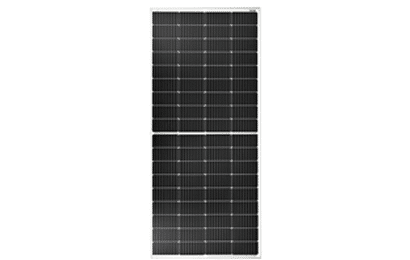

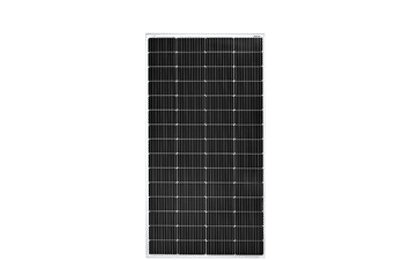

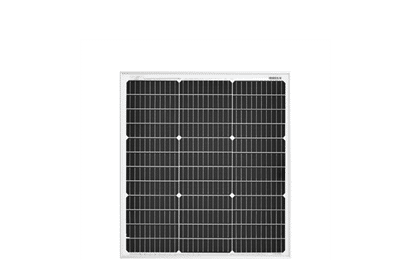

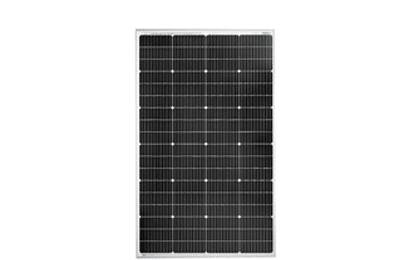

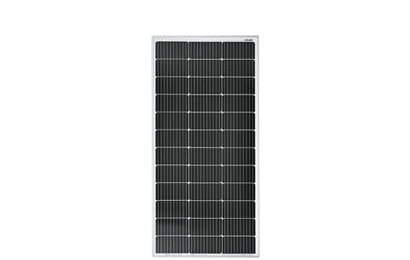

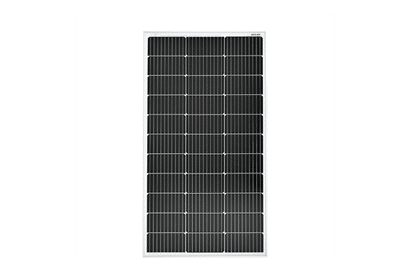

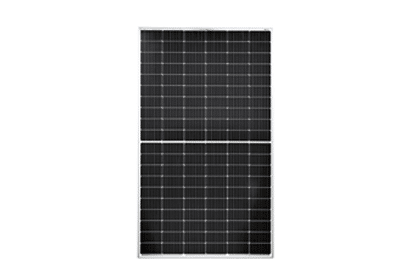

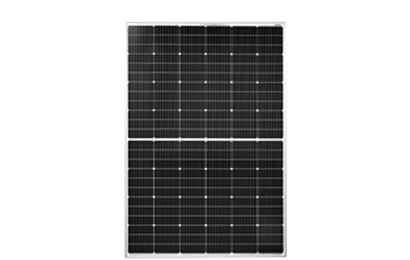

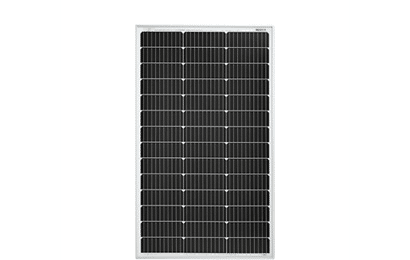

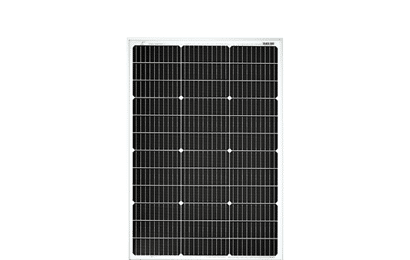

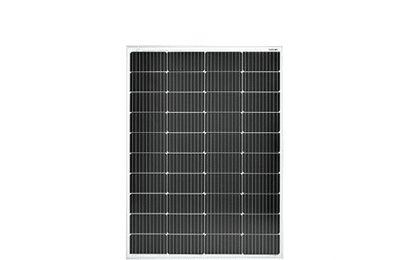

| SGM2-65W | SGM2-90W | SGM2-100W | SGM2-120W | SGM2-135W | SGM2-150W | SGM2-180W | SGM2-220W | SGM2-270W | SGM2-360W | SGM2-450W | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL |  |  |  |  |  |  |  |  |  |  |  |
| Cell Efficiency | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% |
| Max Power Voltage | 20.9V | 20.9V | 24.4V | 19.1V | 20.9V | 23.2V | 20.9V | 34.8V | 20.9V | 41.8V | 34.8V |
| Max Power Current | 3.12A | 4.31A | 4.10A | 6.29A | 6.46A | 6.47A | 8.62A | 6.33A | 12.92A | 8.62A | 12.94A |
| Open Circuit Voltage | 24.5V | 24.5V | 28.5V | 22.3V | 24.5V | 27.1V | 24.5V | 40.7V | 24.5V | 48.9V | 40.7V |
| Short Circuit Current | 3.27A | 4.52A | 4.30A | 6.60A | 6.78A | 6.79A | 9.04A | 6.64A | 13.56A | 9.04A | 13.58A |
| Cell type | 3*12 | 3*12 | 3*14 | 3*11 | 3*12 | 4*10 | 4*18 | 4*15 | 4*18 | 6*24 | 6*20 |
| Solar cells | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 | Mono cell 182 |
| Cell Dimension | 182*46.33mm | 182*61.77mm | 182*61.77mm | 182*92.65mm | 182*92.65mm | 182*92.65mm | 182*61.77mm | 182*92.65mm | 182*92.65mm | 182*61.77mm | 182*92.65mm |
| Weight | 4.9kg | 5.9kg | 6.7kg | 6.9kg | 7.7kg | 8.2kg | 10.1kg | 11.3kg | 12.3kg | 16.1kg | 18.2kg |
| Module dimension | 625*590*25mm | 815*590*30mm | 945*590*30mm | 1090*590*35mm | 1185*590*35mm | 1000*770*35mm | 1200*770*35mm | 1470*770*35mm | 1765*770*35mm | 1600*1134*40mm | 1960*1134*40mm |
| Frame | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy | Anodized aluminium alloy |
| The maximum system voltage | 600V DC(IEC) | 600V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) | 1000V DC(IEC) |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 |
| Back sheet | PET | PET | PET | PET | PET | PET | PET | PET | PET | PET | PET |
| Output power tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Operating Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
| Color | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back | Silver frame with white back |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
| Customize service | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | ||||||||||
More panels, more power -

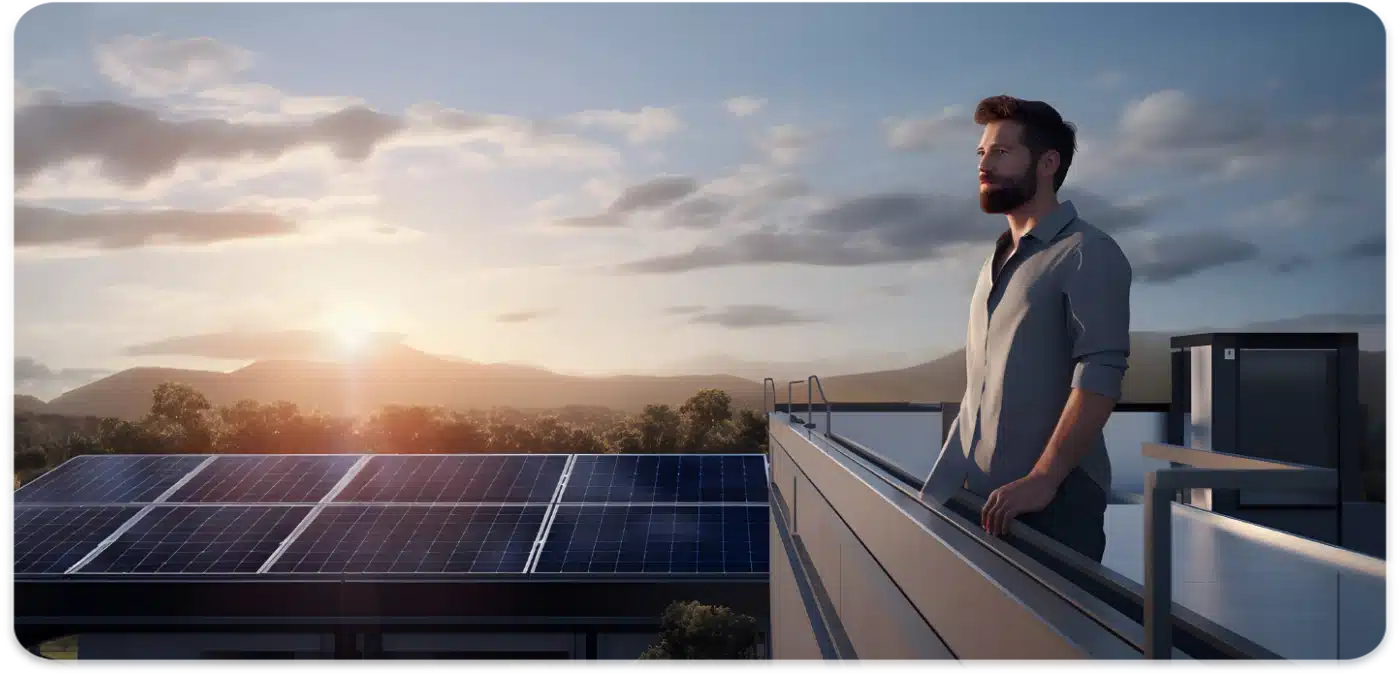

Sungold rigid solar panels on metal roof
Sungold designs and builds the most economical off grid solar system solutions that allow people to thrive off grid.
Sungold rigid solar panels on metal roof are designed in a more compact size, allowing you to install more panels on your roof to generate more power. High-quality A-grade monocrystalline solar cells are highly efficient.
Highly efficient photovoltaic power source for RVs, campers, cabins, boats, and home backup power systems.
Rigid solar panels on metal roof with up to 5400 Pa snow load and 2400 Pa wind load provide excellent durability in harsh environments.
The Sungold Story
Founded in 2008, Sungold not only manufactures panels to the highest quality standards but is also at the forefront of proprietary R&D innovations. Our goal is to provide the world with clean, safe, and affordable solar energy.
Sungold is a leading international provider of off grid solar system solutions with a presence in dozens of the world’s most dynamic markets. Unleash your energy independence by installing a solar system with our high-quality, cost-effective solar products, including solar panels, charge controllers, inverters, and other required installation accessories. We prioritize product quality and service. When you encounter any problems during the process, we provide a quick response service to help you DIY your solar system with ease.
