SGSP Series
SGSP series rigid sunpower solar panels are made of Sunpower solar cells with high conversion efficiency.
High Conversion Efficiency
Long Service Life
Easy to Install
Strong Resistance to Impact
Sunpower Solar Cell
Mature, durable and stable.
SUNGOLD SGSP SERIES RIGID SOLAR PANEL
High-efficiency output
Sungold SGSP series sunpower solar panels are made of Sunpower solar cells. The panels can still reach over 90% conversion efficiency after 10 years of use.

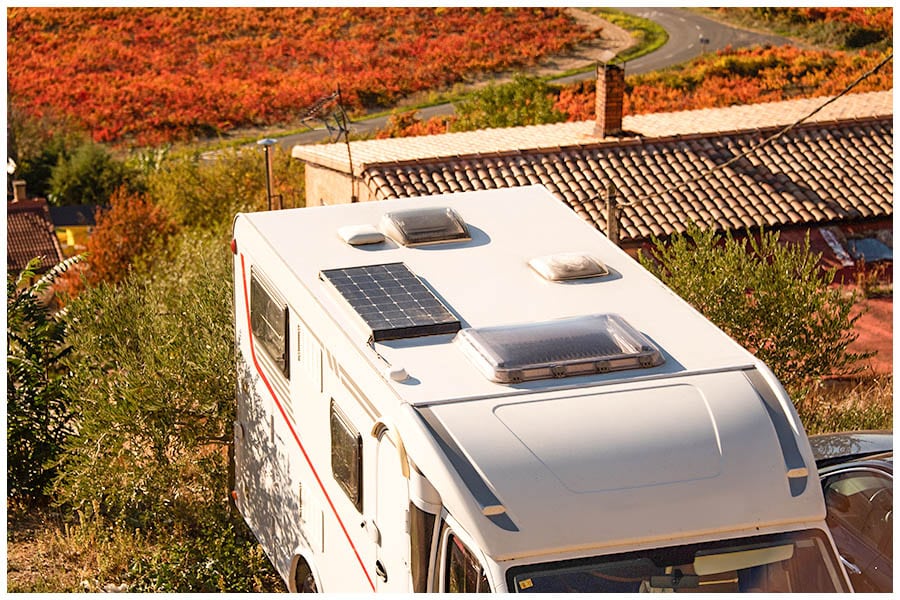

Suitable for large off-grid systems

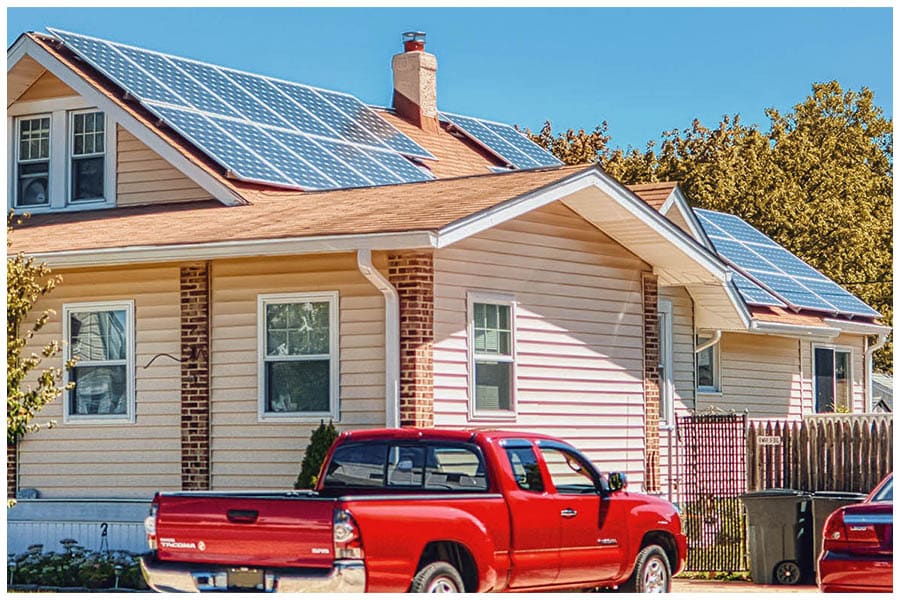

The SGSP Series sunpower solar panels are best suited for residential, commercial use, and large off-grid systems. It is the best solution for large grid-tied and off-grid projects.

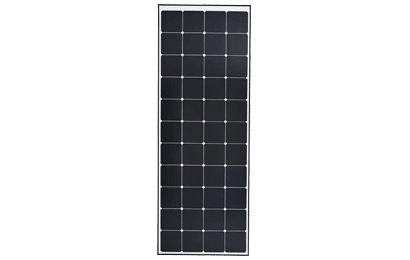

Fixed Sunpower Solar Panels SGSP Series
Sungold SGSP Series Rigid Sunpower Solar Panel is suitable for residential, commercial, and large off-grid systems as well as large projects with grid-tied and off-grid projects.
Understand The Technology
The performance of the SGSP series rigid solar panel was tested under the standard test
Easy to install
Sungold SGSP Series rigid solar panels are compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel allow for quick installation and fastening.
Stable performance and long service life
Sungold SGSP Series rigid solar panels are reinforced with tempered glass and aluminum frames. The service life is up to 25 years.
Stronger resistance
Stronger resistance to extreme wind and snow, and can adapt to -10 degrees Celsius weather. Even in extreme weather, you don't have to worry about the quality of the solar panel being affected.
Certifications

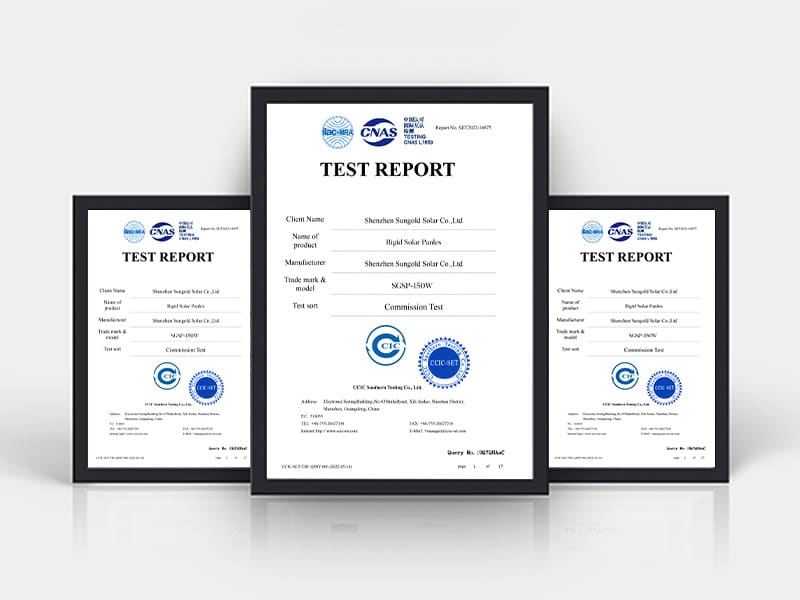

SGSP SERIES TESTING
SGSP series has been tested for IEC 61215, including the product flammability test, the fire test, the visual inspection, etc. SGSP series solar panels were tested for wiring cables, connectors, junction boxes, solar backsheets, PV module interiors, bypass diodes, materials, and other parts. The performance of SGM series solar panels is excellent.
Video
introduction
SGSP Series solar panels are best suited for residential, commercial use, and large off-grid systems. Sungold Solar is one of the most trusted wholesale suppliers of solar panels.

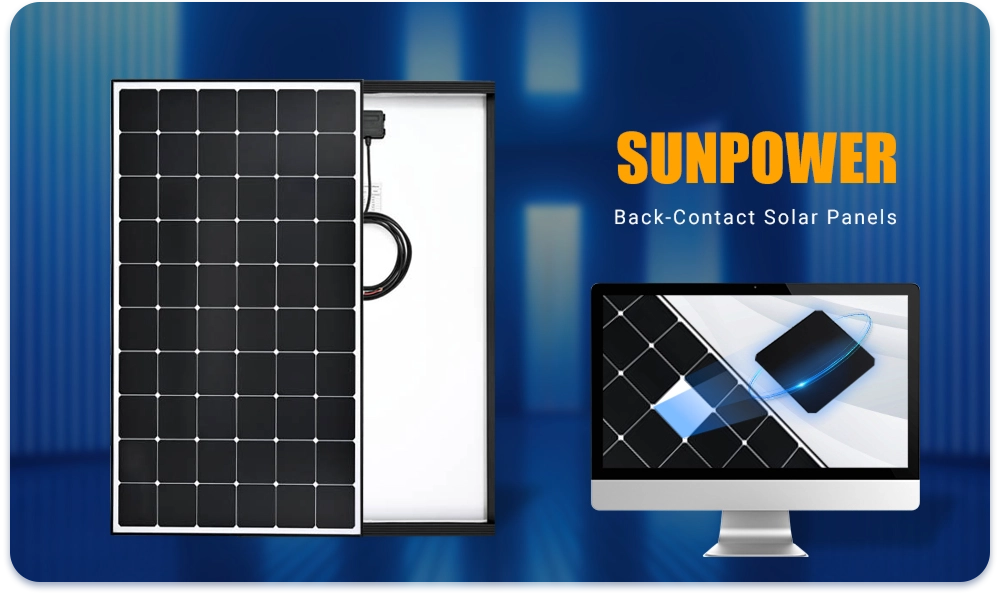

SunPower Back-Contact Solar Panels
Sungold SunPower solar panels are designed differently, and it has been proven that traditional solar panels can lose some of their power over time due to corrosion and damage, even in the harshest conditions. The unique design of SunPower solar panels eliminates many of the causes of traditional panel failures.
For instance, we know that 41% of field failures are caused by issues around the panels, such as discoloration, cell breakage, PID, delamination, and defective back sheets. However, the SGSP series can effectively avoid such issues. Therefore, your panels and the cost savings they provide will continue to perform effectively.

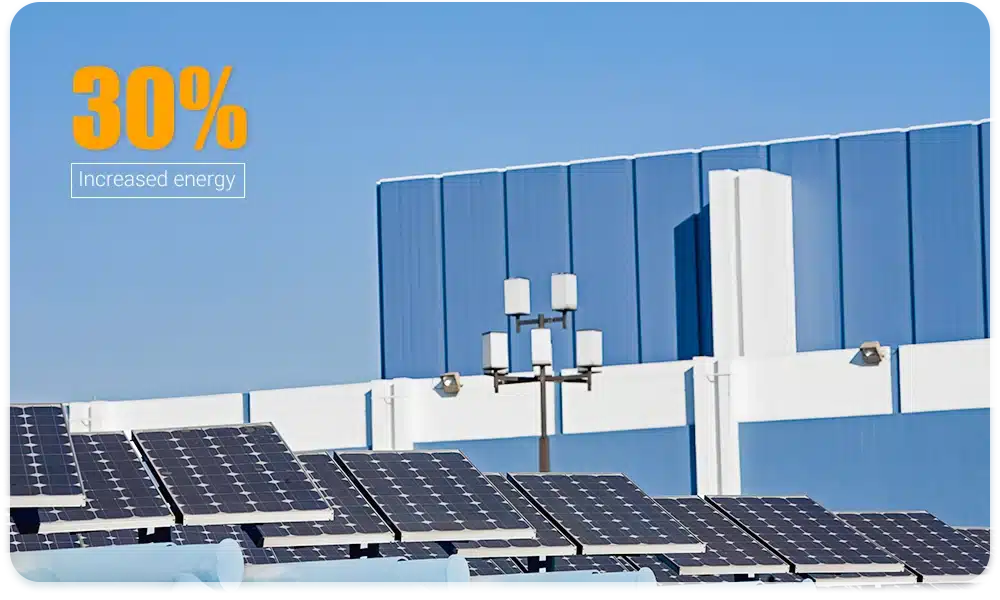

Efficient Solar Panels
As the most efficient solar panels in the solar industry, SunPower solar panels can generate more energy from the available roof space compared to traditional solar panels. Over time, higher efficiency panels translate to more energy production and greater savings. Higher efficiency = more energy. Within 25 years, energy production in the same space can increase by up to 30%.

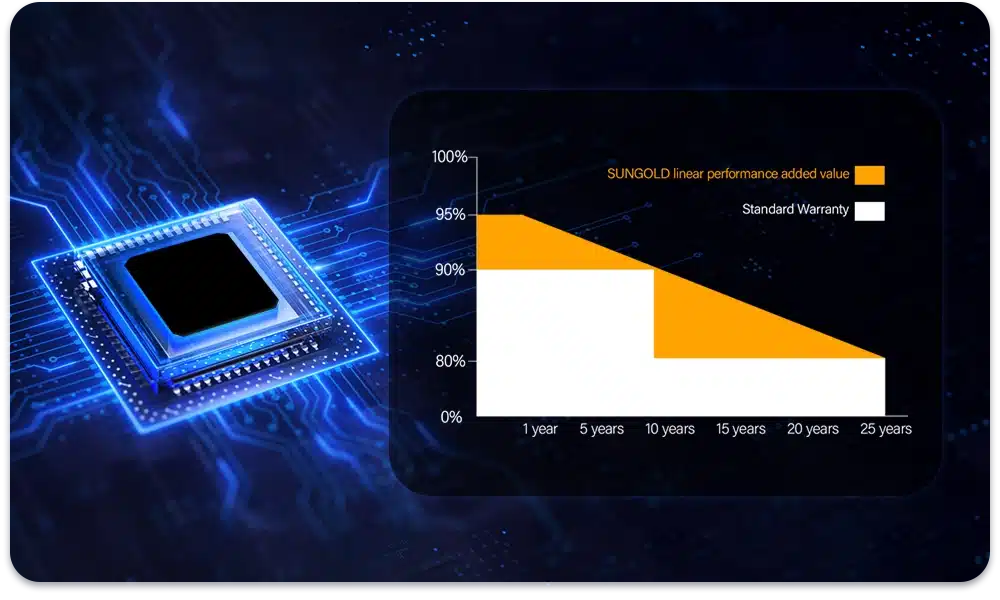

Unparalleled Reliability
All Sungold SunPower rigid solar panel come with a 25-year Peace of Mind Warranty and a 25-year Performance Warranty, offering the best coverage in the industry. The first residential solar panel to exceed 200 watts of output, it delivers over 60% more energy in the same roof space over the first 25 years compared to traditional solar. The patented metal base of SunPower cells allows them to bend without breaking under harsh conditions.

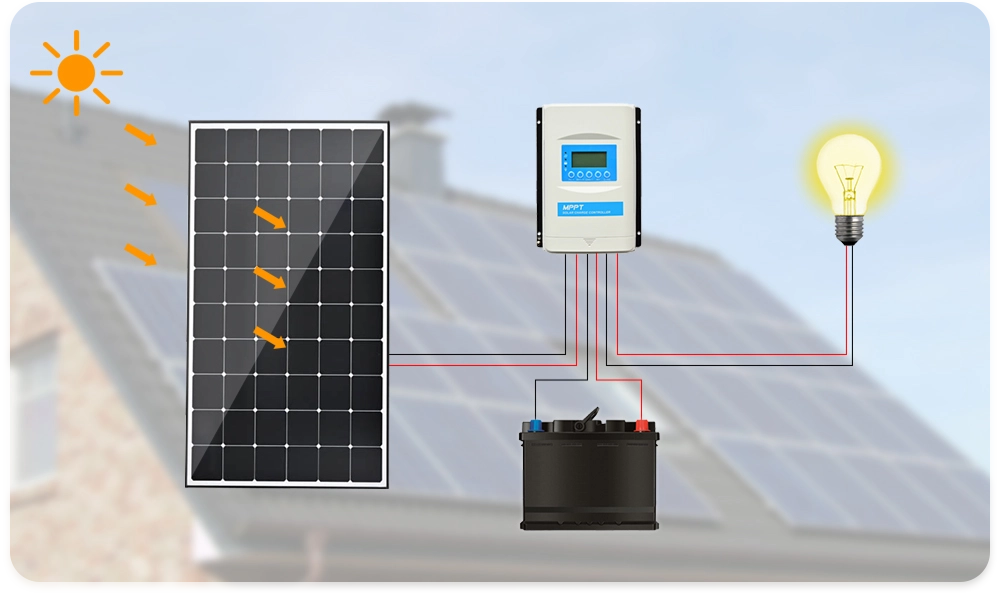

How Solar Panels Work
When electrons flow unidirectionally around a circuit, solar panels generate direct current (DC) electricity. It’s similar to a battery powering a light bulb. Electrons move from the battery’s negative terminal to the light bulb and then return to the battery’s positive terminal.
In alternating current (AC), electrons are pushed and pulled, occasionally changing direction, much like the cylinders in a car engine. When coils rotate near magnets, generators produce AC electricity. There are various sources of energy that can “turn the handle” of a generator, such as natural gas or diesel fuel, hydroelectric power, nuclear energy, coal, wind power, or solar energy.
Our solar panels do not use metal paste lines for connections. This not only enhances the appearance but also avoids common issues and power loss in panels caused by the vulnerability of metal connections to weather and temperature fluctuations.
Product Specifications

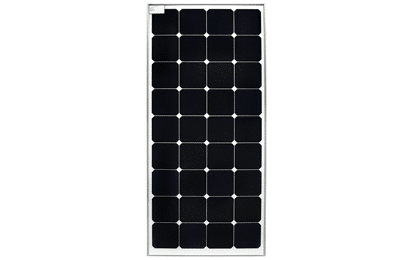

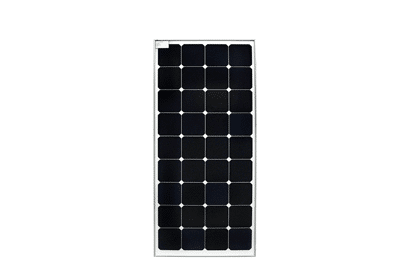

| SGSP-40W | SGSP-45W | SGSP-60W | SGSP-65W | SGSP-90W | SGSP-120W | SGSP-135W | SGSP-150W | SGSP-165W | |
|---|---|---|---|---|---|---|---|---|---|
| MODEL |  | | | | |  | |  | |
| Cells efficiency | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% | >24.40% |
| Max Power Voltage | 19.8V | 22.3V | 19.8V | 22.3V | 22.3V | 19.8V | 19.8V | 24.8V | 27.3V |
| Max Power Current | 2.03A | 2.02A | 3.04A | 2.92A | 4.04A | 6.07A | 6.06A | 6.05A | 6.05A |
| Open Circuit Voltage | 23.3V | 26.2V | 23.3V | 26.2V | 26.2V | 23.3V | 26.2V | 29.2V | 32.1V |
| Short Circuit Current | 2.14A | 2.14A | 3.21A | 3.09A | 4.28A | 6.42A | 6.42A | 6.41A | 6.41A |
| Module dimension | 540*395*25mm | 540*440*25mm | 560*540*25mm | 625*540*25mm | 835*540*30mm | 1060*540*35mm | 1190*540*35mm | 1315*540*35mm | 1445*540*35mm |
| Cell type | SUNPOWER 3.75W | SUNPOWER 3.76W | SUNPOWER 3.77W | SUNPOWER 3.78W | SUNPOWER 3.79W | SUNPOWER 3.80W | SUNPOWER 3.81W | SUNPOWER 3.82W | SUNPOWER 3.83W |
| Solar cells | 4*8 | 4*9 | 4*8 | 4*9 | 4*18 | 4*8 | 4*9 | 4*10 | 4*11 |
| Cell Dimension | 125*40.7mm | 125*40.7mm | 125*62.5mm | 125*62.5mm | 125*40.7mm | 125*125mm | 125*125mm | 125*125mm | 125*125mm |
| Weight | 2.52KG | 2.76KG | 3.41KG | 3.76KG | 5.09KG | 6.51KG | 7.24KG | 7.95KG | 8.68KG |
| Frame | Anodized aluminium alloy | ||||||||
| The maximum system voltage | 600V DC | 1000V DC | |||||||
| Connectors | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX016 PV-XC803 | PV-HX016 PV-XC803 | PV-JB018-3 PV-XC802 | PV-JB018-3 PV-XC802 |
| Back sheet | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET | White FPE/Black PET |
| Output power tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Operating Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Warranty | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years |
| Customize Service | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | ||||||||
