SGSP-165W

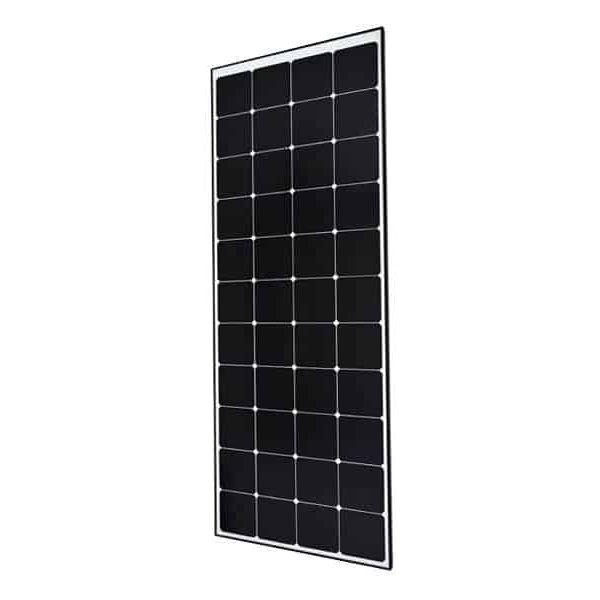

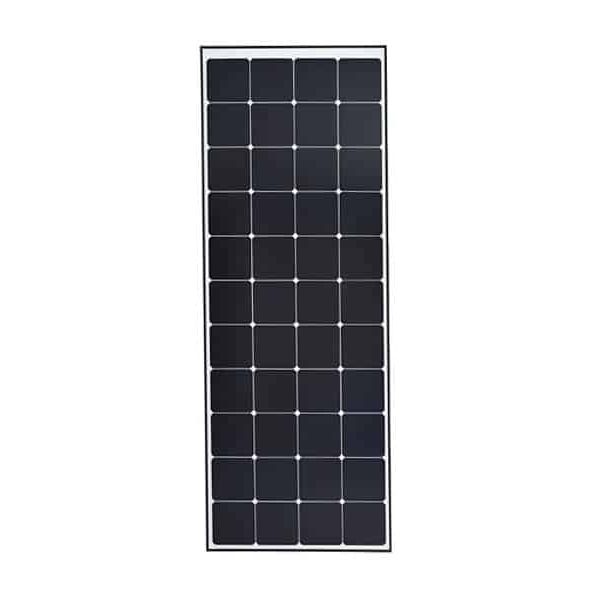

Sungold 165w solar panel SGSP-165W

SGSP series solar panel uses the most mature product design, the overall product has been available for many years, has been tested for a long time environment, and is the most stable design.
SGSP series solar panel is made with high-efficiency SunPower solar cells. SunPower solar cell Classic IBC battery process used by SunPower. There is no grid line on the front of the battery to avoid the shading loss of the metal electrode, maximize the absorption of sunlight, and maximize the conversion efficiency. The conversion efficiency is up to 24.40%

SGSP series solar panel meets different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

make the most of every sunlight
Features
Higher conversions
Easy to connect and install
Durable
Mature
Higher conversions

SGSP series solar panel uses Sunpower cells with a conversion rate of 24.4%.
SunPower uses the classic IBC cell process. The front side of the cell has no grid line shading, avoiding the metal electrode shading loss, maximizing the absorption of sunlight, and maximizing the conversion efficiency.

Easy to connect and install

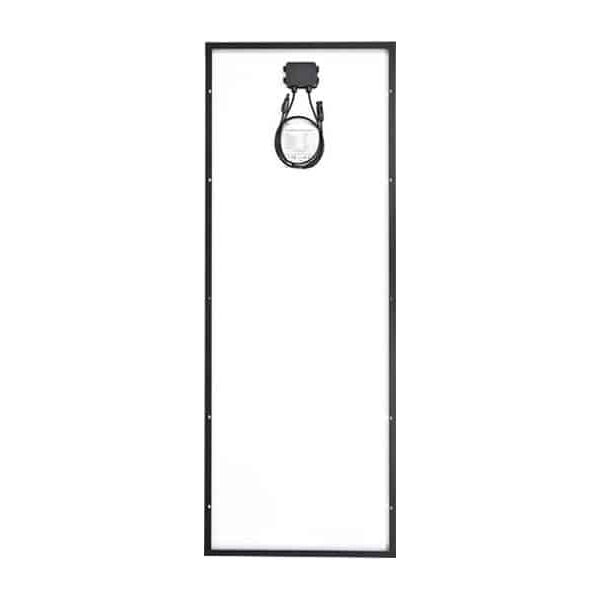

A perfectly waterproof MC4 connector is available at the output of the solar panel to ensure the electricity connection. The sturdy aluminium frame can be drilled to secure it to the boat.
Durable

SGSP 165W solar panels have an IP67 waterproof rating, so the whole product will not be affected by rain or water, and you can leave the product outdoors for a long time without worrying about any quality problems.

Mature

SGSP series solar panels have an IP67 waterproof rating, so the whole product will not be affected by rain or water, and you can leave the product outdoors for a long time without worrying about any quality problems.

Applications

RV

Home

Yacht

Frequently Asked Questions
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP solar glass panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Specifications

Maximum power(Pmax)

165W

Open-circuit voltage(Voc)

32.1V

Voltage at Pmax(Vmp)

27.3V

Short-circuit current(Isc)

6.41A

Current at Pmax(Imp)

6.05A

Cells efficiency(%)

24.40%

The maximum system voltage

1000V DC(IEC)

Power temperature coefficient

-0.27%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

1445*540*35mm

Weight

8.68kg

Warranty

10 years
