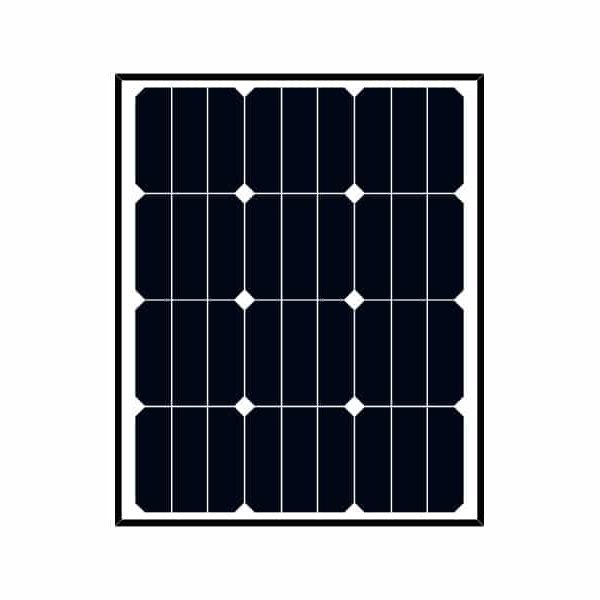

Sungold Trail Camera Solar Panel SGSP-45W
SGSP series meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.
Use waterproof MC4 connectors to ensure electrical connection. Meet the needs of different applications. Ground-mount compatible. Compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel for quick installation and fixing.
10 years warranty, 25 years service life
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life. EL tested solar modules; no hot-spot heating . TPT back sheet to ensures smooth performance over a long period of time.
Use it for your RV when camping, or during beach trips with the family, either way, this crystalline panel provides you with the most efficiency per space.
RV
Home
Yacht
Maximum power(Pmax)
45W
Open-circuit voltage(Voc)
26.2V
Voltage at Pmax(Vmp)
22.3V
Short-circuit current(Isc)
2.14A
Current at Pmax(Imp)
2.02A
Cells efficiency(%)
24.40%
The maximum system voltage
600V DC(IEC)
Power temperature coefficient
-0.27%/℃
Voltage temperature coefficient
-0.236%/℃
Current temperature coefficient
0.058%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Size
540*440*25mm
Weight
2.76kg
Warranty
10 years
