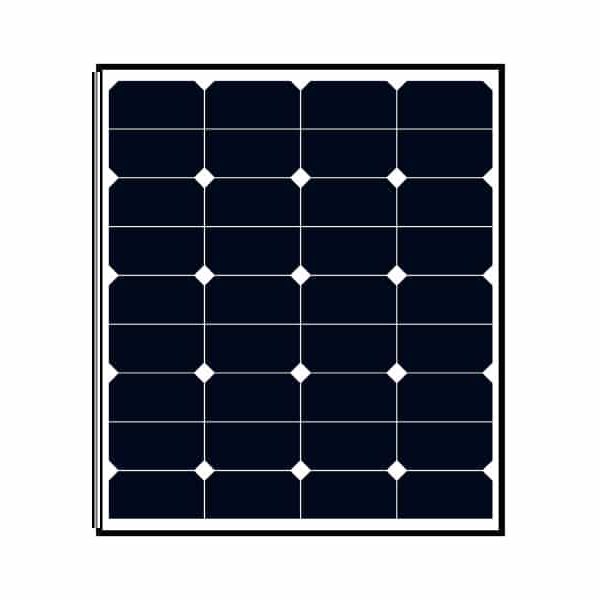

Sungold solar panels by the pallet SGSP-65W
SGSP series meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.
SGSP solar glass panel is the most mature design, the connection between the glass panel and the aluminum frame is encapsulated with solar silicone, which will not let any water vapor in, so you can put the product to work outdoors for a long time without worrying about any quality problems.
Ideal for a variety of applications
Use it in your RV while camping or on a trip to the beach with the family – either way, this panel gives you maximum efficiency in every space.
Use it in your RV while camping or on a trip to the beach with the family – either way, this panel gives you maximum efficiency in every space.
RV
Home
Yacht
Maximum power(Pmax)
65W
Open-circuit voltage(Voc)
26.2V
Voltage at Pmax(Vmp)
22.3V
Short-circuit current(Isc)
3.09A
Current at Pmax(Imp)
2.92A
Cells efficiency(%)
24.40%
The maximum system voltage
600V DC(IEC)
Power temperature coefficient
-0.27%/℃
Voltage temperature coefficient
-0.236%/℃
Current temperature coefficient
0.058%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Size
625*540*25mm
Weight
3.76kg
Warranty
10 years
