What are the different kinds of solar panel connectors? Solar energy has turned into a strong and supportable wellspring of power, adding value to a greener and all the more harmless to the ecosystem world. Solar panels are at the core of this transformation, catching sunlight and changing over it into electrical energy. For these solar modules to work more efficiently, they should be associated with a wide range of parts and components, and that is where solar panel connectors come in.
Solar panel connectors are fundamental for proficient power transmission from the solar panel to the remainder of the photovoltaic (PV) components.
In this article will explore the different types of solar panel connectors, their attributes, and how they contribute to a solar power system’s overall performance and longevity.
Solar Panel Connectors
To make a secure and well-grounded electrical connection amongst solar panels, the device used is known as solar panel connector. They are also used to loop together solar panels and other components of a photovoltaic (PV) system, like inverters, charge controllers, and batteries. Solar panel connectors guarantee efficient energy transfer and minimize any power loss in the system.
To assist you with selecting the suitable solar connectors for your solar system, we have gathered a rundown of various sorts of solar connectors usually utilized:
- MC4 connectors
- MC3 connectors
- Amphenol H4 connectors
- Tyco Solarlok connectors
MC4 Connectors
MC4 type solar panel connector is a most popular type and widely used solar connector and nowadays almost all the solar panels module level devices such as microinverters and power optimizers come with such type of connectors.
The letter MC in MC4 stands for “Multi-Contact” which represents the brand name of the manufacturer that became associated with the product, while “4” refers to their 4 millimeter size.
MC4 solar panel connectors are made from UV resistant materials and are IP68 rated, meaning they are fully waterproof and perfect for outdoor use.The Sungold Hi Power series portable solar panels uses MC4 connectors. The solar panels are not only waterproof, but also light out of the water. About what is an IP rating? What is IP67 waterproof? and other series of articles can also be viewed in Sungold’s previous blog posts.
Talking about the anatomy of the MC4 solar panel connector, they have five parts: the main body or housing, the metal connecting plate, a safety foil or seal, a compression sleeve, strain reliever and a terminal cover. They consist of male and female connector, that are designed for safe and secure connections between solar panels and other solar energy system components.
The question is when and where do we use MC4 solar panel connectors? So, it depends on the size of solar panels. Smaller solar panels under 20 watts, as they don’t produce high currents and mostly work as a stand-alone-units, so they don’t require MC4 type connector. However, for the larger size solar panels we need MC4 solar panel connectors for standardized termination in arrays that handle higher voltages.
Some of the characteristics of MC4 type solar panel connectors are their compatibility with most solar panels and inverters and are easy installation. They are rated for high currents, typically up to 50 Amperes.
MC4 type solar connectors are used in residential, commercial, and utility scale solar installations. Due to their ease of installation, they are commonly used in off grid solar systems and portable solar setups.
Some of the key features of MC4 connectors include:
- Rated Voltage: Up to 1,500 V DC.
- Rated Current: Up to 50 A.
- Operating Temperature Range: -40°C to 90°C.
- Wire Size Compatibility: 10 to 12 AWG (American Wire Gauge).

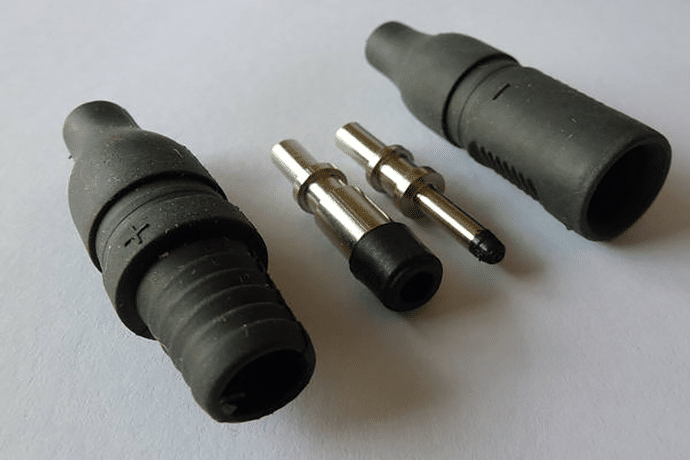

MC3 Connectors
MC3 type solar panel connector was the most popular connector in the past years, being a really reliable and simple option manufactured by the “Multi-Contact”. It offers a cost-effective alternative to MC4 and was once a go-to option for solar panel installations but is now replaced by the new and more improved MC4 connectors.
MC3 solar connector has a 3-millimeter single contact cylindrical plug for the male connectors and a socket shell design for the female connectors. The male and female connectors indicate the MC3 connector’s positive and negative terminals, which make it easy for the installers to know and identify each terminal and cable of the system.
This type of solar panel connector was designed for smaller solar panels and solar systems, with a current rating of up to 30 amperes. They have a compact design, which makes them ideal for smaller-scale installations. For easy installation they have a feature of snap-in locking mechanism but its less secure than the newer locking system.
MC3 solar connectors are often used in residential and small scale commercial solar systems, especially when cost saving is a priority.
Some of the key features of MC3 connectors include:
- Rated Voltage: Up to 1,000 V DC
- Rated Current: Up to 30 A
- Operating Temperature Range: -40°C to 85°C
- Wire Size Compatibility: 12 to 14 AWG

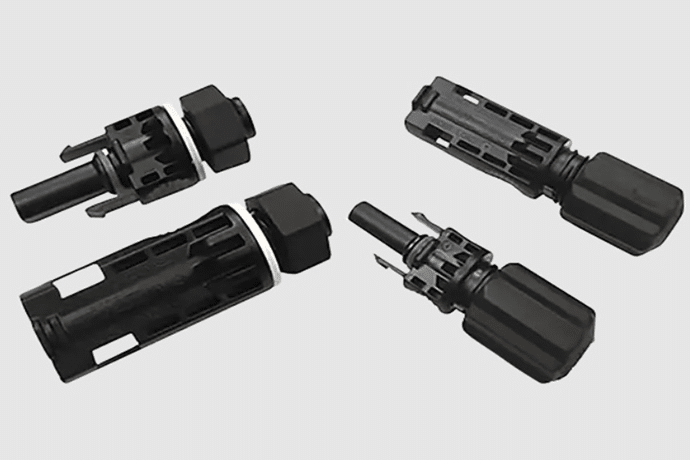

Amphenol H4 Connectors
Amphenol H4 type solar connectors are another popular choice for solar panel installations, offering high current capacity and excellent environmental protection They are developed by Amphenol Industrial Solar Technologies
These solar panel connectors take special care of all sections of solar energy systems and brag a really noteworthy 52A rating.
A champion property of the H4 series is its quick, easy, and secure NEC 2008-compliant locking system. These connectors are among the most exceptional solar panel connectors with secure snap-lock mating. In addition, they satisfy NEC 2008 guidelines from the get-go, with no additional parts required.
These connectors have an IP67 waterproof rating and a 25years UV rays and ozone resistance. They are also resistant to hydrolysis, oil, chemicals, abrasion and corrosion.
They even withstand extremely harsh weather conditions such as desert and coastal areas.
They are often used in larger solar systems and are compatible with a wide range of solar panels.
Some key features of Amphenol H4 connectors include:
- Rated Voltage: Up to 1,500 V DC.
- Rated Current: Up to 65 A.
- Operating Temperature Range: -40°C to 90°C.
- Wire Size Compatibility: 10 to 12 AWG.

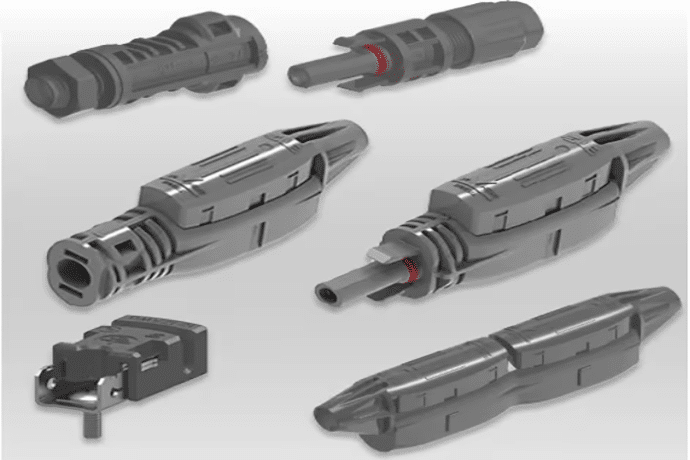

Tyco Solarlok connectors
Tyco solarlok connectors are old but special solar panel connectors manufactured by TE connectivity or Tyco electronics. Past back in the year 2000, these connectors were in a trend for a good reason. They are designed for easy installation and maintenance, having a feature of simple push-in design that requires no special tools for assembly.
Tyco Solarlok connectors were used in residential, commercial, and industrial solar system, as well as thin-film and flexible solar panels.
Some of the key features of Tyco SolarLok connectors are:
- Rated Voltage: Up to 1,000 V DC
- Rated Current: Up to 40 A
- Operating Temperature Range: -40°C to 90°C
- Wire Size Compatibility: 10 to 12 AWG
All in all, with regards to choosing the right solar panels and solar accessories for your environmentally friendly power projects, it’s significant to collaborate with a reputable and reliable manufacturer. One such organization that stands out in the industry is Sungold Solar Company. With our commitment to quality, innovation, and consumer satisfaction, we have earned a strong standing in the sun-oriented market.
If you are in the market for the lookout for solar panels whether portable solar panels, flexible type, solar panels connectors, and other solar accessories, we enthusiastically suggest thinking about Sungold solar as your trusted supplier. Our items are known for their durability, proficiency, and compliance with industry standards. By choosing Sungold Solar, you’re not only investing in cutting-edge technology but also in a sustainable future.
Make the intelligent choice today and power your solar endeavors with Sungold solar’s outstanding products. For more information about solar panel connector types, you can also visit Sungold’s previous articles.
FAQ: Q&A about solar panel connectors
1. What is the significance of the color of the rings on Connectors for solar panels?
This is not absolute, the significance of the rings on the connectors for solar panels is only for the convenience of the installer.
2. What are the main types of solar panel cable assemblies on the market?
There are five main popular solar connector companies in the market, such as MC, Tyco, Amphenol, Radox and Wieland. MC and Tyco have the largest share in the US solar panel cable market.
3. What is the significance of using solar panel connectors or solar cable?
Solar panel connectors are one of the main distinguishing features of solar panel modules. The use of different solar cables is to prevent misconnections. The solar PV industry uses many types of solar panel connectors or standard non-connectors junction boxes.
4. Notes on using solar connectors and couplers
Keep in mind that the positive/negative labels don’t necessarily mean anything other than to help the installer not forget which cable came from where. It’s just a sign.
Each solar panel connector requires a cable coupler.
The crimp cable coupler is one of the most important parts of connecting modules in a solar PV system. If not made properly, resistance can significantly reduce efficiency.
A tightening/unlocking tool is required to connect and disconnect the coupler.
Concerned about connector reliability issues, the Department of Energy has issued documents and stated that there is a general lack of connector design guidelines for handling of terminals inserted in module connections and junction boxes or during installation.
5. Which is the most popular solar connector available?
Solar connectors are used to connect solar panels to other panels, batteries, and junction boxes. The most common and popular type of solar connector is the MC4 connector, a standardized single-pole connector with built-in strain relief and interlocks.
These interlocks ensure a secure fit between plug and socket and prevent accidental release. Because they are often used outdoors, MC4 connectors are weatherproof and are paired with double-insulated, UV-resistant cables.
Branch connectors help to connect solar panels in parallel or series, for example, to connect multiple panels to a single cell to increase power.
