What is a Kilowatt-hour (kWh)?

Many people may confused by how to convert kWh to amps when selecting solar panels. A kilowatt-hour (kWh) is a measure of energy consumption. It represents the amount of energy used by a device over time. Imagine a 100-watt light bulb burning for 10 hours; it uses 1 kilowatt-hour of electricity. This is like saying, “I ran my light bulb for 10 hours, and it used up a certain amount of energy.”
In simpler terms:

• Kilowatt (kW): This measures power. Think of it like the speed of a car. Higher kW means more power.
• Hour (h): This measures time.
• Kilowatt-hour (kWh): This combines power and time, telling you how much energy is used. It’s like saying, “I drove my car at 100 km/h for 10 hours, so I traveled 1000 kilometers.”

What is an Ampere (Amp)?

An ampere, or amp, measures the flow of electric current. It’s like counting the number of cars passing a point on a highway every second. More amps mean more current is flowing through the wire.
In simpler terms:

• Amp (A): This measures the flow of electricity. Think of it as how many cars are passing by on a road each second.

How to Convert kWh to Amps

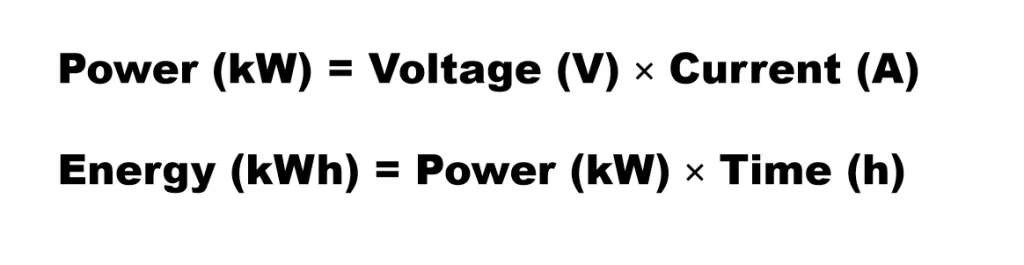

To understand how to convert kWh to amps, we need to know the relationship between power (kW), voltage (V), and current (A).

Given an appliance that uses 1 kWh over an hour at 120 volts:

• Power is 1 kW.
• Time is 1 hour.

From the formula Current (A) = Power (kW) / Voltage (V):
Current(A)=1kW / 120V = 8.33A
Current (A) = 1 kW / 120 V = 8.33 A
Current(A)= 1kW / 120V = 8.33A
This tells us that if an appliance uses 1 kWh of energy at 120 volts, the current flowing through it is 8.33 amps.

Examples of kWh and Amps Conversion

Example 1: Powering a Television

1. Determine Energy Use:Suppose your television uses 100 kWh per year.To find the daily energy use:100 kWh / 365 days ≈ 0.27 kWh/day
2. Find Daily Current Requirement:Assume the television operates at 120 volts.Calculate the average power usage:Power (kW) = 0.27 kWh / 24 h = 0.01125 kW

   Convert power to current:

   Current (A) = 0.01125 kW / 120 V = 0.09375 A

3. Match with Solar Panel Output:If you have a 200W solar panel, operating for 5 peak sunlight hours:Energy produced = 200 W × 5 h = 1000 Wh = 1 kWhThe panel produces more than enough energy to power the TV, which uses 0.27 kWh per day.

Example 2: Powering a Laptop

1. Determine Energy Use:Assume your laptop uses 50 kWh per year.To find the daily energy use:50 kWh / 365 days ≈ 0.14 kWh/day
2. Find Daily Current Requirement:Assume the laptop charges at 19 volts (a common charging voltage for laptops).Calculate the average power usage:Power (kW) = 0.14 kWh / 24 h = 0.00583 kW

   Convert power to current:

   Current (A) = 0.00583 kW / 19 V = 0.307 A

3. Match with Solar Panel Output:If you have a 100W solar panel, operating for 5 peak sunlight hours:Energy produced = 100 W × 5 h = 500 Wh = 0.5 kWhThe panel can easily produce the 0.14 kWh needed for the laptop each day.

Example 3: Powering an Air Conditioner

1. Determine Energy Use:Suppose your air conditioner uses 1500 kWh per year.To find the daily energy use:1500 kWh / 365 days ≈ 4.11 kWh/day
2. Find Daily Current Requirement:Assume the air conditioner operates at 240 volts.Calculate the average power usage:Power (kW) = 4.11 kWh / 24 h = 0.171 kW

   Convert power to current:

   Current (A) = 0.171 kW / 240 V = 0.713 A

3. Match with Solar Panel Output:If you have a 300W solar panel, operating for 5 peak sunlight hours:Energy produced = 300 W × 5 h = 1500 Wh = 1.5 kWhYou would need multiple panels to meet the air conditioner’s daily requirement of 4.11 kWh.

Example 4: Powering a LED Light Bulb

1. Determine Energy Use:Suppose your LED light bulb uses 10 kWh per year.To find the daily energy use:10 kWh / 365 days ≈ 0.027 kWh/day
2. Find Daily Current Requirement:Assume the light bulb operates at 120 volts.Calculate the average power usage:Power (kW) = 0.027 kWh / 24 h = 0.001125 kW

   Convert power to current:

   Current (A) = 0.001125 kW / 120 V = 0.009375 A

3. Match with Solar Panel Output:If you have a 50W solar panel, operating for 5 peak sunlight hours:Energy produced = 50 W × 5 h = 250 Wh = 0.25 kWhThis panel produces more than enough energy to power the light bulb, which uses 0.027 kWh per day.

Summary

These examples show how understanding kWh and amps helps you choose the right solar panel setup for different devices. By calculating the daily energy use and converting it to current, you can ensure your solar panels provide sufficient power to meet your needs.

• kWh measures energy consumption over time.
• Amps measure the flow of electric current.
• To convert kWh to amps, use the relationship between power, voltage, and current.
• For solar panel selection, match the energy needs of your appliances with the output capabilities of the solar panels.

With this knowledge, you can confidently choose the right solar panel setup to power your devices, making your journey into solar energy smooth and successful.
